DP 2.1 UHBR20: Verifying Real Bandwidth on Gaming Monitors

How to verify UHBR20 on a monitor starts with one simple rule: do not trust the DP 2.1 label by itself. You want the exact UHBR20 tier named on the spec sheet, plus a cable and port chain that can carry that mode without guesswork. That matters most if you are targeting uncompressed 4K at very high refresh rates.

What UHBR20 Actually Means

UHBR20 is the highest DisplayPort bandwidth tier in the DP 2.1 family, with 20 Gbps per lane and 80 Gbps total across four lanes. VESA’s UHBR certification announcement explains the tier structure and notes that lower UHBR levels can still sit under the broader DP 2.1 label, which is why the label alone is not enough to verify real capacity.VESA’s UHBR certification overview

For buyers, the practical question is not “Does it say DP 2.1?” It is “Does this specific monitor, in this specific mode, actually support UHBR20 end to end?” That distinction matters because product pages often use the broader standard name while leaving out the tier that tells you whether the link really has 80 Gbps headroom.

A useful decision sentence is this: if you are shopping for 4K 240 Hz or similar high-refresh modes and want the least compression dependence, how to verify UHBR20 on a monitor is worth checking carefully; if you are buying for 4K 144 Hz or below, the interface tier may matter less than panel quality, HDR behavior, or price.

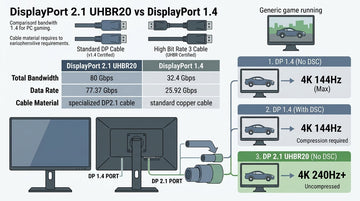

The bandwidth ladder below shows why the tier matters.

How to Check the Spec Sheet

Start with the exact wording. If the page only says DisplayPort 2.1, that is not the same as saying UHBR20. Look for a phrase such as UHBR20, DP80, or 80 Gbps native operation. If none of those appear, treat the listing as unconfirmed rather than assumed.

Next, check the native mode language. A trustworthy spec page should tell you the maximum resolution and refresh rate for the mode you care about, and it should make clear whether DSC is required to reach that mode. If the listing only shows the final resolution and refresh rate but never names compression, you still do not have proof of native UHBR20.

Then verify that the DisplayPort version and the supported display mode are shown together in a way that matches your GPU output. That sounds basic, but it prevents the most common mistake: pairing a monitor that advertises a headline mode with a cable chain that quietly falls short.

A second decision sentence helps here: if the page names UHBR20 and also states the mode you want can run natively, you have a strong signal; if the page only names DP 2.1 or leaves the mode/compression path vague, treat it as a check-before-buying case.

A simple verification sequence works best:

1. Find the exact link tier name on the monitor page.
2. Check the maximum mode you plan to use.
3. Look for any DSC note tied to that mode.
4. Confirm the cable class before checkout.

That sequence is boring, but it is usually faster than trying to decode forum posts after the return window closes.

Native Bandwidth vs. DSC

For most buyers, DSC is not a deal breaker. The real issue is whether you expected a native 80 Gbps path and ended up with a setup that reaches the advertised mode by compression. That difference matters most to buyers who care about link headroom, setup simplicity, and how many variables they want to trust on day one.

VESA’s published tier structure makes the practical point clear: DP 1.4 sits far below the top UHBR tier in raw link capacity, so the margin for uncompressed 4K high-refresh modes is much smaller.VESA UHBR certification details That does not make DSC bad. It just means you should know when compression is part of the path instead of assuming the headline number implies a native result.

A good shortcut is this: if your purchase decision depends on maximum simplicity and the cleanest possible signal path, native UHBR20 is the safest target; if you are comfortable with a monitor that uses DSC to reach a mode you will still use in practice, lower tiers can be acceptable.

Cable and Port Checks

Cable quality is the easiest place to lose bandwidth without noticing. The link is only as strong as the weakest part of the chain, so a monitor that supports the right tier is not enough on its own.

For cable length and rating, keep the setup conservative. Use a cable that is explicitly rated for the bandwidth class you need, and prefer shorter, clearly labeled runs when you are chasing stability at 4K high refresh. The Premium Display Signal Cables for Gaming & Productivity Monitors page at least gives you a clear product path for DisplayPort 1.4, HDMI, and USB-C cable options, which is better than guessing from an unlabeled spare cable.

For the GPU output and monitor input, make sure both ends support the same class of connection you are trying to use. A strong monitor spec cannot rescue a mismatched port, and a strong GPU cannot rescue a cable that is not up to the job.

For signal-chain red flags, watch for long unlabeled cables, mixed-spec adapters, and vague product descriptions. Those are the cases where users often blame the monitor when the problem is actually in the cable path.

A third decision sentence is worth keeping in mind: if the monitor, GPU output, and cable all point to the same bandwidth class, your setup is much more likely to behave predictably; if one link in the chain is vague or under-rated, treat the advertised mode as provisional.

If you want more background on cable symptoms, the support guide on how to identify a USB-C cable limiting monitor performance is a useful companion read, especially for hybrid USB-C display setups.

Which Monitor Buyer Fits UHBR20

UHBR20 is not for every monitor shopper. The people who should care most are the ones planning around uncompressed 4K at very high refresh rates, especially when they are pairing a premium panel with a next-generation GPU and do not want the interface to become the hidden limit.

If you are comparing options in that group, use the 4K Monitor collection as a browsing path, not as proof of any specific bandwidth tier. The same goes for the broader Gaming Monitor collection, which is useful for narrowing the category but not for confirming UHBR20.

If your real target is 4K 144 Hz or a similar mid-high mode, the decision usually flips. In that case, panel quality, HDR behavior, ergonomics, and pricing may matter more than the jump from one interface tier to another. That is the point where a convincing DP 2.1 label can be less important than the actual mode you will use every day.

For mixed-use buyers, the smartest purchase is the monitor that fits the mode you will actually run most often. If you split time between work, console input, and PC gaming, a clear mode list and honest compression disclosure are often more valuable than the highest tier number on the page.

If you want a broader interface comparison after this article, the DP 2.1 UHBR20 vs HDMI 2.1 bandwidth guide is a natural next step. If you are still narrowing monitor size and panel type, the RTX 6090 UHBR20 audit can help you judge which setups are actually worth the premium.

Final Checks Before Checkout

Before you buy, re-read the monitor page for the exact tier name and the native mode you expect to use. If the wording is vague, assume you still need confirmation.

Then confirm that the cable, GPU output, and monitor input all match the same bandwidth path. If they do not, the setup may still work, but not necessarily at the level you thought you were buying.

One last useful rule: prefer products that state mode support plainly, because clear specs save more time than community speculation.

In many 4K gaming purchases, how to verify UHBR20 on a monitor comes down to one final question: can you point to the exact tier, the exact mode, and the exact cable path without having to infer any of them? If not, keep checking before you checkout.

FAQs

Q1. How Can I Tell If a Monitor Is Truly UHBR20?

Look for explicit UHBR20, DP80, or 80 Gbps wording on the monitor page. Then check the native mode list and see whether DSC is required to reach the advertised resolution and refresh rate. If the page only says DP 2.1, that is not enough to confirm the top tier.

Q2. What Is the Difference Between DP 2.1 and DP 1.4 for 4K Gaming?

The main difference is bandwidth headroom, which changes how easily a monitor can carry high-refresh 4K modes natively. DP 1.4 can still work well for many displays, but it leaves less room before compression or reduced settings become necessary.

Q3. Can DSC Still Be Fine on a Gaming Monitor?

Yes. DSC can be perfectly acceptable when the monitor, GPU, and cable are all working as intended. The key is expectation setting. If you want the simplest high-bandwidth path and the clearest spec match, native UHBR20 is easier to trust than an advertised mode that depends on compression.

Q4. Why Do Some DP 2.1 Monitors Not Support UHBR20?

Because DP 2.1 is a broader standard label, not a guarantee that every product supports the highest link tier. Manufacturers can choose different UHBR levels depending on design, cost, and target market, so the exact tier has to be checked on the product page.

Q5. Can My Cable Be the Bottleneck Even If the Monitor Supports UHBR20?

Yes. The monitor, GPU output, and cable all need to support the intended link path. A weaker or unlabeled cable can keep the setup from reaching the mode the monitor is capable of, which is why cable verification belongs in the checkout decision, not after setup.
