Fast IPS: Engineering Speed Without Sacrificing Color
Fast IPS is an evolution of In-Plane Switching technology that optimizes liquid crystal materials and panel structures to achieve response times comparable to TN panels while maintaining superior color accuracy and wide viewing angles. By reducing liquid crystal viscosity and thinning the cell gap, Fast IPS aims to mitigate the motion blur traditionally associated with IPS displays. However, it is important to note that the widely marketed "1ms GtG" figure typically represents a best-case scenario under specific test conditions rather than a universal performance guarantee across all color transitions.
Why Traditional IPS Was Historically Slower
Traditional IPS panels earned a reputation for being slower than Twisted Nematic (TN) panels because their core design prioritized color fidelity and 178-degree viewing angles over switching speed. In standard IPS architecture, liquid crystal molecules lie horizontally and must rotate within the plane of the display to modulate light.
This horizontal reorientation requires more time compared to the vertical twist of TN panels. Early IPS models often exhibited average gray-to-gray (GtG) response times of 5-8ms. In fast-paced titles like Valorant or CS2, these slower transitions produced noticeable motion smearing, as pixels could not change states fast enough to keep up with high-speed movement. For years, gamers faced a binary choice: the speed of TN with washed-out colors, or the beauty of IPS with compromised motion clarity.
IPS vs VA Panels: Which is Right for Your Playing Style? provides broader context on how different panel types balance these priorities.
How Fast IPS Works: The Three Engineering Pillars
Fast IPS achieves improved switching speeds through three primary material and structural optimizations. These changes are designed to reduce the physical time required for liquid crystals to reorient when a voltage is applied.
- Low-Viscosity Liquid Crystals: Manufacturers utilize new liquid crystal mixtures with lower rotational viscosity (denoted as γ1). This reduces internal friction, allowing molecules to twist more freely and rapidly.

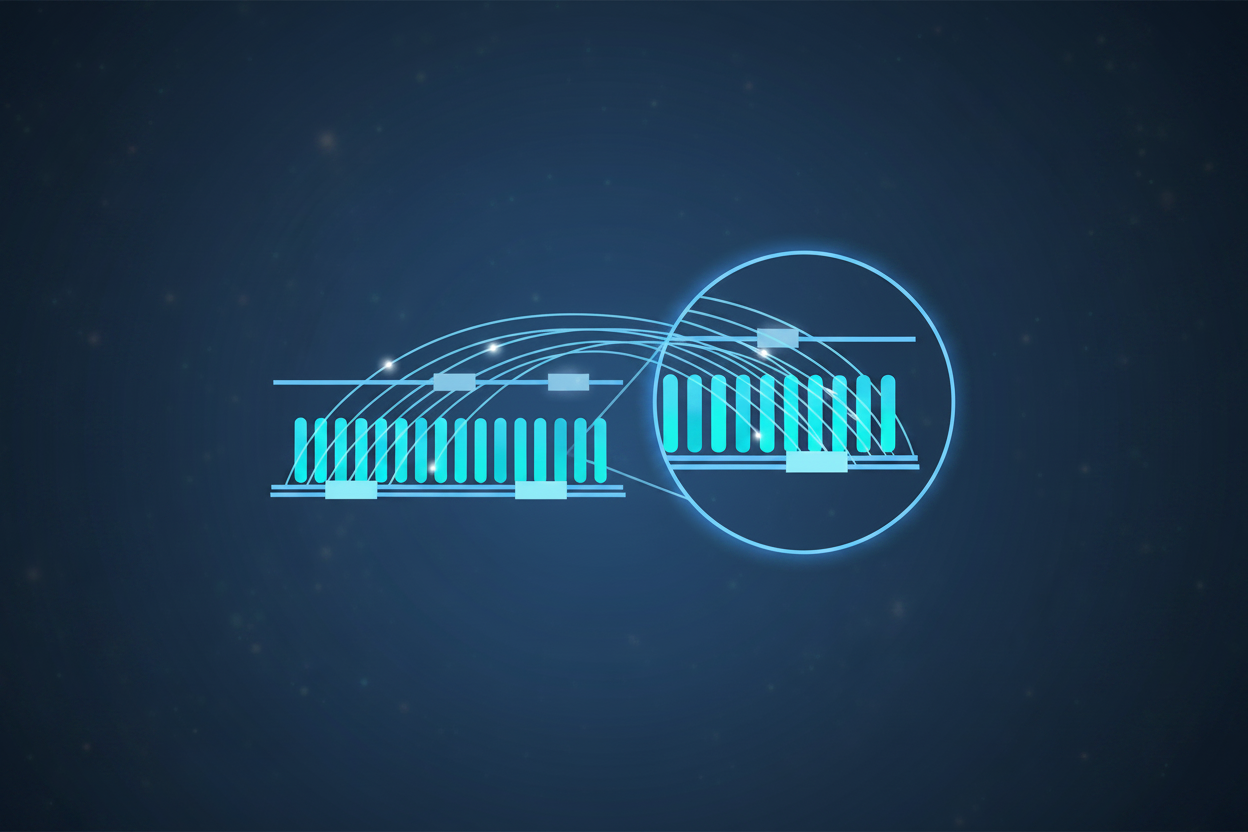

- Reduced Cell Gap: Based on the physical principle where response time (τ) is proportional to the square of the cell gap (d²), thinning the liquid crystal layer yields significant speed gains. Even a small reduction in thickness can lead to a disproportionately faster response.
- Enhanced Electrode Structures: Many Fast IPS panels employ advanced fringe-field switching (FFS) designs. These create stronger, more uniform electric fields that ensure consistent and rapid reorientation across the entire pixel.
Fast IPS: Thinner Cell Gap Cuts Response Time Nonlinearly
Shows the likely pattern under the standard IPS response-time formula: with viscosity held constant, smaller cell gap produces a much larger speed gain because response time scales with d².
View chart data
| Category | Relative response time index |
|---|---|
| Traditional IPS (3.5 μm) | 12.25 |
| Fast IPS (2.5 μm) | 6.25 |
| Fast IPS (2.0 μm) | 4.0 |
This MDPI study on fast-response IPS LCDs details how these structural refinements enable the performance gains now common in modern gaming monitors.
Performance Vocabulary: GtG, Refresh Rate, and Blur
To evaluate a monitor's performance, it is essential to distinguish between different types of speed metrics:
- GtG (Gray-to-Gray): This measures the time a pixel takes to transition between two shades of gray. While a "1ms" peak is often advertised, the average GtG across all possible color combinations is a more accurate reflection of real-world performance.
- Refresh Rate (Hz): This indicates how many times the screen updates the image per second. Fast IPS panels can support 360Hz and higher, but a high refresh rate does not automatically eliminate motion blur.
- Ghosting vs. Sample-and-Hold Blur: Ghosting is caused by slow pixel transitions (slow GtG), leaving trails behind objects. Sample-and-hold blur is a physiological effect caused by the human eye tracking motion across a screen that holds a static image for the duration of a frame. Fast IPS specifically targets ghosting, while higher refresh rates help mitigate sample-and-hold blur.
How Important is 1ms GTG for Your FPS Gaming? explores these metrics in greater detail for competitive players.
The 1ms Myth: Balancing Overdrive and Inverse Ghosting
The "1ms GtG" label is often a best-case figure achieved using aggressive "Overdrive" settings. Overdrive applies increased voltage to speed up crystal rotation. However, if the voltage is too high, the crystals may overshoot their target position, resulting in inverse ghosting—bright or dark halos trailing moving objects.
In practice, the "Extreme" overdrive setting on many monitors is often unusable due to these artifacts. Most experts recommend using a "Normal" or "Medium" setting to achieve the best balance of speed and image clarity. The VESA ClearMR certification is an emerging industry standard that provides a more reliable metric than GtG by measuring the ratio of clear pixels to blurry ones while accounting for overshoot.
As explained in this response time guide, the usability of 1ms claims depends heavily on specific firmware tuning. What Is Pixel Overdrive, and When Does It Create Inverse Ghosting? offers practical tuning advice.
Fast IPS vs. Nano IPS: Speed vs. Color
It is a common misconception that Fast IPS and Nano IPS are competing technologies. In reality, they address different components of the display:
- Fast IPS focuses on the liquid crystal layer to improve response times.
- Nano IPS (a technology popularized by LG) focuses on the backlight, using a layer of nanoparticles to absorb excess light wavelengths and produce a wider color gamut (often reaching 98% DCI-P3).
Many high-end monitors are effectively both "Fast" and "Nano," combining a quick-switching panel with an enhanced backlight. When choosing, remember that a "Nano" label guarantees color depth but doesn't inherently guarantee the fastest response times unless "Fast IPS" or similar speed-oriented engineering is also present.
Choosing Your Panel: Is Fast IPS Right for You?
Fast IPS currently represents a versatile "sweet spot" for gamers who need a single monitor for both competitive play and daily tasks.
Consider Fast IPS if:
- You play fast-paced titles like Apex Legends or Counter-Strike but also enjoy cinematic AAA games.
- You perform color-sensitive work (video editing, design) on the same screen you use for gaming.
- You want high-refresh performance (240Hz+) without the higher cost or potential burn-in risks associated with OLED.
While OLED offers near-instantaneous 0.03ms response times, Fast IPS remains a more accessible and durable choice for many setups. When shopping, look for independent reviews that test "Average GtG" and "Overshoot Error" rather than relying solely on the box's 1ms claim.
What Is Sample-and-Hold Blur and Why Higher Refresh Rates Don’t Eliminate It? helps set realistic expectations about remaining motion artifacts. For high-refresh options, explore the 240Hz-400Hz Monitors collection or the broader IPS Monitors selection.
FAQs
Is Fast IPS actually different from regular IPS? Yes. It uses specific engineering refinements—lower viscosity materials and thinner cell gaps—to reduce the time it takes for pixels to change colors.
Does 1ms GtG guarantee no motion blur? No. 1ms is a peak measurement. Real-world blur is also affected by the "sample-and-hold" nature of LCDs, which is only improved by increasing the refresh rate or using Black Frame Insertion (BFI).
Should I choose Fast IPS or OLED? Fast IPS is generally more affordable and better for bright rooms or static productivity work. OLED is superior for pure motion clarity and contrast but comes at a premium price.
How does overdrive affect performance? Overdrive speeds up the panel but can cause "overshoot" (inverse ghosting) if set too high. Finding the "Medium" setting is usually the best approach for most users.
