UHBR20 KVM Switchers: Native 80Gbps Audit

UHBR20 KVM setups are best treated as a bandwidth and handshake problem first, and a shopping problem second. If you want one native UHBR20 monitor shared between a gaming PC and a workstation, the safest expectation is that every link in the chain has to behave cleanly; no source, cable, or switcher can be assumed to carry the whole load without testing.

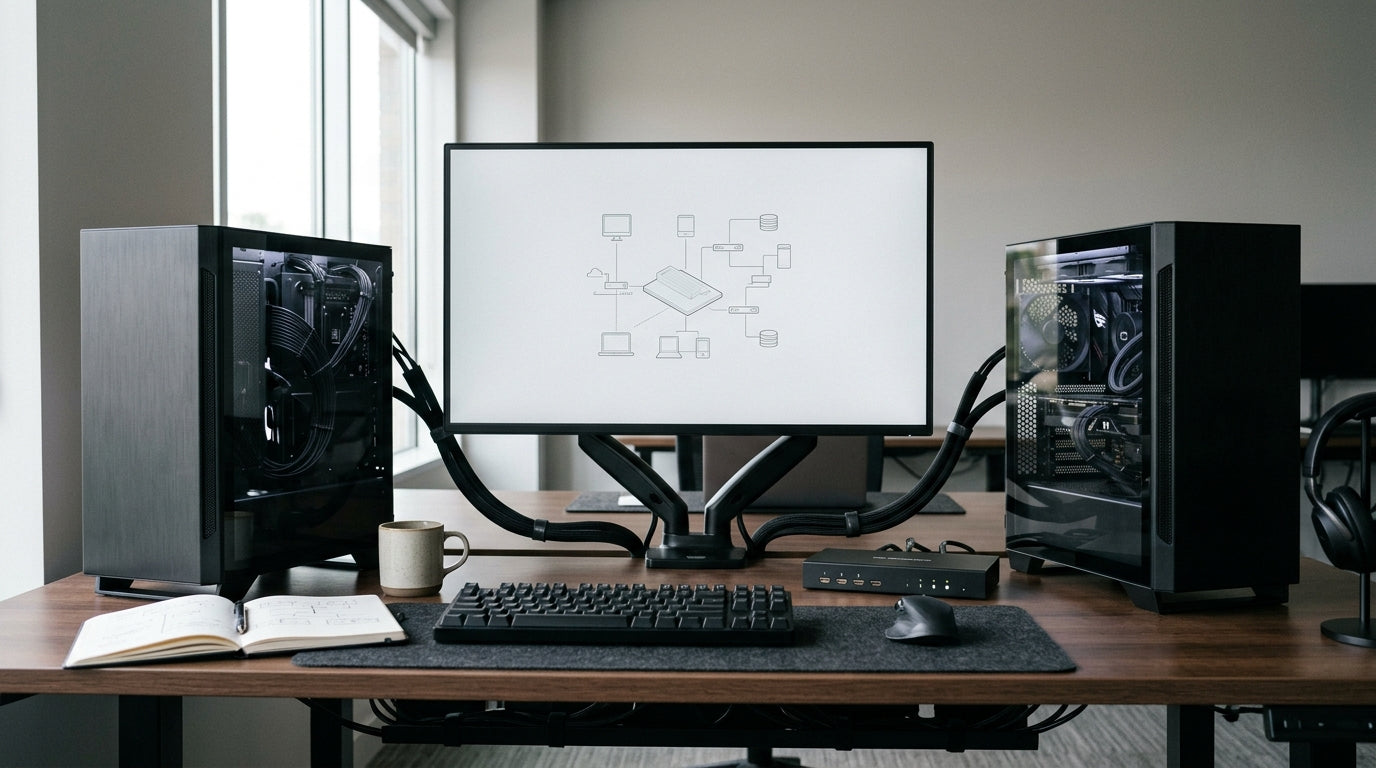

Dual-PC UHBR20 KVM desk with a high-refresh monitor, two tower PCs, and tidy switching cables.

Why UHBR20 Switching Is Hard

The hard part is not simply sending video to two PCs. It is keeping the DisplayPort link stable, preserving the target refresh mode, and making sure the monitor wakes up on the right input after every switch. The DisplayPort 2.1 UHBR20 spec is defined around up to 80 Gbps over four lanes, and VESA-certified DP80 cables are the cable class VESA points to for full UHBR20 performance.

That matters because the weakest point can be anywhere in the chain. A source GPU may negotiate differently from one reboot to the next. A cable may pass one mode but not another. A switcher may be fine for USB control yet still be the part that forces a fallback in the display path. In other words, the article should be read as a diagnostic workflow, not as a promise that any single box can make the whole desk behave.

For a dual-PC desk, this is where the decision starts to flip. If you care most about preserving the display signal, direct cabling is the safest baseline. If you care more about one-button convenience, you can move toward KVM-style switching, but the burden of proof gets much higher.

One useful sanity check is simple: if the link drops after switching, treat that as a system failure, not a small annoyance. A setup that only works after repeated resets is not stable enough for daily use. See No Signal After Updating Graphics Card Drivers: How to Fix Monitor Detection, Refresh Rate, and Display Handshake Issues for related handshake troubleshooting.

What an 80Gbps KVM Must Preserve

For most readers, an 80Gbps KVM is only useful if it preserves three things at once: the video mode, the USB follow-through, and the switch-back behavior. If it solves only one of those, it is incomplete for a shared UHBR20 desk.

A comparison of desk architectures for UHBR20 switching, showing direct connection versus KVM-based options.

Bandwidth Path and Link Negotiation

The display path has to hold the mode you actually want, whether that is 4K at high refresh or another supported setting. If the monitor silently falls back to a lower refresh rate, the setup is no longer doing the job you bought it for. That is especially important because there is still no verified public evidence that any KVM reliably carries native UHBR20 80 Gbps passthrough at uncompressed 4K 240 Hz.

The practical translation is simple: look for a setup that keeps the same mode after power cycles, source changes, and cold starts. If you have to inspect the on-screen display every time to see whether the link degraded, the chain is not behaving like a finished solution.

DSC and Resolution Trade-Offs

Display Stream Compression can be part of modern high-bandwidth signaling, but it does not change the basic judgment here: if your goal is to avoid fallback and minimize uncertainty, you should not assume the switcher will preserve a DSC-free path unless you can verify the whole chain. That is why uncompressed 4K 240 Hz should be treated as an outcome to confirm, not a default expectation. DP 2.1 products must support DSC when both source and sink allow it.

A useful rule is this: if the setup already becomes fragile when you add a switch, the more conservative display mode is usually the smarter daily-use choice. That does not mean lower quality in every case. It means fewer moving parts and fewer reasons for the link to renegotiate badly.

USB Switching and Peripheral Follow-Through

A desk can look video-perfect and still feel broken if your keyboard and mouse do not follow the active PC. That is why USB switching matters even when the monitor picture looks fine. USB-C DisplayPort Alt Mode: How to Verify Your Cable and Port Support Video Output is useful here because the same port or cable confusion that breaks display output can also complicate upstream USB behavior.

If you are choosing between a polished desk and a reliable one, ask which failure would annoy you more: a missing mouse path or a display fallback. For most high-end users, both matter, but the display chain has to be proven first.

Handshake Stability After Source Changes

Frequent switching should not require ritual resets. If the monitor only comes back after unplugging cables, the setup is too fragile for a dual-PC workflow. The goal is boring behavior: switch, wake, and continue.

A good mental test is to imagine a Monday morning start-up. If one PC is asleep, the other has been off overnight, and the switcher has also lost power, does the system still return to the correct mode without intervention? If not, it is not ready yet.

Switcher Architectures Compared

Direct GPU-to-monitor cabling is the safest architecture when the display link matters most. USB-only switching is easiest to live with if your video path stays separate. A full KVM is cleaner on the desk, but it carries the most uncertainty once the display path itself becomes part of the switch.

Scenario	Direct GPU to monitor	KVM for USB only	KVM with separate video path	KVM claiming native UHBR20 passthrough
Safest display-path preservation	3	2	2	1
Desk convenience	1	3	2	3

Monitors That Fit a High-Bandwidth Desk

For this use case, the best monitor choice is the one that matches the switching goal instead of fighting it. A 4K high-refresh display is the closest fit for a UHBR20 desktop because it gives you a demanding but realistic target. Lower-resolution high-refresh models are still valid if speed matters more than pixel density. See the full Gaming Monitor and 4K Monitor collections for additional options.

4K 160Hz Mixed-Use Option

If you want one screen that can serve both work and gaming, the KTC 27" 4K 160Hz/320Hz 90W Gaming Monitor | H27P6 is a practical browsing target. It is documented as a 27-inch Fast IPS monitor with 4K 160Hz and 1080p 320Hz dual-mode support, plus KVM switching and USB-C power delivery. That makes it a reasonable fit for users who want a single desk display that can switch roles quickly.

The boundary is important, though. This is not proof of UHBR20 monitor-side readiness, and it should not be read that way. It is a monitor fit reference for a high-bandwidth desk, not evidence that the switcher chain will preserve native 80 Gbps signaling.

Mini-LED HDR Option for Creators

If HDR work, mixed content creation, or brighter room use matters more than raw switching stress, the KTC Mini LED 27" 4K 160Hz HDR1400 Gaming Monitor | M27P6 is another sensible reference point. Its documented features include Mini-LED backlighting, HDR1400 peak brightness, 4K 160Hz support, and USB-C with PD 3.1.

That makes it appealing for creators who want stronger HDR handling and a more premium everyday picture. It is not a UHBR20 claim, though, and it should not be treated as one. The point is that a high-bandwidth desk does not have to be gaming-only; it can also be a work-first setup that still benefits from fast refresh and strong HDR behavior.

Competitive-Speed Alternative for Lower-Resolution Workflows

If the desk is really about speed rather than 4K sharpness, a lower-resolution high-refresh monitor may be the more sensible choice. In that case, the KVM problem becomes easier because the display path is less demanding. That is often the right trade if you care about esports responsiveness more than a native 4K canvas.

In plain terms, the more ambitious the display mode, the less margin you have for switcher problems. If your real priority is predictable daily use, it is often smarter to lower the load on the chain than to keep adding complexity.

Build the Desk Without Signal Loss

Start with the monitor and one direct cable before introducing anything else. That gives you a baseline. If the direct connection cannot hold the target mode consistently, the KVM is not the right next step yet.

Connect one PC directly to the monitor with the best available cable.
Confirm the target resolution and refresh rate in the monitor OSD and the GPU control panel.
Reboot the source and confirm the mode survives a cold start.
Add the second PC and test source switching without changing the display mode.
Add USB upstream only after the picture is stable on both sources.
Retest after each change so you know which component introduced instability.

This sequence is slow on purpose. The most common mistake is to install everything at once, then guess which part is responsible when the image falls back. If you cannot isolate the fault, you cannot trust the result.

A useful companion check is Why USB-C Docking Stations Limit Display Resolution or Refresh Rate. It is not the same problem as a KVM, but it teaches the same lesson: every additional hop can reduce the margin available for high refresh rates. Related setups appear in How to Share a Home Office Monitor Between Multiple Remote Workers and Organizing a 3-Laptop Hot-Desking Station with One Monitor.

Final Checks Before You Call It Stable

Before you trust the desk day to day, verify the behavior that matters most. The switch should return to the correct source cleanly, the USB devices should follow that source, and a full power cycle should not break the link. If it falls back to a lower mode, treat that as a failed test, not a minor inconvenience.

Test sleep/wake cycles on both PCs, confirm USB peripherals follow the active source without manual intervention, and verify the monitor returns to the expected input after a full power loss. Re-check the target refresh rate in the OSD after each test. A setup is ready only when it behaves the same way after sleep, reboot, and cold start. That is the real standard for a UHBR20 KVM desk, and it is more useful than any marketing label.
