For architects and CAD professionals, a monitor that delivers sharp linework and trustworthy color reduces errors during drafting, material reviews, and client presentations. Resolution and color accuracy directly influence how clearly thin construction lines, annotations, and rendered textures appear, which affects both speed and confidence in design decisions.
Why 4K Resolution is the New Professional Baseline
Modern CAD datasets contain dense vectors, small text, and complex details that lower-resolution screens struggle to render clearly. At 1080p or 1440p, fine lines often show visible stairstepping, and dense annotations become harder to read during long sessions.

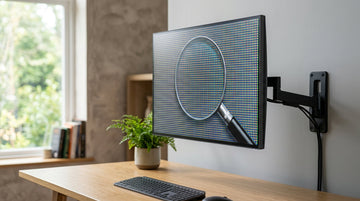

A 27-inch 4K panel reaches roughly 163 pixels per inch. This density significantly reduces aliasing on thin construction lines and 6-point text, lowering eye strain while keeping dimensions legible. Autodesk lists 4K or greater True Color displays as the recommended standard for AutoCAD 2026 when handling large architectural and 3D modeling projects.
32-inch 4K screens trade a bit of pixel density (about 140 PPI) for greater physical workspace. Many drafters find this size comfortable for keeping tool palettes, reference views, and the main drawing area visible at once.
Choosing Between 4K and 5K for Architectural Workflows
The choice between 4K and 5K depends on whether your priority is maximum line precision or usable screen real estate for tools and references.
27-inch 5K (218 PPI) renders vectors with near-retina clarity, making even the smallest construction details appear solid without scaling adjustments. However, the higher pixel count often requires stronger OS scaling, which can shrink the effective workspace compared with a 32-inch 4K display.
32-inch 4K offers the largest usable canvas at moderate scaling (typically 110-125 percent). This configuration keeps icons and palettes readable while still providing enough PPI to minimize aliasing on most linework.
4K vs 5K for Architectural Workflows
Higher PPI improves line clarity, while typical scaling determines how much usable workspace remains for CAD tools and side panels.
View chart data
| Category | PPI | Relative UI real estate | Scaling requirement |
|---|---|---|---|
| 27-inch 4K | 163.0 | 100.0 | 2.0 |
| 32-inch 4K | 140.0 | 120.0 | 1.0 |
| 27-inch 5K | 218.0 | 100.0 | 2.0 |
The Color Accuracy Threshold: Trusting Your Renders
Even sharp linework loses value if material colors shift between screen and reality. A Delta E value below 2 marks the point where most viewers cannot distinguish color differences between a digital render and physical samples.
Architectural visualization engines such as V-Ray and Enscape produce wide color gamuts. Displays covering 95 percent or more of DCI-P3 reproduce these hues more faithfully than standard sRGB panels, which helps when judging wood tones, fabric textures, or daylight studies.
Factory-calibrated monitors that maintain Delta E below 2 out of the box reduce the need for frequent manual adjustments and give consistent results across multiple workstations.
Mini-LED and HDR: Enhancing Lighting Simulations

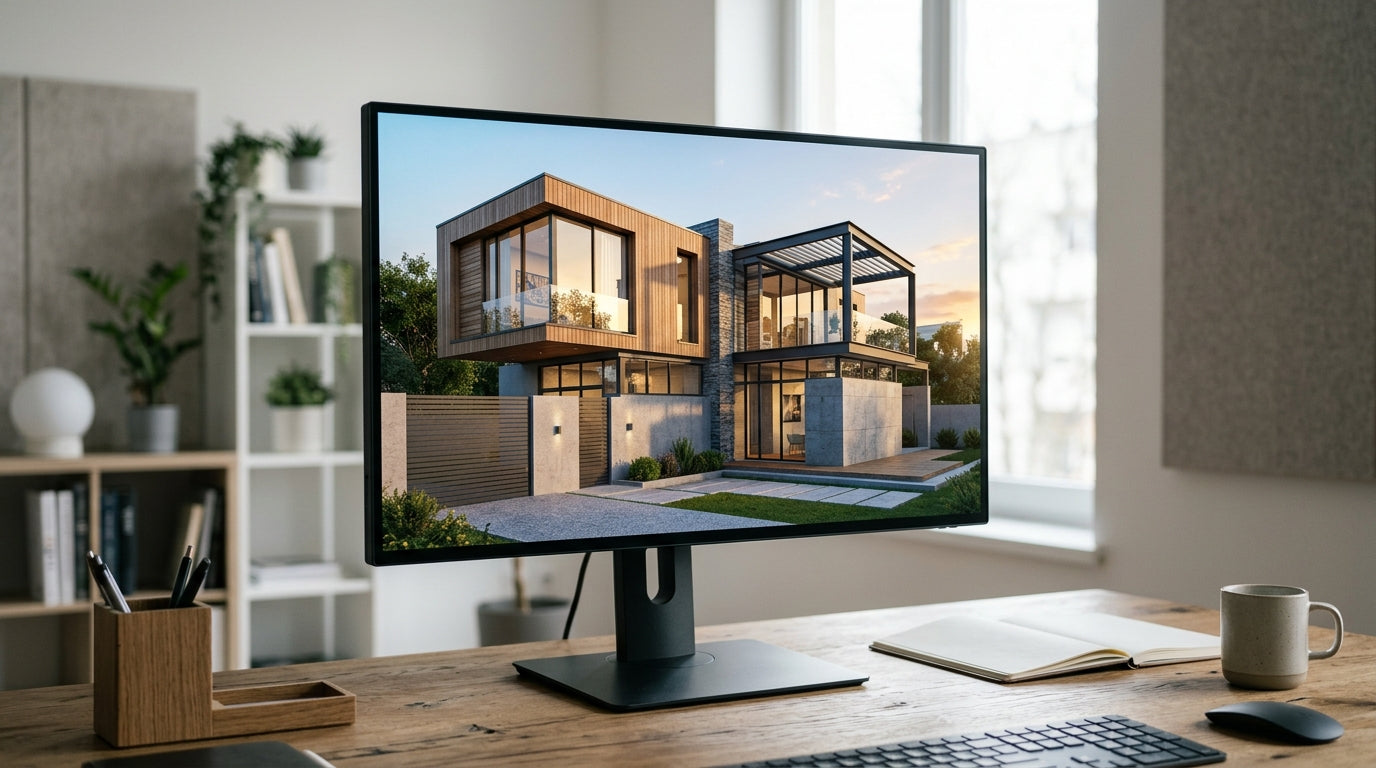

Mini-LED backlights with hundreds of local dimming zones increase peak brightness and shadow depth, which helps when evaluating sun studies and material luminosity in 3D renders.
For pure drafting, many users disable local dimming to avoid halo effects around cursors and thin lines. Enabling HDR and local dimming only during rendering review sessions preserves precision while still benefiting from higher contrast when needed.
Mini-LED panels also avoid the burn-in risk associated with OLED when static CAD interfaces remain on screen for many hours, making them practical for hybrid drafting and visualization work.
Optimizing Your Workspace: Scaling and Calibration Tips
High-resolution monitors require thoughtful scaling settings to keep icons and text legible. Autodesk recommends adjusting Windows display scaling or using the override high-DPI behavior option inside CAD applications when palettes appear too small.
IPS panels maintain consistent color and contrast across wide viewing angles, which proves useful during client reviews when multiple people examine the same screen. Hardware blue-light filters and fully adjustable stands further support long workdays without added fatigue.
Monitors such as the KTC H27P27 and H27P3 pair these ergonomic features with verified color accuracy suitable for mixed CAD and rendering tasks.
Frequently Asked Questions
Is 4K Resolution Necessary for Most CAD Work?
For current AutoCAD and BIM datasets, 4K has become the practical baseline. Lower resolutions force users to zoom excessively or accept blurry linework that slows dimension checks and annotation review.
Does Color Accuracy Matter if I Mainly Draft in 2D?
Color accuracy becomes relevant the moment you import or create material textures, even in primarily 2D drawings. Consistent hues prevent mismatches when the same file moves to rendering or client presentation stages.
Should I Choose Mini-LED or Standard IPS for Architectural Rendering?
Mini-LED excels when you need high peak brightness and deep shadows for lighting studies. Standard IPS remains sufficient for line-heavy drafting where uniform brightness and wide viewing angles matter more than local contrast.
How Do I Decide Between 27-Inch and 32-Inch 4K Monitors?
A 27-inch 4K screen offers higher pixel density for fine detail, while a 32-inch 4K screen provides more total workspace for palettes and multiple views. Test both sizes at your desk distance before purchase.
What Scaling Settings Work Best for Legacy CAD Software on 4K Displays?
Start with 125 percent Windows scaling and test the application's high-DPI override option. Many users also increase interface element sizes inside the CAD program itself to restore comfortable icon visibility without sacrificing drawing area.
