Understanding VESA mount standards and weight limits is the first step to safely wall-mounting a monitor without risking damage to your display, wall, or workspace. For owners of 27- to 49-inch monitors, especially gamers or remote workers upgrading to larger or ultrawide models, confirming your monitor's hole pattern and the mount's ability to handle both static weight and dynamic leverage prevents common failures like tilt sag, wall pull-out, or hardware stripping. The key decision checks are straightforward: does your monitor have standard VESA holes (typically 75x75 mm or 100x100 mm), is its weight within the mount's rated limit with a safety margin, and is your wall or desk surface strong enough for the chosen arm type? Get these right early, and you avoid the regret of an unstable or unsafe setup.
What Is the VESA Mounting Standard?
The VESA Flat Display Mounting Interface (FDMI) is the industry standard that defines the screw-hole patterns and hardware requirements so monitors can attach securely to arms, stands, or wall brackets. As explained in the official VESA mounting standard guide, the most common classifications for computer monitors are MIS-D (75x75 mm or 100x100 mm patterns) for screens up to around 32 inches, with larger MIS-E or MIS-F patterns used for bigger displays. This standardization eliminates guesswork across brands and makes it easy to swap mounts or upgrade monitors.
Standardization matters because it directly improves ergonomics and safety. A properly mounted monitor at eye level reduces neck strain during long gaming or work sessions, while secure attachment protects expensive hardware from falls. Most modern monitors, including many KTC models such as the 27-inch 4K HDR400 gaming monitor, come VESA-ready with pre-threaded holes that match these patterns for straightforward installation.
How to Measure Your VESA Pattern and Confirm Compatibility

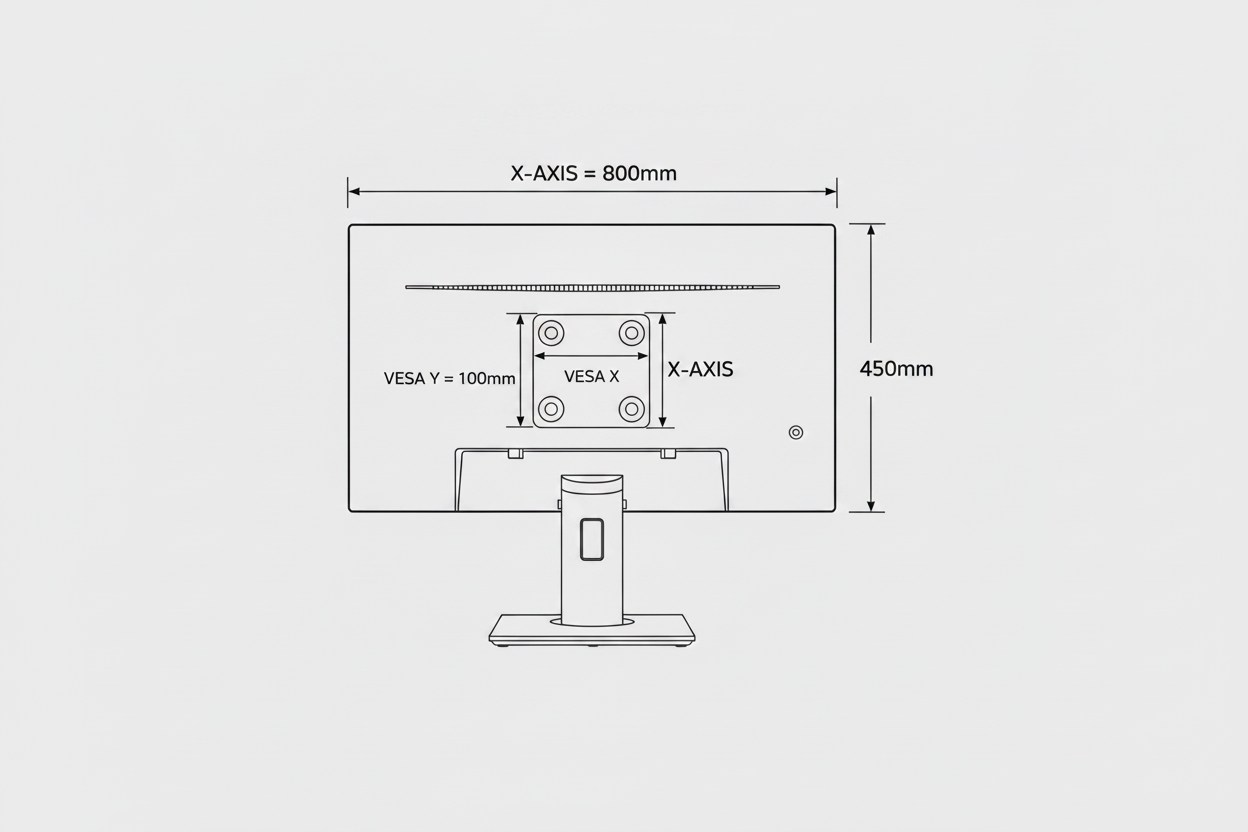

To determine which mount fits your screen, flip the monitor (or check while it is still on the stand if accessible) and measure the horizontal and vertical distances between the centers of the four mounting holes using a ruler or caliper in millimeters. The resulting numbers, such as 75x75 or 100x100, tell you the exact pattern.
Common sizes break down simply: 75x75 mm suits smaller 24- to 27-inch monitors with lighter weight, while 100x100 mm is the standard for most 27- to 32-inch displays. Larger TVs or ultrawides may use 200x200 mm or more. Your monitor's user manual or technical specifications page will usually list its MIS-D classification and exact pattern, removing any doubt before you buy hardware.
If the measurements do not match common mount plates, consider a VESA adapter plate rather than forcing a mismatch, which can create uneven stress. For users replacing a stand with an arm in a home office ergonomic setup, confirming this measurement first avoids the frustration of returned products.
Weight Limits and the Physics of Leverage: Why "Static Weight" Isn't Enough
A monitor's listed weight on a scale is only the static load. Once mounted on an articulating arm, movement creates leverage that multiplies the force on wall anchors and tilt mechanisms. This is why a 15 lb monitor can feel dramatically heavier when extended far from the wall.
Industry guidance recommends a safety factor of at least 3:1 for dynamic loads on articulating arms. This means a mount rated for 30 lbs should support a monitor no heavier than about 10 lbs when fully extended, to account for the extra torque from motion. Articulating arms act as levers: the farther the monitor sits from the wall pivot, the greater the pull-out force on the anchors.
Leverage Effect on Safe Monitor Weight (3:1 Safety Factor Guideline)
This chart shows how increasing arm extension reduces the safe monitor weight a typical articulating mount can handle. Based on a 30 lb rated arm and the common 3:1 dynamic safety heuristic; actual results vary with wall type and exact hardware.
View Data Table
| Extension | Fixed/Tilt Safe Weight (lbs) | Articulating Safe Weight (lbs) |
|---|---|---|
| 0 in (flush) | 30 | 30 |
| 8 in | 28 | 18 |
| 16 in | 25 | 12 |
| 24 in | 22 | 8 |
For drywall installations, articulating arms create prying forces that can exceed simple pull-out ratings. The consensus safety rule is clear: never mount a full-motion articulating arm directly into drywall alone. Use a wood stud whenever possible. This guide to monitor arms and desk stability reinforces why leverage, not just listed weight, determines real-world safety.
The Ultrawide Challenge: Mounting 34-inch and 49-inch Curved Displays
Curved ultrawide monitors like the 49-inch DQHD 180Hz curved gaming monitor shift their center of gravity forward due to the screen curvature. This change can multiply the effective torque on the tilt pivot by roughly 1.5x to 2x compared with a flat panel of the same weight, often causing tilt sag even when the arm's weight rating appears sufficient.
What this means for buyers is that you should prioritize arms with reinforced tilt pivots, compression springs, or heavy-duty tension adjustments over those rated only on static weight. Standard arms marketed for 20–30 lb monitors frequently struggle with 34-inch or larger curved panels because the shifted mass creates constant downward pressure on the hinge.
In practice, many users regret choosing a lightweight arm for an ultrawide setup. For gamers transitioning from standard displays, check the arm manufacturer's tilt torque specifications and look for models explicitly labeled for heavy or curved monitors. Pairing your ultrawide with the right hardware also pairs well with understanding whether an ultrawide gaming monitor fits your needs.
Choosing the Right Hardware: Screws, Spacers, and Wall Anchors
Most monitors use M4 screws with approximately 10 mm of thread engagement, while larger or heavier displays may require M6 or M8 hardware. As detailed in Ergotron's VESA mount guide, selecting the correct screw diameter and length is critical.
Screws that are too long can damage internal monitor components by bottoming out inside the chassis. Screws that are too short provide insufficient thread engagement (fewer than three full turns), which risks stripping and eventual failure. When your monitor has a recessed VESA area or curved back, spacers supplied with the mount create the necessary clearance so the screws seat properly without bending the panel.
For wall anchors, lag bolts centered into wood studs offer the highest pull-out resistance. Toggle bolts or heavy-duty drywall anchors can work for fixed or tilt mounts on lighter setups, but they are generally unsuitable for articulating arms. Always verify your wall type before drilling.
What to Do if Your Monitor Is Not VESA-Compatible
Some older or specialty monitors lack the standard four-hole pattern. In these cases, universal claw-style brackets or proprietary adapter plates can bridge the gap. However, as noted in guidance on choosing the right VESA adapter, these solutions often move the center of gravity even farther forward, which can reduce the mount's effective weight capacity and increase tilt sag risk.
Before purchasing an adapter, weigh whether a dedicated replacement stand or a monitor with native VESA support would be safer long-term. Adapters work well for occasional use but introduce extra variables in stability that many DIY users underestimate. If your current display is non-VESA, confirm the adapter's load rating accounts for the added leverage before committing to a wall or arm installation.
Safety First: Avoiding Common Mounting Mistakes
The most serious error is mounting an articulating arm into drywall without locating a stud. The lever action creates powerful prying forces at the bottom of the bracket that can tear through drywall regardless of anchor type. Always use a stud finder and center lag bolts into solid wood for articulating setups.
Another frequent mistake involves cable management. Leaving insufficient slack causes tension that pulls on the monitor during movement, potentially loosening screws over time or damaging ports. Route cables with gentle loops that allow full range of motion.
Screw depth also demands attention. As highlighted in practical setup advice on spacer screws for monitor arms, insufficient engagement or excessive length both lead to failure. Test the tilt tension after initial mounting but before final tightening, and recheck everything after 24 hours of use.
Final Checklist: Your Action Plan for a Secure Setup
Before drilling, run through these steps to ensure a stable result:
- Confirm your monitor's VESA pattern (75x75 mm or 100x100 mm are most common for 27- to 32-inch models).
- Verify the monitor weight without its stand and confirm the arm or mount is rated at least three times higher for articulating use.
- Identify wall construction: prefer wood studs for any full-motion arm; consider professional installation for concrete or steel-stud walls.
- Select appropriate screws, spacers, and anchors, then test fit everything loosely before final tightening.
- Adjust tilt and tension with the monitor attached, and leave extra cable slack.
Following this checklist dramatically reduces the chance of instability or damage. For users building a complete ergonomic workspace, combining proper mounting with the right desk setup prevents many long-term comfort issues.
Frequently Asked Questions
What Is the Difference Between 75x100 and 100x100 VESA Patterns?
A 75x75 mm pattern is typically used on smaller, lighter monitors (under 27 inches and roughly 10–15 lbs), while 100x100 mm is the standard for most mid-size displays up to 32 inches. The larger pattern distributes weight over a bigger area, providing more stability for heavier panels. Always match the mount plate exactly or use a compatible adapter; a mismatch creates uneven stress that can warp the back cover over time.
Can Drywall Anchors Support a 32-Inch Gaming Monitor on an Articulating Arm?
Generally no. While some heavy-duty drywall anchors claim high static loads, the dynamic prying force of an extended articulating arm usually exceeds their safe capacity. For peace of mind and to protect both the monitor and wall, locate and mount into a wood stud. Fixed or tilt-only mounts have lower leverage demands and may be acceptable with reinforced anchors in some cases, but verify the specific product ratings.
How Do I Know If My Monitor Arm Is Rated for My Ultrawide?
Check both the static weight rating and the tilt torque specification. Many arms list a maximum weight assuming a flat, centered panel. For curved ultrawides, look for models that explicitly mention support for 34-inch or 49-inch curved displays or that include reinforced tilt mechanisms with compression springs. If the manufacturer provides a torque or center-of-gravity guideline, compare it against your monitor's dimensions.
Do I Need Special Spacers for a Curved Monitor?
Often yes. Curved monitors frequently have a bowed rear panel that prevents flush contact with a standard mount plate. The spacers included with most arms create the required gap so screws can thread straight without bending the chassis or leaving the mount unstable. Test the fit dry before final installation.
What Happens If I Use Screws That Are Too Long?
Screws that protrude too far into the monitor can puncture internal circuitry, damage the backlight, or short components. Manufacturers typically recommend a maximum thread depth of 10–12 mm for M4 screws. If your included screws are too long, use the provided spacers or purchase shorter ones rather than risking permanent hardware damage.
Is It Safe to Mount a Monitor Without a Stud Finder?
It is strongly discouraged. Without confirming a stud location, you risk hitting plumbing, wiring, or simply weak drywall that cannot handle the load. A inexpensive stud finder or the knocking-and-listening method helps, but for high-value monitors it is worth the small extra effort to avoid a costly accident.
How Often Should I Check My Wall-Mounted Monitor Setup?
Inspect screws, tilt tension, and cable routing every six months or after any major move of the arm. Temperature changes and repeated motion can gradually loosen hardware. A quick visual check and gentle wiggle test takes only a minute but prevents long-term issues.
