Your GPU's raw rendering power determines how many frames it can generate, but the display engine and its output ports decide whether those frames actually reach your monitors at the desired resolution and refresh rate. High-spec displays like 4K 160 Hz models can exceed the bandwidth of older port standards even when the graphics card itself is powerful enough to render the game.
Why Your GPU Horsepower Isn't the Same as Its Bandwidth
A graphics card can render a title at 200 frames per second yet still fail to deliver that performance to the screen if the port or cable cannot carry the signal. Rendering power comes from the GPU cores and memory; bandwidth is handled by a separate display engine that converts frames into a signal the monitor understands. When the two are mismatched, users see either a blank screen or an automatic drop to 60 Hz.
The "no signal" issue often appears when adding a second or third high-refresh display. The card still runs the game, but the output hardware cannot transmit the full timing to every connected screen at once.
The Math of Pixels: How to Calculate Your Monitor's Bandwidth Demand
Bandwidth demand is estimated with a straightforward formula: horizontal pixels × vertical pixels × refresh rate × bit depth × 1.12 (for blanking overhead). The 1.12 multiplier accounts for the non-visible portion of each frame that the interface must still transmit.
A 3840 × 2160 panel running at 160 Hz with 10-bit color requires roughly 35.8 Gbps. That figure rises further when HDR metadata or higher bit depths are enabled. Monitors that exceed the native capacity of a port must rely on compression to remain usable.
Port Standards in 2026: Comparing DP 1.4, DP 2.1, and HDMI 2.1
DisplayPort 1.4 remains the most common port on current graphics cards, yet its effective uncompressed limit sits near 25.9 Gbps after encoding overhead. That ceiling supports 4K at approximately 98 Hz in 10-bit color before compression becomes necessary.
HDMI 2.1 raises the bar to 48 Gbps using Fixed Rate Link encoding, allowing native 4K 120 Hz 10-bit and leaving headroom for 160 Hz on many panels. DisplayPort 2.1 extends the range further with UHBR20 signaling at 80 Gbps, providing the most future-proof option for multi-monitor or ultra-high-refresh setups.
Port Standards for 4K 10-bit Uncompressed Monitors
Compare each port standard’s effective uncompressed bandwidth and the highest 4K 10-bit uncompressed refresh rate it can reasonably support. For 4K 10-bit uncompressed use-case, DP 1.4 is near the practical floor, HDMI 2.1 clears 4K120-class use, and DP 2.1 provides the widest headroom.
View chart data
| Category | Max Uncompressed Bandwidth (Gbps) | Max Refresh Rate at 4K 10-bit Uncompressed (Hz) |
|---|---|---|
| DP 1.4 | 25.9 | 98.0 |
| HDMI 2.1 | 48.0 | 120.0 |
| DP 2.1 | 80.0 | 144.0 |
As this official HDMI 2.1 overview explains, the move to Fixed Rate Link encoding gives HDMI 2.1 a practical advantage for uncompressed 4K high-refresh signals compared with DisplayPort 1.4. The VESA DisplayPort 2.1 specification confirms the 80 Gbps UHBR20 tier that future-proofs newer cards.

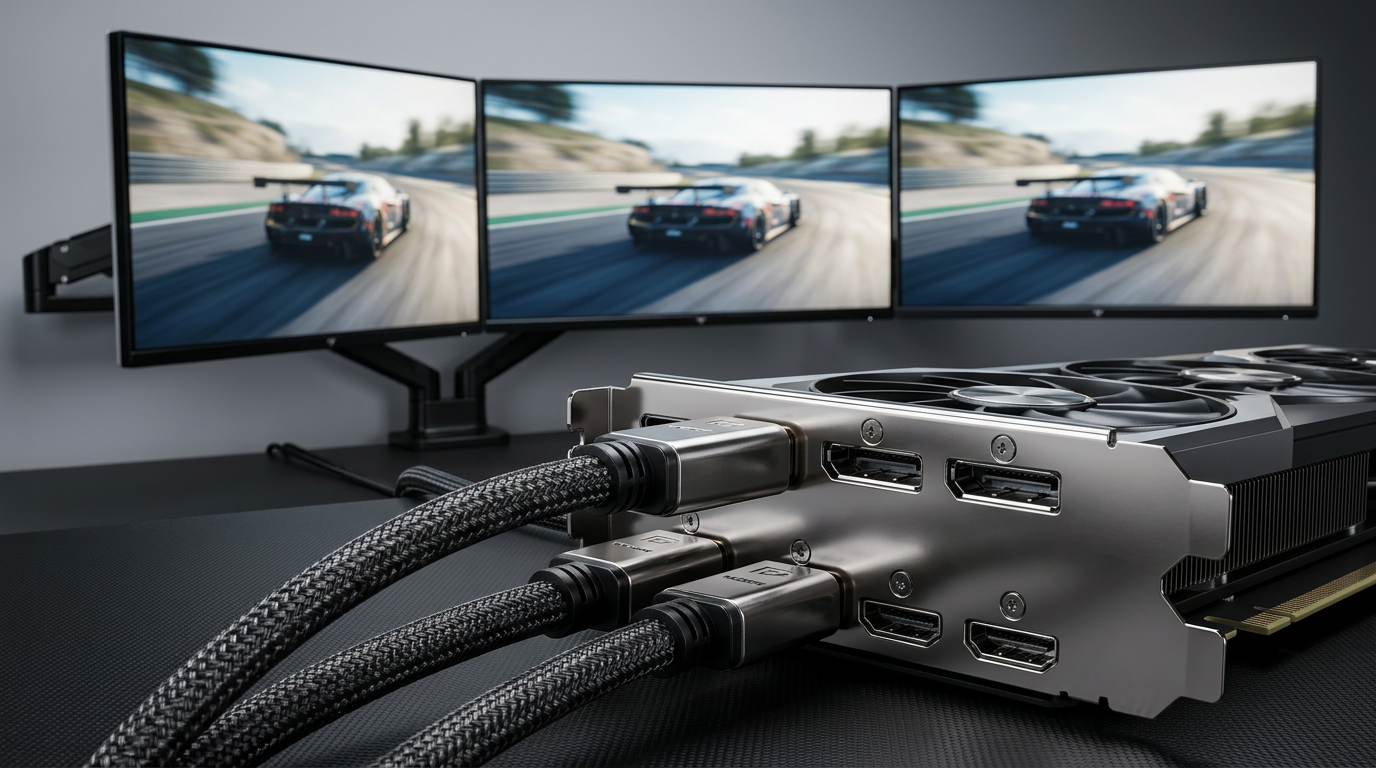

The Multi-Monitor Ceiling: Why Physical Ports Don't Guarantee Signal
Even when every physical port is occupied, the GPU's internal display engine can run out of processing paths before the ports themselves are full. Each high-bandwidth monitor can consume more than one internal "display head," leaving fewer resources for additional screens.
Display Stream Compression helps fit demanding timings into limited bandwidth, but it also occupies logic that would otherwise support extra physical outputs. On many NVIDIA cards the practical result is a "2+2" limit: two high-refresh 4K displays plus two lower-bandwidth screens before further additions fail to wake.
DisplayPort Alternate Mode Over USB-C shows how shared lanes on laptops create similar constraints when bandwidth is divided between video, data, and power.
Optimal Setup Blueprints: Dual and Triple Monitor Combinations
A balanced dual-monitor arrangement pairs one 4K 160 Hz display such as the KTC H27P6 with a 1440p 100 Hz companion like the KTC H27T27. The lower-bandwidth secondary screen leaves headroom on the primary port for full refresh rate and color depth.
Ultrawide panels such as the KTC H49S66 often demand their own dedicated lane because their pixel count approaches dual-QHD levels. Daisy-chaining via MST shares the total bandwidth of a single cable rather than multiplying it, so refresh rates on every screen in the chain can drop when the aggregate demand exceeds the link.
Troubleshooting 'No Signal' and Capped Refresh Rate Errors
Older or uncertified cables frequently fail when 10-bit color or HDR metadata is enabled because they cannot sustain the required data rate. The GPU then falls back to a lower timing that fits within the cable's capability, producing the familiar 60 Hz cap.
Driver-level bandwidth management can also force a refresh-rate reduction across multiple displays. Checking the cable certification label for VESA DP80 or HDMI Ultra High Speed helps rule out the physical link as the bottleneck.
What Happens When Your GPU Can’t Keep Up With Your Monitor’s Refresh Rate? and What Does Bit Depth Mean, and How Does 8-bit Differ From 10-bit Display? cover the timing and color-depth interactions that commonly trigger these symptoms.
Check Your GPU Display Engine Before Your Next Monitor Upgrade
Before purchasing another high-refresh panel, verify the GPU generation, the exact port versions on the card, and whether the internal display heads can support the combined timings. Monitors that include dual-mode switching and DSC support, such as several KTC 4K models, maximize compatibility across both older and newer hardware.
Selecting a cable that matches the port's highest certified mode is as important as the monitor itself. The right combination prevents capped refresh rates and blank screens that otherwise appear only after the new display is connected.
How to Choose the Perfect Monitor to Match Your Graphics Card provides a practical checklist for confirming these details before the purchase.
Frequently Asked Questions
How Do I Know If My GPU Uses Display Stream Compression?
Open the monitor's on-screen menu or the GPU control panel and look for an active DSC or compressed signal indicator. Many cards also list the current link rate; anything below the monitor's native timing requirement means compression is engaged.
Can I Mix HDMI 2.1 and DisplayPort 1.4 on the Same GPU?
Yes, but the total number of active high-refresh displays is still limited by the shared display engine. Using HDMI 2.1 for the most demanding monitor often preserves more headroom than routing everything through older DisplayPort connections.
Why Does My Third Monitor Only Wake at 60 Hz?
The GPU has likely exhausted its internal display heads. Dropping one of the high-refresh screens to 60 Hz can free a head and allow the third monitor to run at its native rate, confirming that bandwidth allocation rather than port count is the constraint.
Does Cable Length Affect Maximum Refresh Rate?
Longer or lower-grade cables increase signal loss. Certified cables two meters or shorter maintain full UHBR or FRL rates more reliably than extended runs, which may force a fallback to lower timings even when the port itself supports higher speeds.
