Intermittent disconnects on high-refresh monitors almost always trace back to the signal chain rather than a defective panel. The first checks should focus on cable certification, length, and port integrity before touching firmware.
Understanding the 'Digital Cliff': Why High Refresh Rates Disconnect
High-refresh displays push extreme bandwidth demands. Digital signals do not fade into static like analog ones; instead, they hit a hard cutoff once error rates climb or the handshake fails. This "digital cliff" appears as brief black screens or flickering during gaming sessions when the link cannot sustain the chosen resolution and refresh rate.
Flickering often signals minor error correction at work, while full blackouts usually mean the monitor and source have lost their connection entirely. At 144 Hz and above, even small weaknesses in the cable or port can trigger these drops because the required data rate leaves almost no margin for signal loss.

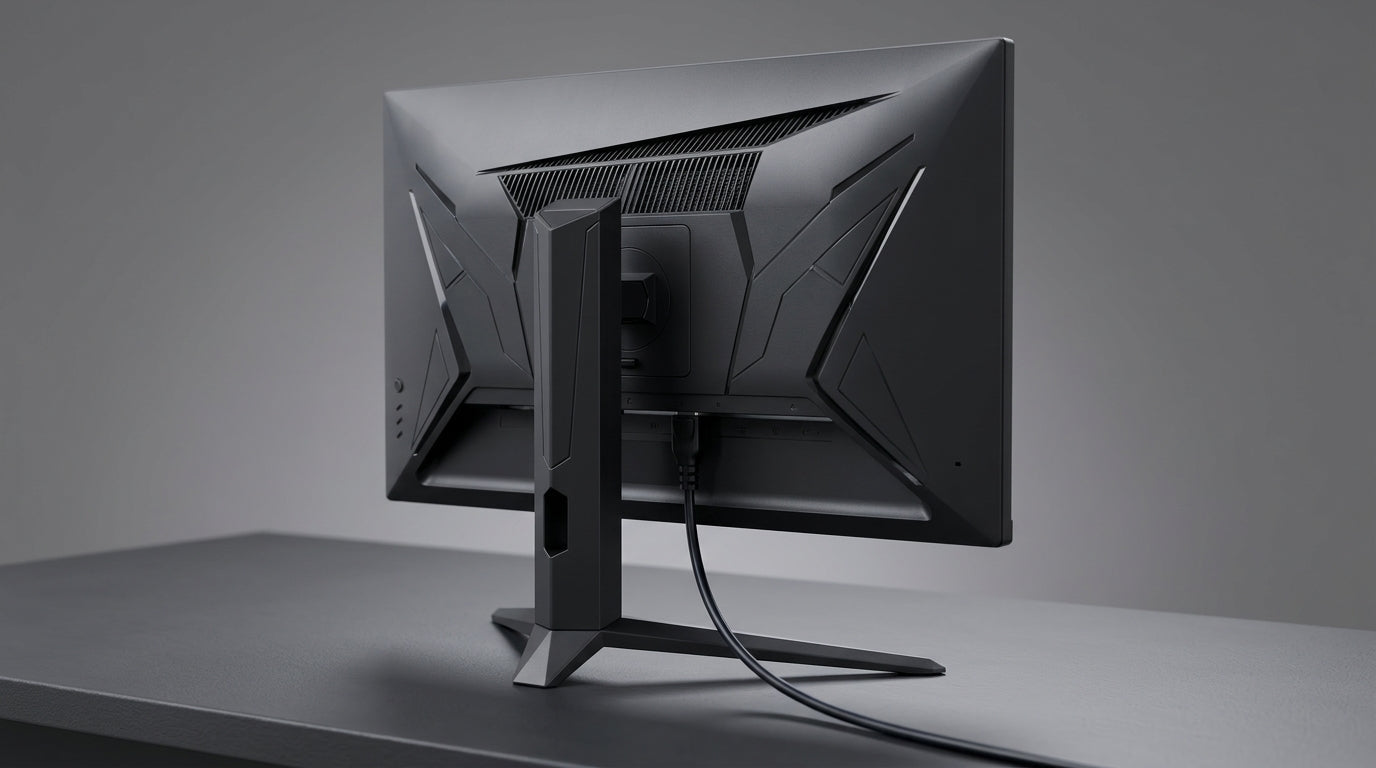

The Cable Bottleneck: Why Certification and Length Matter
VESA-certified DisplayPort cables are essential for high-refresh gaming to ensure the cable can sustain the required bandwidth (HBR3 for DP 1.4) without data errors. Uncertified cables frequently fail to maintain stable links at 144 Hz or higher, producing the exact blackouts users experience.
The "Pin 20" issue in non-certified DisplayPort cables can cause electrical feedback between the GPU and monitor, leading to boot failures, wake-from-sleep issues, and intermittent signal loss. Cheap cables that bridge this pin create hardware-level risks that no firmware update can fix.
For 4K at 120 Hz or higher, an "Ultra High Speed" HDMI 2.1 cable is required to handle the 48 Gbps bandwidth; using lower-rated "High Speed" cables often results in intermittent signal drops. Signal attenuation occurs naturally over distance; for high-bandwidth signals (DP 1.4/HDMI 2.1), passive copper cables should generally be kept under 2-3 meters (approx. 6.6-10 feet) to avoid the "digital cliff" where the signal becomes too weak to maintain a handshake.
Reliable Cable Length by Standard for High-Refresh Use
Passive cables lose stability quickly beyond 2 m at DP 1.4 and HDMI 2.1 speeds.
Show data table
| Standard | Max Bandwidth (Gbps) | Reliable Max Length (m) |
|---|---|---|
| DP 1.4 (HBR3) | 32 | 2 |
| HDMI 2.1 (UHS) | 48 | 2 |
| DP 1.2 (HBR2) | 21.6 | 3 |
| HDMI 2.0 | 18 | 3 |
The Signal Path: Port Integrity and Handshake Failures
Display Stream Compression (DSC) is a visually lossless technology that allows DP 1.4 to support 4K at 144 Hz+; however, if the DSC handshake fails, it can cause the monitor to flicker or revert to a test pattern. A failed DSC negotiation produces instant blackouts that feel like hardware failure.
GPU port health matters. Try a different port on the graphics card first, because mechanical wear or debris on one port can mimic a bad cable. Adapters and docks are frequent culprits; USB-C to DP adapters often drop the link at high refresh rates because they add another point of signal conversion.
A practical diagnostic step is lowering the refresh rate to 60 Hz. If the blackouts stop, the problem is bandwidth or cable related rather than a monitor defect. What Happens When Your GPU Can't Keep Up With Your Monitor's Refresh Rate? explains how refresh mismatches create similar symptoms.
The Firmware Fix: Navigating the 'MERGE.bin' Ritual Safely
Monitor firmware updates can resolve "handshake" issues, Display Stream Compression (DSC) bugs, and compatibility glitches with newer GPUs that cause random black screens or flickering. Firmware should be attempted only after cable and port checks fail and the release notes specifically mention handshake or wake-from-sleep fixes.
KTC monitors use a USB-based update that requires a FAT32-formatted drive under 32 GB and a file renamed to MERGE.bin. Only the labeled Service USB port on the monitor will trigger the bootloader; other ports supply power but do nothing else. During the process, navigate the OSD by pushing the joystick right to select rather than pressing inward, which can power the unit off mid-update.
If the firmware file cannot be found on the official KTC site and the only source is an unverified link, stop. Sub-model variants often have incompatible firmware that can leave the display unresponsive.
Confirming Stability: Stress Testing Your Signal Chain
After any change, verify the link rate and lane count in NVIDIA Control Panel or Windows Display Settings. A stable high-refresh connection shows four lanes running at the full HBR3 rate. Run a motion test such as the Blur Busters UFO test at the target refresh rate to confirm no dropouts occur under load.
Prevent recurrence by avoiding sharp cable bends, keeping signal cables away from power bricks, and using certified short cables. Premium Display Signal Cables for Gaming & Productivity Monitors are built to the required standards for 4K 160 Hz and higher setups.
Users who need maximum stability for demanding titles can explore options such as the KTC OLED 27" 2K 240Hz/0.03ms USB-C Gaming Monitor | G27P6 or the broader 4K Monitor collection, both of which benefit from certified cables.
Frequently Asked Questions
How Can I Tell Whether a Cable Supports My Resolution and Refresh Rate?
Check for the VESA DP8K hologram on DisplayPort cables or the HDMI Ultra High Speed QR code on HDMI 2.1 cables. Software tools that report link rate and lane count provide a second confirmation once the cable is connected.
Will a Firmware Update Fix Flicker or Black Screens on Its Own?
Firmware can resolve handshake and wake-from-sleep bugs, but it cannot correct insufficient cable bandwidth or damaged ports. Run the cable and port checks first so an update is not applied unnecessarily.
What Happens If I Use a Cable Longer Than 2 Meters at High Refresh?
Passive copper cables longer than 2–3 meters often lose signal integrity at DP 1.4 or HDMI 2.1 speeds, producing the same intermittent blackouts seen with uncertified short cables. Active or fiber cables become necessary beyond that distance.
Is It Safe to Update KTC Monitor Firmware Without Official Files?
No. Only firmware obtained directly from KTC for the exact sub-model should be used. Mismatched files can leave the monitor in a non-responsive state that requires service.
Does Lowering Refresh Rate in Windows or the GPU Control Panel Prove the Cable Is the Problem?
Yes. If the monitor remains stable at 60 Hz but disconnects at the higher rate, the signal path cannot sustain the required bandwidth. This isolates the issue to cable, port, or adapter before firmware is considered.
