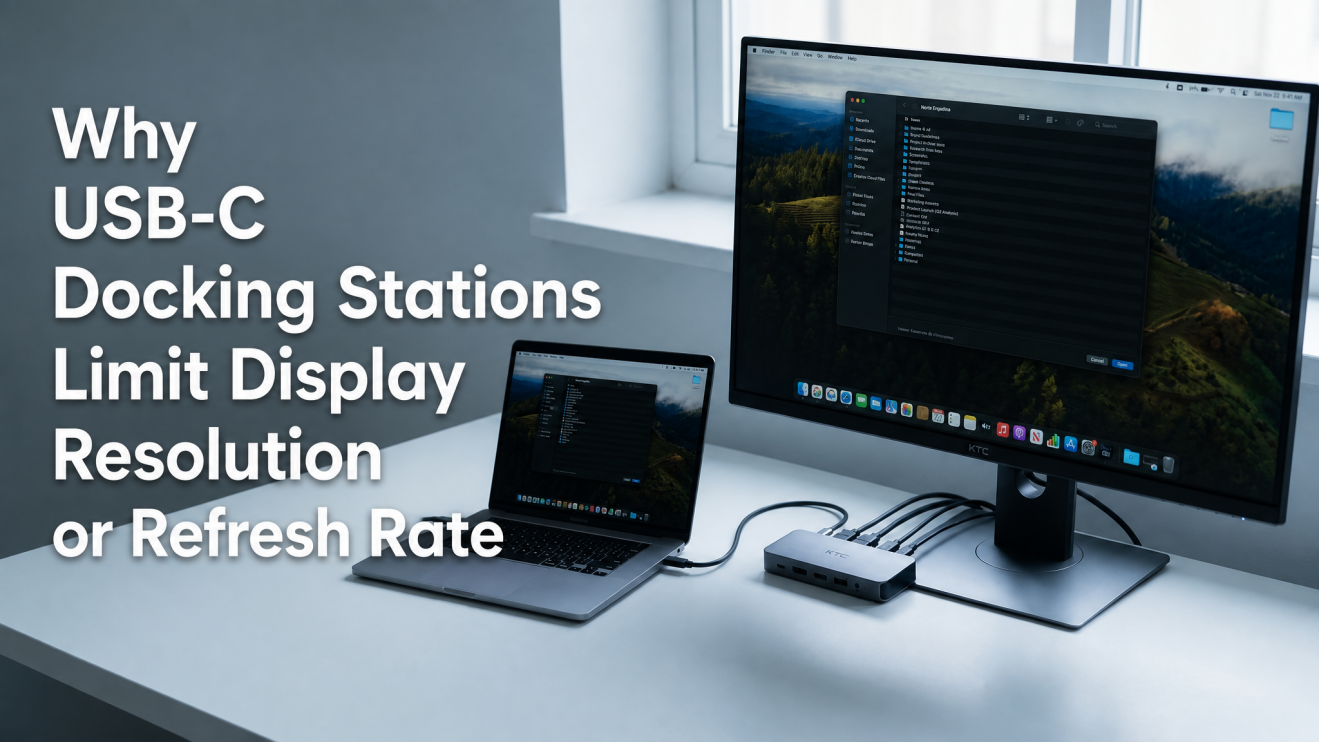

USB-C docking stations limit resolution or refresh rate because display bandwidth is shared among video, data, charging, and connected devices.
The USB-C Port Is Not Always a Display Port
USB-C is a connector shape, not a performance guarantee. Some USB-C ports handle only charging and data, while others support DisplayPort Alt Mode, Thunderbolt, or USB4 video output.
That matters because a dock cannot create native video bandwidth from a laptop port that never sends video in the first place. A USB-C dock needs a host port with DisplayPort Alt Mode or a compatible Thunderbolt/USB4 implementation to drive external monitors properly.
For a performance display setup, check the laptop specs before the dock specs. If the host port is limited to USB 3.x data or lacks video support, a 4K gaming monitor may fall back, flicker, mirror incorrectly, or show no image at all.
Bandwidth Gets Split Across the Dock
A dock is a traffic manager. One cable may carry video output, USB drives, Ethernet, audio, webcam data, keyboard input, mouse input, and laptop charging at the same time.
That single upstream connection has a bandwidth budget. Standard USB-C can be much tighter than Thunderbolt: USB protocols range from USB 2.0 at 480 Mbps to Thunderbolt 3/4 at 40 Gbps.
In practice, one 4K 60Hz display may work fine, but adding a second 4K display, a fast SSD, Ethernet, and USB accessories can force the dock to reduce resolution, refresh rate, or color depth.
For gamers, this is why a 144Hz or 240Hz monitor often performs better through direct USB-C to DisplayPort or Thunderbolt than through a crowded budget hub.
Multi-Monitor Setups Hit Limits Fast
Dual and triple displays are where dock marketing gets tricky. “Supports 4K” may mean one 4K display at 30Hz, not two 4K displays at 60Hz.
Resolution support depends heavily on the host display standard. A DisplayPort 1.2 host generally supports dual 1080p at 60Hz, while a DisplayPort 1.4 host with DSC can support dual 4K displays at 60Hz.
DSC, or Display Stream Compression, helps squeeze higher resolution and refresh rates through limited bandwidth with minimal visible quality loss. Without it, the dock may still connect, but your monitor menu may only offer lower refresh rates.
macOS adds another wrinkle. Some USB-C MST docks that extend multiple independent displays on Windows may only mirror displays on Mac unless they use DisplayLink software or a Mac-compatible Thunderbolt design.
The Cable and Display Output Matter Too
A high-end dock cannot overcome a weak cable or outdated output port. HDMI 1.4, low-quality USB-C cables, and under-specced adapters are common reasons a display gets stuck at 4K 30Hz instead of 4K 60Hz.
For 4K 60Hz, the laptop, dock, cable, and monitor input all need to support that target. One mismatch can produce lower frame rates, black screens, flicker, audio dropouts, or washed-out color.
Quick checks before blaming the monitor:
- Confirm the laptop USB-C port supports video output.
- Use a cable rated for the target resolution and refresh rate.
- Prefer DisplayPort or HDMI 2.0+ for 4K 60Hz.
- Disconnect high-bandwidth extras during testing.
- Update dock firmware, GPU drivers, and OS software.
How to Choose a Dock That Won’t Hold Back Your Screen
Start with your display goal, not the port count. A clean office setup with dual 1080p monitors needs a different dock than a 4K 144Hz gaming display or a creator desk with multiple 4K panels.
For office productivity, a reliable USB-C dock with dual 1080p or dual 4K 60Hz support may be the value sweet spot. For high-refresh gaming or heavy creative work, Thunderbolt or USB4 docks are safer because they provide more bandwidth and stronger display support. Thunderbolt docks can expand a laptop with displays, Ethernet, charging, and peripherals through one cable.
The rule is simple: match the dock to your monitor’s real workload. If your screen is built for speed, color, or multi-display immersion, buy for bandwidth first and extra ports second.
