Why Lower Brightness Causes Monitor Color Banding

Lowering brightness below 50% can expose color banding when a monitor loses smooth tonal steps in dark gradients, especially if its panel, internal processing, or signal path is already close to the limit.

If you have ever dimmed a gaming monitor at night and suddenly noticed stripes in a gray menu, fog effect, or dark sky, you are seeing a real display-chain problem rather than “just your eyes.” Real-world cases include dark-gradient banding across desktop backgrounds, games, and images on a fast gaming monitor, plus setups where dropping from 144 Hz to 120 Hz removed the issue by restoring a cleaner high-bit-depth path. This guide explains why that happens, how to tell whether the fault is in the monitor or the signal chain, and what to look for when buying a gaming, ultrawide, or portable display.

Why Banding Often Shows Up After You Lower Brightness

Brightness does not just change “light output”

A gamma-encoded image does not distribute visible brightness in a straight line, which means dark tones already use fewer perceptually safe steps than many buyers expect. When you lower monitor brightness, those shadow and midtone transitions can become easier to separate by eye, especially in dark menus, smoky scenes, and gray ramps.

On many monitors, the visible problem is not the backlight alone. The issue is that lower brightness can interact with gamma behavior, internal lookup tables, and dithering quality. If those stages are weak, the same gradient that looked acceptable at a brighter daytime setting can break into stripes at night.

Dark scenes are the easiest place to spot weak tonal control

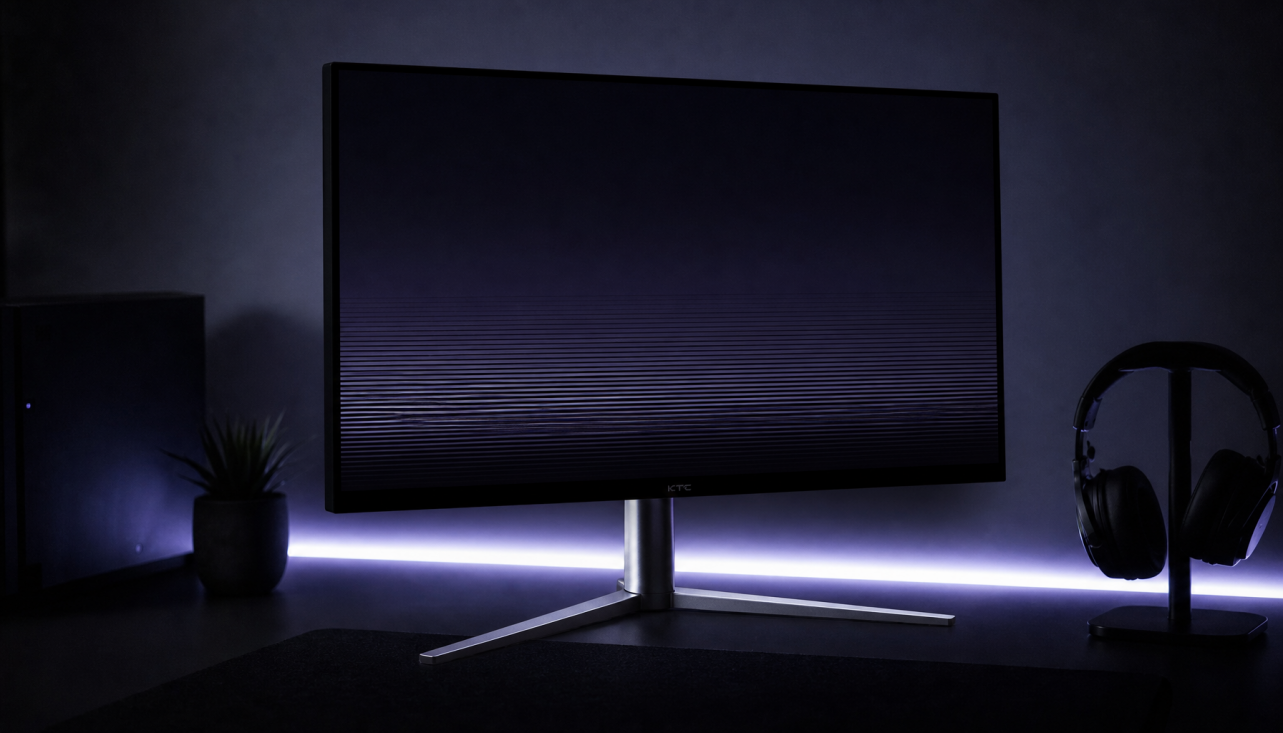

A user report on a gaming monitor model described severe banding mainly in dark gradients, while solid dark colors looked fine and lighter colors looked more normal. That pattern matters: banding usually becomes obvious in transitions, not in single flat colors.

This is why buyers of high-refresh-rate gaming monitors often notice the problem first in loading screens, shadow-heavy games, desktop wallpapers, or HDR test scenes. If you mostly play bright esports titles, a weak monitor can hide the problem until you switch to darker content or lower the room lighting.

What Is Actually Failing: Panel, Processing, or Signal Path?

Bit depth and dithering are usually the core issue

A higher-bit-depth path with proper dithering is what makes gradients look smooth; without effective dithering, extra depth can still leave banding visible, just in denser steps. In practical monitor terms, that means true 10-bit or strong 8-bit+FRC handling tends to hold up better than a weaker panel or sloppy internal processing.

Diagram comparing 8-bit color banding versus smooth 10-bit dithered gradient on a monitor

This is one reason two monitors can show the same wallpaper very differently. One panel may preserve the transition with decent temporal dithering and internal control, while another breaks it into obvious lanes once brightness is reduced and the eye becomes more sensitive to those missing steps.

Refresh rate and bandwidth can change the result

A reported HDR case showed banding at 144 Hz that disappeared at 120 Hz, alongside a change from 10-bit output to 12-bit output. That does not mean 120 Hz is always better. It means some monitor-plus-GPU combinations lose tonal precision when resolution, refresh rate, chroma format, and cable bandwidth are pushed too hard at once.

DisplayPort and HDMI cable connections on a gaming monitor affecting signal path and color depth

For ultrawide monitors and high-refresh displays, this matters more than it does on basic office screens. A 34-inch ultrawide at high refresh is far more likely to stress the signal path, so banding may come from output format, DSC behavior, cable quality, or firmware rather than the panel alone.

Why Some Monitor Types Show the Problem Sooner

Gaming monitors often trade clean gradients for speed

A banding-focused HDR discussion notes that weak bit depth, tone mapping, compression, and bandwidth limits can all turn smooth transitions into stripes. Fast TN or budget IPS gaming monitors can be especially vulnerable because the product is optimized around response time and refresh rate first, not around the cleanest low-level gradient rendering.

KTC gaming monitor displaying dark atmospheric game scene to illustrate color gradient rendering

That does not mean every 240 Hz or 360 Hz monitor bands badly. It means buyers should not assume “premium gaming” automatically includes premium dark-gradient handling. If you play horror games, cinematic single-player titles, or use the monitor for editing, this tradeoff matters.

Portable monitors and basic HDR labels need extra caution

A practical gamma and setup guide recommends starting with standard or sRGB-like modes and gamma 2.2 for everyday desktop use, which is especially relevant for portable monitors that often have limited brightness headroom and simpler image processing. When these panels are dimmed for battery-friendly or nighttime use, weak shadow handling can become more obvious.

Portable displays and entry-level HDR monitors are also more likely to rely on marketing labels rather than strong real-world processing. If the screen cannot maintain smooth transitions in dark tones, lowering brightness makes that weakness easier to notice, not harder.

How to Tell Whether Your Brightness Setting Is the Trigger

Test one variable at a time

A recommended troubleshooting method is to compare SDR and HDR first, then change one variable at a time: refresh rate, cable, connection type, output format, monitor reset, firmware, and power cycle. That is the right order because it separates a monitor defect from a signal-path problem.

In practice, open the same gray ramp, dark wallpaper, or fog-heavy game scene and test it at 30%, 50%, and 70% brightness. Then repeat at different refresh rates. If banding changes when brightness and refresh change together, the cause is probably deeper than a simple backlight adjustment.

User adjusting monitor brightness settings in OSD menu to troubleshoot color banding

Check gamma and dynamic range before blaming the panel

An AVS-style calibration discussion shows how contrast changes can alter grayscale appearance and make patterns look closer to different gamma targets. That does not prove every monitor will band less with lower contrast, but it does show that brightness, contrast, and gamma perception are tightly linked.

Also verify that GPU and monitor output ranges match. In that case, changing the GPU output range only reduced the problem slightly, which is still useful information: if a setting changes the severity but does not remove banding, the monitor may be exposing a real panel or processing limit rather than a simple software mismatch.

What to Look for When Buying a Monitor to Avoid This

Focus on the full chain, not one spec

A buying-oriented HDR breakdown recommends prioritizing real brightness, solid contrast control, enough bandwidth at your target resolution and refresh rate, and mature firmware over a generic “HDR compatible” badge. That advice applies directly to gaming monitors, ultrawides, and portable screens.

For most buyers, the safest approach is to treat smooth dark gradients as a feature category of its own. Ask whether the monitor supports a clean 10-bit or 8-bit+FRC path at the exact refresh rate you plan to use, whether reviewers report banding in near-black scenes, and whether firmware updates have improved image processing.

Quick comparison of the main risk factors

Factor	Lower Risk Choice	Higher Risk Choice	Why It Matters Below 50% Brightness
Panel/output depth	True 10-bit or solid 8-bit+FRC	Weak 8-bit path	More tonal steps survive in dark gradients
Refresh rate setup	Stable mode with full-depth output	Max refresh that forces compromises	Bandwidth limits can reduce color precision
Firmware/image processing	Mature firmware, good tone mapping	Early firmware, weak gradient handling	Internal processing can create visible stripes
Usage mode	SDR/sRGB or well-implemented HDR	Poor HDR mode with bad mapping	HDR makes transition errors easier to see
Monitor type	Reviewed IPS/OLED/mini-LED with strong gradient handling	Budget speed-first gaming panel	Faster panels can sacrifice low-level smoothness
Connection chain	Certified cable and correct output format	Marginal cable or mismatched format	Signal errors can look like panel defects

Practical Next Steps

If you already own the monitor, start by simplifying the chain before replacing hardware. Many cases that look like “bad brightness control” are really a combination of dim-room viewing, weak near-black handling, and a signal mode that is too aggressive for the panel and cable.

Use this checklist:

Test the same dark gradient in SDR and HDR.
Compare 30%, 50%, and 70% brightness in the monitor OSD.
Drop refresh rate one step, such as 144 Hz to 120 Hz, and retest.
Verify GPU output format and dynamic range match the monitor mode.
Try a different cable, especially on ultrawide and high-refresh displays.
Reset the monitor and install the latest firmware if available.
If buying new, favor models with proven gradient handling over a basic HDR label.

FAQ

Q: Does brightness below 50% always cause color banding?

A: No. It mainly exposes banding on monitors that already have weak tonal precision, limited bit depth, poor dithering, or a compromised signal path.

Q: Is this more common on gaming monitors than office monitors?

A: It can be. High-refresh gaming monitors often push bandwidth and response-time priorities harder, so some models show banding sooner in dark gradients than slower, image-first displays.

Q: Will a 10-bit monitor automatically fix it?

A: Not automatically. The panel, firmware, tone mapping, GPU output, refresh rate, cable, and color format all need to preserve that extra precision.
