Can You Run Two 4K 60Hz Monitors From a Single HDMI 2.1 Port Using a Splitter?

Yes, but only if you want both 4K 60Hz monitors to show the same image. A standard HDMI splitter mirrors one HDMI signal; it does not create two independent extended desktops.

Plugged in a splitter, expecting a wide dual-screen command center, only to see the same window on both 4K panels? That confusion is common, and the right hardware choice can save you from buying the wrong adapter twice. Here is the practical way to know whether a splitter, dock, USB-C adapter, or DisplayPort route fits your setup.

The Short Answer: A Splitter Mirrors, It Does Not Extend

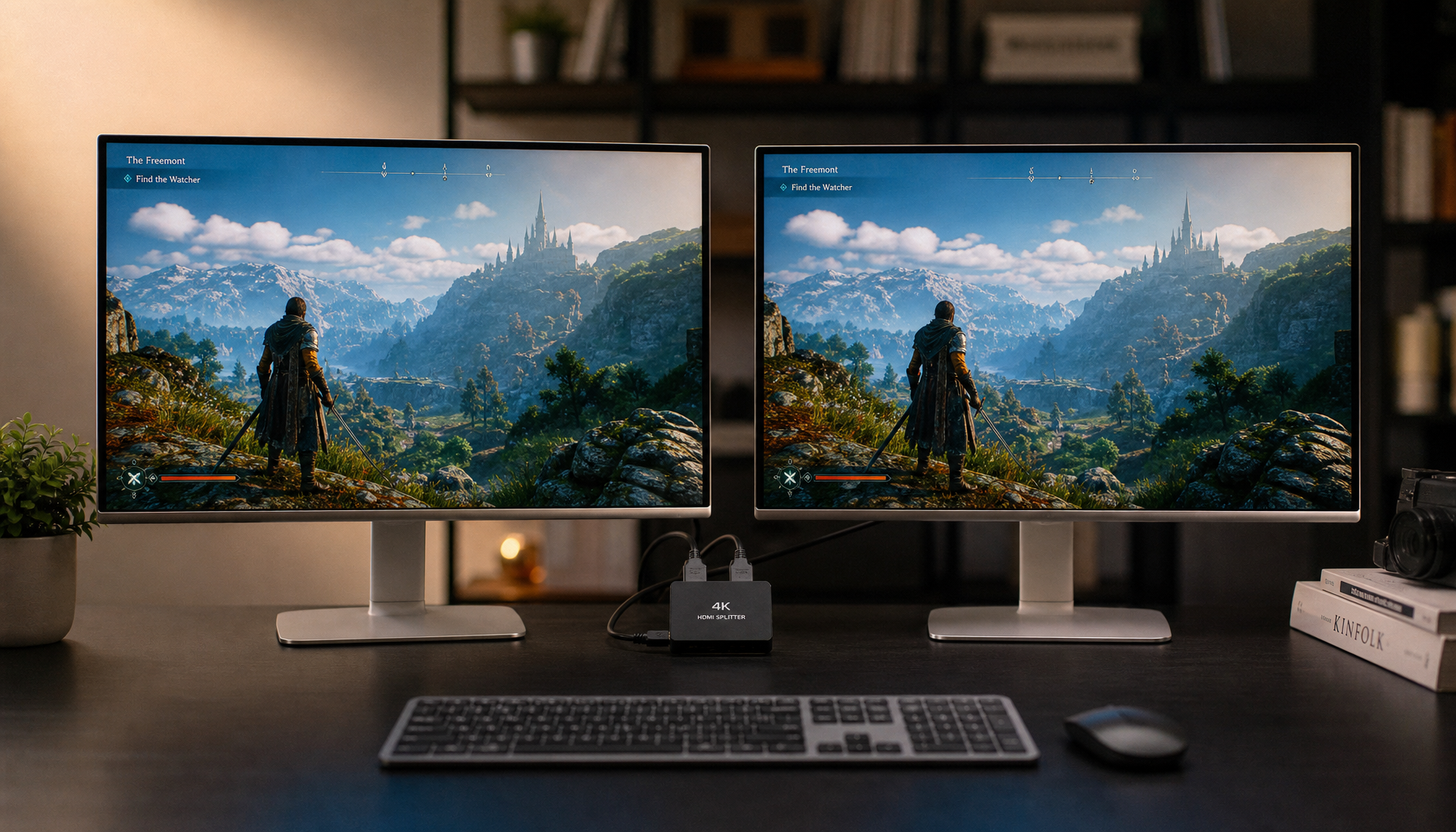

A single HDMI 2.1 port can feed a compatible splitter that sends the same 4K 60Hz signal to two monitors, assuming the source device, splitter, cables, and displays all support that resolution and refresh rate. The important catch is behavior: an HDMI splitter takes one input and distributes the same signal to multiple outputs.

That makes it useful for a gaming demo, training room, trade show booth, streamer preview screen, classroom display, or lobby signage. It is not the right tool if you want chat on one monitor and a game, spreadsheet, trading chart, video timeline, or design canvas on the other.

For extended desktop use, your computer must see two separate display paths. A basic splitter does not add a second display engine. It simply repeats the first signal.

What HDMI 2.1 Changes, and What It Does Not

HDMI 2.1 gives you more bandwidth than older HDMI standards, so the port itself may be capable of high-resolution, high-refresh output. For monitor buyers, that matters because modern display setups increasingly target 4K 60Hz, 4K 120Hz, or higher. Current setup guidance notes that HDMI 2.1 supports 4K at 120Hz+, while DisplayPort 1.4 is also commonly used for high-end monitor connections.

But bandwidth and desktop behavior are different problems. HDMI 2.1 can carry a strong signal, but a splitter still sends one signal to two displays. If your laptop outputs one 4K 60Hz desktop through HDMI, a splitter can duplicate that desktop on two 4K 60Hz screens. It will not turn one HDMI output into two independently addressable monitors.

A real-world example makes this clear. If you connect a console to a 1-by-2 HDMI splitter, both 4K TVs can show the same gameplay. If you connect a laptop the same way, the operating system usually detects one external display path, not two separate monitors you can arrange side by side.

When Two 4K 60Hz Monitors From One HDMI Port Can Work

A splitter can work well when your goal is identical output. Think of a conference room where a presenter wants the same slide deck on a front screen and a confidence monitor, or a gaming setup where the same console feed appears on a monitor and a capture-area display. An HDMI splitter can be a low-cost way to use multiple monitors from one HDMI port, with the major limitation that the screens usually duplicate the same image.

For 4K 60Hz mirroring, do not buy a vague “4K” splitter without checking the refresh rate. Some splitters advertise 4K but only support 4K at 30Hz. For desktop work, 30Hz feels sluggish: mouse movement looks less fluid, window dragging feels delayed, and scrolling text is less comfortable. For productivity displays, 4K 60Hz should be treated as the floor, not a luxury.

The Specs That Decide Whether 4K 60Hz Mirroring Is Stable

The splitter must explicitly support 4K 60Hz on all outputs. Splitter specifications often distinguish models that support 4K 60Hz from models aimed at 4K 30Hz, which matters because a “4K” label alone does not guarantee a smooth desktop experience. A quality splitter should also support HDCP for protected content, because streaming boxes, disc players, and some apps may show a black screen if copy-protection handshakes fail.

Cable quality matters more at 4K 60Hz than at 1080p. The recommended HDMI cables for 4K setups are rated 18Gbps or higher, and a powered splitter is usually more reliable than a passive cable-style splitter. If one monitor flickers or drops out, test each cable directly from the source before blaming the splitter.

Cable length is another practical limit. For a desk setup, keeping each HDMI run short is easy. For a classroom, studio, or conference room, longer runs can introduce signal instability. Classroom AV troubleshooting often starts with fundamentals such as checking the selected input, cable security, adapters, and reconnecting the source when projected video fails, and those same habits apply to splitter troubleshooting.

Why Extended Dual 4K Needs a Different Solution

If your goal is a true dual-monitor workstation, each display needs its own video path. That can come from two GPU ports, a USB-C port with DisplayPort Alt Mode, a high-bandwidth docking connection, a docking station, DisplayPort Multi-Stream Transport, or a USB graphics adapter. A splitter is not designed for that job.

For office and creator workflows, DisplayPort often has the advantage. It is widely used on business-class PCs, workstations, pro monitors, and multi-output graphics cards, and DisplayPort is recommended for multi-monitor setups where high resolution, high refresh rates, or daisy-chaining matter.

A practical laptop setup might use HDMI for the first 4K 60Hz monitor and USB-C with DisplayPort Alt Mode for the second. If the laptop lacks native USB-C video, a USB graphics dock can add displays through USB, though performance depends on the adapter, driver, and workload. For gaming or color-critical editing, direct GPU outputs are usually preferable because they reduce compression, latency, and driver complexity.

Pros and Cons of Using an HDMI Splitter

The main advantage is simplicity. A powered 1-by-2 splitter is usually plug-and-play, easy to hide behind a desk, and cheaper than a full dock. For mirrored content, it can be clean and reliable. In AV spaces, HDMI is broadly compatible across TVs, projectors, meeting room displays, and general-purpose screens.

The tradeoff is control. You lose the expanded workspace that makes dual monitors valuable for most productivity users. You may also run into resolution negotiation issues when the two monitors are not identical. If one display supports 4K 60Hz and the other only supports 1080p or 4K 30Hz, the splitter may fall back to a shared mode that both displays can accept.

There is also cable clutter. A splitter adds a power cable, one input cable, and two output cables. For a permanent signage or presentation setup, that is fine. For a clean creator desk or gaming station, a dock or graphics card with separate outputs is usually more elegant.

Best Setup Recommendations by Goal

If you want both monitors to show the same 4K 60Hz image, buy a powered 1-by-2 HDMI splitter that clearly states 4K 60Hz support, HDCP compatibility, and preferably EDID management. Use certified high-speed HDMI cables, keep runs short when possible, and match the monitors’ resolution and refresh settings.

If you want a normal dual-monitor desktop, skip the splitter. Use one HDMI cable per monitor when your computer has enough outputs. If it does not, use USB-C with DisplayPort Alt Mode, a high-bandwidth docking connection, a capable docking station, or a USB-to-HDMI adapter. Dual-monitor setup stability depends on compatible cables, ports, monitor specs, software settings, and drivers.

If you are building a high-performance gaming or creative setup, connect the primary monitor directly to the GPU whenever possible. For a 4K 144Hz or 4K 120Hz main display, avoid routing through a basic splitter unless you are intentionally mirroring and the splitter is rated for the exact mode you need.

Quick Troubleshooting for 4K 60Hz Splitter Problems

If both screens show the same content but only at 30Hz, check the splitter’s real spec first. Then check whether both monitors are set to 4K 60Hz, whether the source device supports that mode, and whether every HDMI cable in the chain is rated for the bandwidth.

If one screen stays black, swap the two output cables. If the problem follows the cable, replace the cable. If the problem stays with the same monitor, test that monitor directly from the source. Splitter troubleshooting often comes back to the same core distinction: an HDMI splitter is for duplicated output, while independent monitors require a source that can produce independent outputs.

If streaming apps fail but the desktop appears, suspect HDCP compatibility. Use a splitter that specifically supports the HDCP version required by your source and display chain.

FAQ

Can an HDMI 2.1 splitter give me two separate desktops?

No. A basic HDMI splitter duplicates one signal. To extend your desktop, your computer needs another independent display output through HDMI, DisplayPort, USB-C video, a high-bandwidth docking connection, a dock, or a USB graphics adapter.

Can I run two 4K 60Hz monitors from one HDMI 2.1 port for gaming?

Yes, if you only want mirrored gameplay and every device in the chain supports 4K 60Hz. For competitive play, test latency and stability before relying on the splitter, especially if capture devices or mixed displays are involved.

Why does my 4K splitter only show 30Hz?

The splitter may only support 4K 30Hz, one of the displays may be negotiating a lower mode, or a cable may not support the needed bandwidth. “4K” on the box is not enough; look for “4K 60Hz” in the actual specification.

Is DisplayPort better than HDMI for two monitors?

For many PC workstations, yes. DisplayPort is often stronger for high-resolution multi-monitor setups, daisy-chaining, and high refresh rates. HDMI remains excellent for TVs, consoles, meeting rooms, and broad compatibility.

Final Verdict

Use an HDMI 2.1 splitter for mirrored 4K 60Hz output, not for a true dual-monitor workspace. If your goal is productivity, gaming control, or creative immersion across two independent 4K screens, invest in separate display paths instead of trying to make one HDMI signal do two jobs.
