Usually, monitor video input labels cannot be customized unless the monitor’s on-screen display specifically includes an input rename feature. For most gaming monitor setups, faster switching comes from fixed port planning, shortcut controls, auto-switch settings, device-sharing features, or an external video switch.
Ever turn on a console and wonder whether “video input 1” is the game console, another game console, handheld console dock, capture card, or work laptop dock? A simple port map plus one reliable switching method can cut the guesswork down to one or two button presses. Here is how input labels really work on monitors, why they differ from device names, and how to build a cleaner switching setup for console and PC gaming.
Why Most Monitor Video Input Labels Stay Generic
Most gaming monitors identify sources by physical port type, so the source menu usually shows names like video input 1, video input 2, a display interface, USB-C, or Type-C. That naming reflects the monitor’s own hardware layout, not necessarily the console or PC connected to it. A digital video interface carries video and audio over one cable, and it is widely used across TVs, computer monitors, projectors, consoles, and PCs digital video interface.
That matters because the monitor’s OSD is usually controlled by monitor firmware. If the manufacturer added a “rename input,” “source label,” or “input alias” menu, you may be able to change video input 1 to “Console 1” or video input 2 to “Console 2.” If that setting is missing, the monitor normally keeps its fixed labels even when the connected device is obvious to you.
Why the Console Name Does Not Always Appear
Digital video connections include communication features that let devices exchange display capability information, but that does not guarantee the monitor will show a friendly device name in the source menu. For example, a console may learn that your display supports 4K at 120 Hz, variable refresh rate, or high dynamic range, while the monitor still displays the source simply as “video input 1.” The handshake is about compatibility and signal negotiation first, not a promise of user-customized labels.
This is especially common on high-refresh-rate monitors where the OSD is built around fast source selection, refresh-rate modes, adaptive sync, and color presets. A 27-inch gaming monitor with two video ports and one display input may expose those ports as fixed labels because that is enough for signal routing. The downside is practical: if you connect a current-generation console, another current-generation console, gaming PC, and work laptop, the menu becomes a memory test.

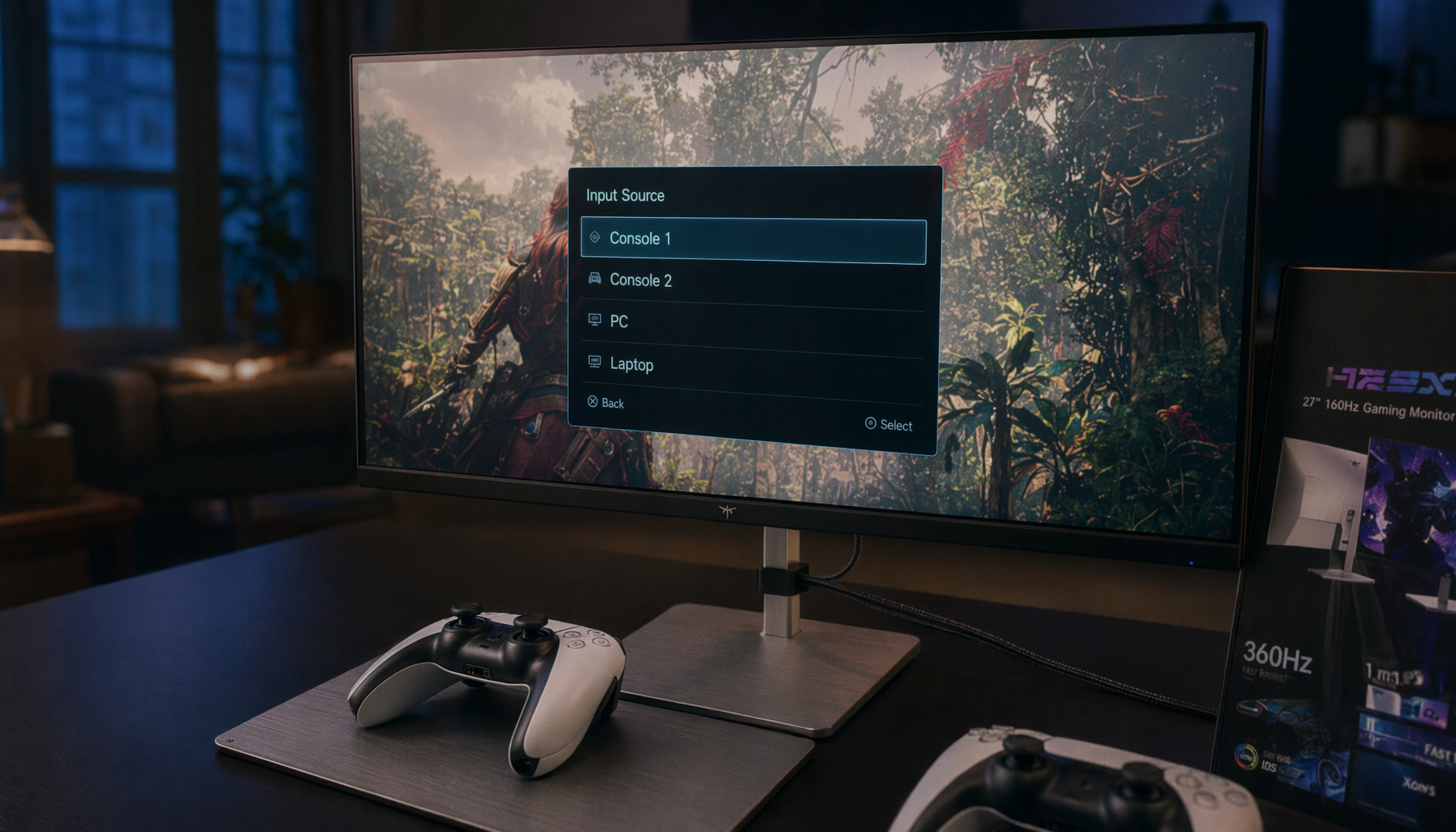

Can Your Monitor Rename Video Inputs?
The short answer is: only if the monitor firmware allows it. Check the OSD for terms such as “Input Label,” “Rename Source,” “Source Name,” “Port Name,” “Quick Source,” or “Favorite Input.” Some monitors include this under System, Input, or General settings, while others never offer it.
A useful test is to open the source menu and look for an edit icon, text field, or preset label list. If the only options are video input 1, video input 2, a display interface, USB-C, Auto, and Off, the labels are almost certainly fixed. In that case, changing the console name on the console itself will not rename the monitor’s video input.
Where Renaming Helps Most
Input renaming is most useful when the monitor has at least three active sources. For example, a realistic gaming desk might use a display interface for a gaming PC at 240 Hz, video input 1 for a current-generation console, video input 2 for a handheld console dock, and USB-C for a work laptop. In that setup, labels like “PC,” “Console 1,” “Console 2,” and “Laptop” are faster to scan than port numbers.
If your monitor supports custom labels, keep them short. Console names with 3-8 characters are easier to read in cramped OSD menus than long names such as “Living Room Console.” Use “Console 1,” “Console 2,” “Dock,” “PC,” “Laptop,” or “Work.” Short names also reduce the chance that the OSD truncates the label.
What to Do If Renaming Is Missing
If renaming is not available, treat the physical ports as a fixed map. Put your highest-performance device on the port that supports the best mode, then label around that. For many gaming desks, that means keeping the gaming PC on a display interface for high refresh rates, placing the main current-generation console on the strongest video port, and assigning lower-bandwidth devices to secondary video inputs.
A simple cable tag works better than it sounds. Add a small label near the monitor end of each video cable: “Input 1 Console,” “Input 2 Dock,” or “Display PC.” This does not change the OSD, but it prevents accidental unplugging and makes troubleshooting easier when a console falls back to 60 Hz or the laptop dock steals the signal.
Why Auto Input Switching Often Feels Unpredictable
Automatic input switching does not read your mind. It usually reacts to signal presence, a new connection event, or a clean wake event rather than your actual intent automatic input switching. If two sources are already active, the monitor may choose based on scan order, default input, firmware behavior, or whichever signal looked newest.
This explains a common gaming-monitor problem: your console turns on and pulls the monitor away from your PC input, but when the console shuts down, the monitor does not reliably return to the PC. The PC signal was already running, so the monitor may not see a fresh event that tells it to switch back. The result can be a black screen, “No Input” message, or a few seconds of flicker while the monitor scans ports.
Device Control Helps, But It Is Not a Cure-All
Some displays and consoles use device-control features, often branded as device link or video control, to send control commands over a video cable. Smart displays may combine signal sensing and device control to switch inputs when a console powers on device-control commands. In practice, device control tends to behave best with direct video connections and simple one-source setups.
Gaming desks are rarely that simple. Device-sharing switches, video switches, capture cards, docks, adapters, and long cable runs can delay or block the handshake that tells the monitor a source has changed. If your console is connected through a capture card and then a video switch before reaching the monitor, input detection may be slower or less consistent than a direct cable connection.
Sleep and Wake Can Break the Pattern
Sleep behavior is another reason labels alone do not solve switching. A docked laptop waking up over USB-C can look like a new source event. A console in rest mode may continue presenting enough signal that the monitor never sees a clean disconnect. A PC waking from sleep may renegotiate its display connection and temporarily fall back to 60 Hz or 30 Hz before restoring the intended mode.
For high-refresh-rate displays, this is more than a minor annoyance. If a 240 Hz gaming PC falls back to 60 Hz after an input switch, check the graphics control panel and monitor OSD before assuming the cable failed. Link renegotiation problems can appear as missing refresh-rate options, black screens, or the wrong input being selected after standby.
Best Switching Methods for Console and PC Setups
There is no single best method for every desk. The right choice depends on how many devices you use, whether you need 4K at 120 Hz, whether you share a keyboard and mouse, and how often you switch during the day.
Switching option |
Best for |
Strength |
Tradeoff |
Custom input labels |
Monitors with rename support |
Makes the OSD easier to read |
Only available on some firmware |
Manual OSD source shortcut |
Two to four sources |
Reliable and simple |
Requires button presses or joystick navigation |
Auto input switching |
One main device plus one console |
Convenient when signals are clean |
Can choose the wrong active source |
Monitor device-sharing feature |
PC plus work laptop, sometimes console-adjacent setups |
Shares USB devices with display input |
Not every device-sharing setup supports every refresh-rate mode |
External video switch |
Multiple consoles on one monitor input |
One-button console switching |
Must match bandwidth needs such as 4K at 120 Hz |
Cable labels and port map |
Any multi-device setup |
Cheap, clear, and durable |
Does not change on-screen names |
If you switch between a gaming PC and one console, start with the monitor’s built-in source shortcut. Many gaming monitors let you assign a joystick direction or rear button to input selection. That is often more predictable than auto-detect, especially if the PC stays awake while the console powers on.
If you have two or three consoles, an external video switch can be cleaner than filling every monitor port. Choose one that supports the modes you actually use. For a current-generation console at 4K and 120 Hz, look for a current-generation video switch with high-bandwidth cable support; for a handheld console dock, basic video bandwidth is less demanding because the output target is much lower.
A Practical Port Plan
A strong default layout for a mixed gaming desk is:
- Display input: Gaming PC, especially for 144 Hz, 165 Hz, 240 Hz, or higher modes
- Video input 1: Main console, such as a current-generation console
- Video input 2: Secondary console, capture card, or streaming device
- USB-C: Work laptop, if the monitor supports USB-C video and charging
- USB upstream/device sharing: Keyboard, mouse, webcam, or headset routing where supported
This layout keeps the highest-refresh PC path separate from console video switching. It also makes the OSD easier to memorize: display input equals PC, video input 1 equals main console, video input 2 equals secondary console, USB-C equals laptop. Even without custom labels, the pattern becomes consistent.
If one source is a USB-C PC or laptop, a monitor with a built-in device-sharing feature, such as a USB-C gaming monitor, can reduce keyboard and mouse switching; the console video ports still need a manual map because the OSD may continue to show video input 1 and video input 2.
Setup Checklist for Easier Input Switching
Use this checklist before replacing cables, switches, or the monitor itself:
- Check the OSD for an input rename or source label menu.
- Assign your highest-performance device to the port that supports its best refresh rate and resolution.
- Disable auto input switching for one full workday or gaming session to see whether manual switching is more reliable.
- Test each console with a direct video connection before adding docks, switches, capture cards, or adapters.
- Use high-bandwidth video cables for current-generation consoles when targeting 4K at 120 Hz.
- Add physical cable labels near the monitor side of each cable.
- Update monitor firmware if the manufacturer provides a relevant input-switching or compatibility update.
The most important step is isolation. Test one device at a time after sleep, wake, and full shutdown. Monitor auto-switching problems often come from the interaction between devices, not from a single bad video port.
If your monitor has input priority settings, set the default source deliberately. For example, a desk used mostly for PC work should default to the PC input, while a console-first desk might default to video input 1. That way, when auto-detect gets confused, the fallback behavior still matches your normal routine.
Common Mistakes to Avoid
One common mistake is assuming that a console’s name should appear automatically because a video interface carries device communication. Digital video standards have supported many compatibility and control features over their long life, and nearly 14 billion compatible devices had been sold worldwide by January 2026 compatible devices. But broad video-interface support does not mean every monitor OSD exposes custom names.
Another mistake is using a switch, capture card, or dock before proving the direct connection works. If the console switches correctly with a direct cable but fails through an accessory chain, the problem is likely handshake timing or bandwidth support. Shorten the chain first, then add one component back at a time.
A third mistake is relying on ultrawide window-splitting software for two-system use. Window management software can divide one computer’s desktop into zones, but it does not turn one monitor into two independent displays from two different devices. For that, you need monitor-level Picture-by-Picture support, and even then, refresh rate, aspect ratio, and input limitations may apply.
FAQ
Q: Can I rename video input 1 to “Console” on any gaming monitor?
A: No. You can only do this if the monitor’s OSD firmware includes an input rename or source label feature. If the setting is missing, video input 1 and video input 2 usually remain fixed physical port names.
Q: Why does my monitor switch to my console but not back to my PC?
A: The console power-on event may look like a new signal, while the PC was already active in the background. Many monitors react to fresh signal events, so they may switch to the console but fail to return to an already-running PC source.
Q: Is a video switch better than monitor input labels?
A: For multiple consoles, often yes. Labels make the OSD easier to read, but a video switch can reduce three console inputs to one monitor input and one external button. Just make sure the switch supports the resolution, refresh rate, high dynamic range, and variable refresh rate features you need.
Practical Next Steps
If your monitor supports custom labels, rename the inputs with short names and keep your port layout consistent. If it does not, do not fight the firmware: create a fixed port map, use the monitor’s input shortcut, and label the cables physically.
For most console-and-PC gaming desks, the cleanest setup is a dedicated display input for the gaming PC, video input 1 for the main console, video input 2 or a video switch for secondary consoles, and USB-C for a laptop if needed. Turn off auto input switching if it keeps choosing the wrong device, then re-enable it only if your direct-cable tests prove it behaves consistently.
