Why Does My Portable Monitor’s Touchscreen Only Work in Mirror Mode, Not Extended Mode?

Your portable monitor’s touch input is probably mapped to the wrong display, or the touch data cable is not being recognized as a separate input path in extended mode.

Tap your portable screen and the cursor jumps on your laptop instead? That is the classic extended-display mismatch: the image is on screen two, but the touch coordinates are still assigned to screen one. A clean remap usually restores accurate touch control in minutes, and this guide shows how to separate display, power, and touch input so the monitor behaves like a true second workspace.

The Short Answer: Video and Touch Are Separate Signals

Mirror mode hides many touchscreen setup problems because both displays show the same image. When you tap the portable monitor, the operating system can send that touch to the main display and it still appears correct because both screens match.

Extended mode exposes the mismatch. Your laptop display and portable monitor now have different coordinate spaces, so the operating system must know which physical screen receives touch. If it assigns the touchscreen digitizer to the laptop panel, your tap on the portable monitor moves the cursor or activates items on the wrong screen.

The other common cause is cabling. A portable touch display may show video through HDMI while touch needs a separate USB data connection. HDMI carries image and sound, but not touchscreen input; several portable monitor setup resources note that HDMI plus USB-C-to-USB-A is often required when USB-C is not handling everything in one cable.

Why Mirror Mode Works When Extended Mode Fails

Mirror mode is forgiving. Since both screens show identical content, the operating system does not need perfect touch-to-display mapping for the result to feel right. You tap a button on the portable display, and the same button exists in the same position on the laptop display.

Extended mode gives you real extra workspace for timelines, dashboards, notes, chat, code, or game controls. But that extra workspace requires correct display arrangement and touch association.

A real-world example makes the issue obvious. If your laptop is 1920 x 1080 and your portable monitor is also 1920 x 1080, mirror mode creates one shared 1920 x 1080 touch surface. In extended mode, the system may treat the combined desktop as 3840 x 1080. If touch is still mapped to the first 1920 pixels, tapping the portable monitor can trigger the laptop side instead.

This is not a sign that the touch panel is defective. A support case around a multi-monitor setup points to the same class of problem: after display configuration changes, touch input may need to be recalibrated or remapped to the correct monitor.

The Connection Type Matters More Than the Connector Shape

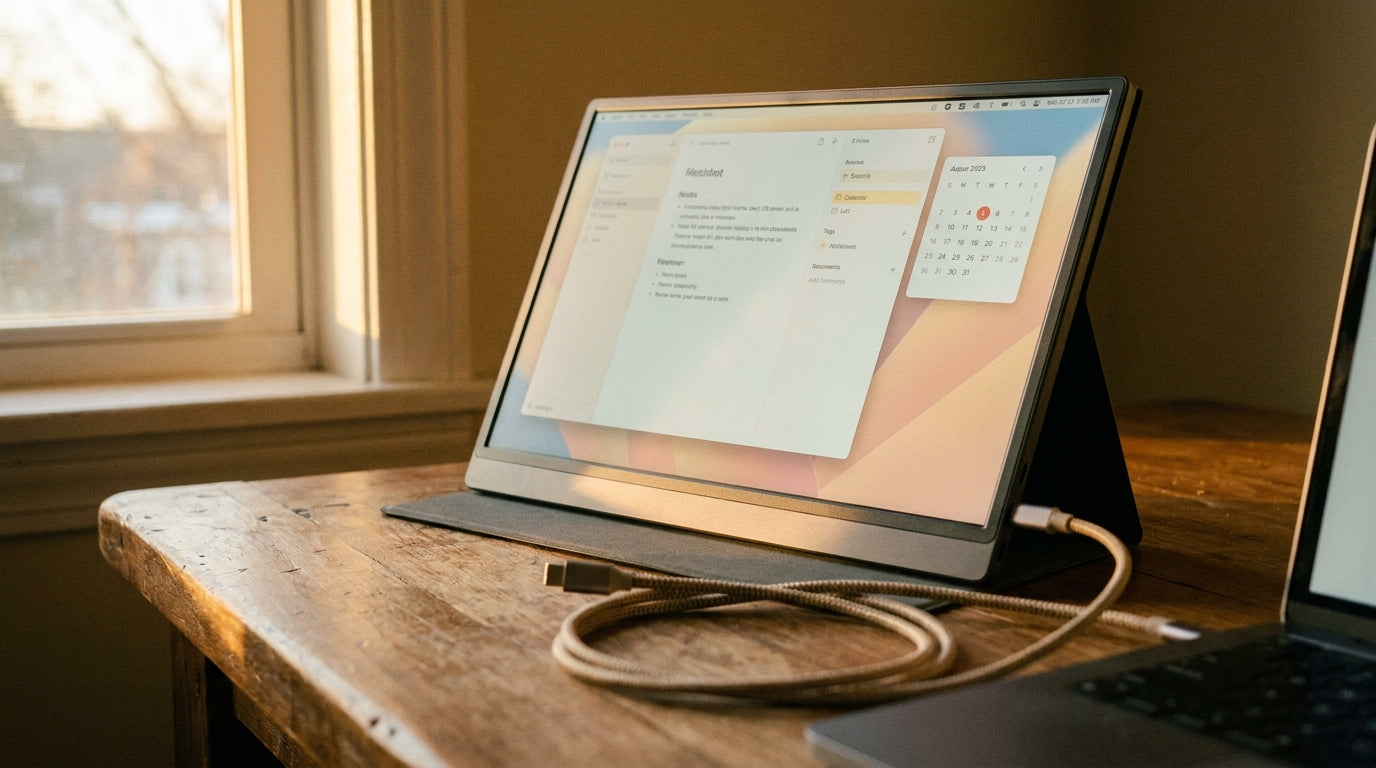

USB-C can be excellent for portable touchscreen monitors because one cable may carry video, power, and touch data. The catch is that USB-C describes the plug shape, not the capabilities behind it. A charging cable can fit perfectly and still fail to carry video or touch data.

For one-cable operation, the laptop port, monitor port, and cable must all support the needed functions. Portable monitor resources repeatedly emphasize that DisplayPort Alt Mode or comparable display support is what lets USB-C handle video output. For touch, the same cable path must also carry USB data.

With HDMI, the workflow changes. HDMI is often reliable for video, especially with older laptops, consoles, and desktops, but touch normally needs a second USB cable. Support notes for touch portable monitors make the distinction plainly: HDMI alone carries audiovisual data and will not enable touch input.

First Fix: Remap Touch to the Portable Monitor

On a PC, leave the monitor connected in extended mode before calibrating. Open the Start menu, search for “Calibrate the screen for pen or touch input,” then open Tablet PC Settings. Choose Setup, follow the prompt, and touch the portable monitor when asked which screen is the touchscreen. If the prompt appears on the wrong display, press Enter until it appears on the portable monitor, then tap that screen.

After mapping, test with simple targets. Put a browser window or calculator on the portable display and tap the close button, address bar, and corners. If each tap lands accurately on the portable monitor, the mapping is fixed.

If touches are slightly offset rather than landing on the wrong display, run calibration from the same Tablet PC Settings window. Offset touch is a different problem than wrong-screen touch. Wrong-screen touch means the digitizer is associated with the wrong display; offset touch means the correct display is selected but the coordinate alignment is poor.

Second Fix: Confirm the Touch Data Path

If the computer never detects touch from the portable monitor, remapping will not help yet. Check the physical connection first. For a USB-C-only setup, use the original monitor cable or a certified full-feature USB-C cable. For HDMI setups, connect HDMI for video and the USB cable for touch data.

A practical test is to unplug the HDMI cable while leaving USB connected, then check Device Manager under Human Interface Devices for a HID-compliant touch screen entry appearing or disappearing as you reconnect the USB cable. If nothing changes, the USB cable may be power-only, plugged into the wrong monitor port, or blocked by a dock.

Some portable monitors have separate USB-C ports for power and signal. Using the power-only port can make the display light up while the touch controller never reaches the computer. Troubleshooting notes stress that USB-C capabilities vary across power-only, data, and full-feature video paths, so the port label and cable spec both matter.

Third Fix: Stabilize Power Before Blaming Drivers

Touch failures can look like software bugs when the real issue is weak power. Portable displays often dim, disconnect, flicker, or drop touch when they are powered only by a laptop port that cannot supply enough current.

If your monitor works in mirror mode but loses touch after switching to extended mode, connect the monitor to its own USB-C power adapter while keeping the video and touch data connected. This is especially useful with bright 15.6-inch and 16-inch touch models, where the display panel and capacitive digitizer are both drawing power.

Portable monitor guidance notes that brightness or volume above 70% may require external power of at least 5V/2.0A. For a work-focused desk setup, a dedicated USB-C PD charger is usually more reliable than hoping the laptop, dock, and monitor negotiate power perfectly through one cable.

Extended Mode Is Still the Better Productivity Setup

Duplicate mode is useful for presentations, training, and side-by-side sharing. It is also a quick diagnostic mode because it proves that basic touch hardware can respond.

Extended mode is the mode you want for serious work. It gives you real screen space, not just a copy. A portable touchscreen becomes valuable when you can keep a reference document on one side, annotate a design on the touch panel, drag tools away from your main canvas, or run streaming controls without covering the game or creative app.

The tradeoff is setup complexity. Extended mode needs correct screen arrangement, native resolution, touch mapping, and stable cabling. That extra five minutes of configuration pays back quickly because the display stops acting like a novelty accessory and starts acting like a controlled workspace.

When the Host Device Is the Limitation

Recent PC operating systems usually offer the best portable touchscreen support. Some desktop systems can display to many portable monitors, but touch support may be limited or require vendor software. In some cases, users need a separate touch driver because the operating system does not natively communicate with every third-party touch workflow.

Phones and tablets are more inconsistent. Many devices need desktop-display support, and device troubleshooting guidance uses safe mode to isolate whether an app is causing touch behavior problems on the device itself. Some tablets and phones may output video through adapters or USB-C, but portable monitor touch input often remains unavailable depending on the monitor and operating system.

For buying decisions, this is where value and reliability matter. A 15.6-inch or 16-inch Full HD portable touchscreen with capacitive 10-point touch and full-feature USB-C support is usually the most balanced choice for work, note-taking, light creative review, and travel. Higher resolution can look sharper, but it also increases bandwidth and power demands, which can make troubleshooting harder.

When to Reset the Monitor

If cabling, mapping, and power all check out, reset the monitor’s internal settings. A soft reset is the clean first step: disconnect power, HDMI, USB-C, and any accessories, hold the power button for 10 to 15 seconds, wait at least 30 seconds, then reconnect only the essential cables.

For persistent problems, use the monitor’s on-screen menu and choose Factory Reset or Restore Defaults. Reset guidance separates soft resets and hard resets, with factory reset reserved for issues that survive a normal power cycle.

After a reset, rebuild the setup in order. Connect power first if the monitor needs it, then connect video, then connect touch data, then switch the system to Extend, then remap touch. Changing one variable at a time is slower than swapping everything at once, but it gives you a clean answer.

Quick Diagnostic Table

FAQ

Does a portable touchscreen need a driver?

Often, no. Many PC systems recognize portable touchscreens as HID-compliant touch devices. However, advanced gestures, stylus features, some desktop operating systems, and certain multi-monitor setups may require manufacturer software.

Why does the cursor move on my laptop when I touch the portable monitor?

The operating system has assigned the portable monitor’s touch controller to the laptop display. The fix is not mirror mode; it is remapping touch input to the correct display while the system is already set to extended mode.

Can one USB-C cable really handle everything?

Yes, but only when the laptop port, monitor port, and cable all support video, power, and USB data. If any part of that chain is charging-only or power-only, you may get partial function instead of a complete touchscreen setup.

A portable touchscreen should feel immediate, precise, and productive in extended mode. Treat video, power, and touch as three separate paths, map touch deliberately, and use a cable setup that matches the workload. That is how a second screen becomes a real control surface instead of a mirrored convenience.
