A portable monitor showing only half the screen over USB-C is usually caused by a broken signal chain involving the port, cable, power, display mode, driver, or firmware.

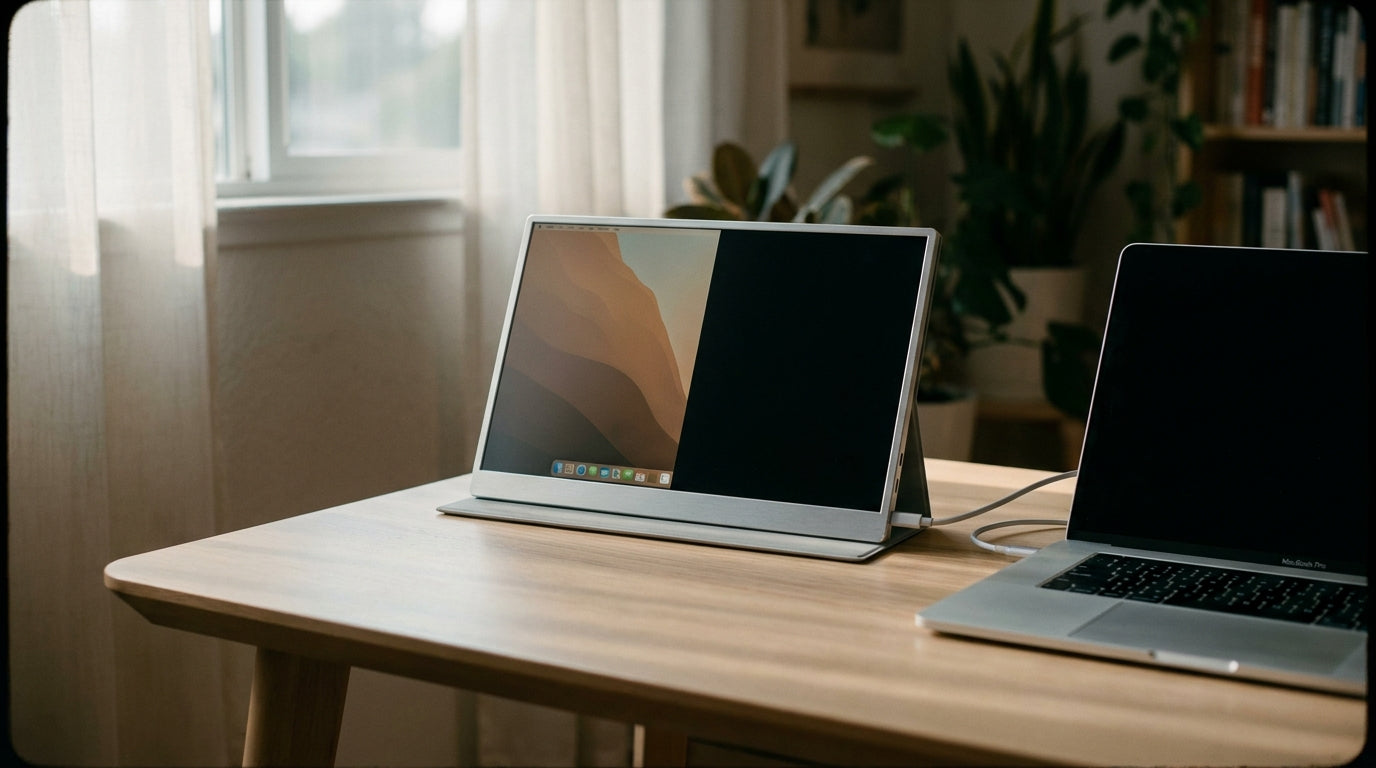

Is your portable monitor suddenly showing the desktop on only the left or right half, with the rest black, frozen, stretched, or duplicated? A direct cable swap, power reset, and manual resolution check can usually separate a bad USB-C link from a failing panel in minutes.
Why “Half the Screen” Happens Over USB-C
USB-C is powerful, but it is also easy to misunderstand. The oval connector does not automatically mean the connection can carry video, enough power, and stable high-bandwidth data at the same time. A portable monitor may light up because it is receiving power, yet still render only part of the desktop because the video signal is incomplete, unstable, or being interpreted incorrectly.
The most common failure point is the video chain. A portable display depends on the source device, USB-C output port, cable, monitor input port, selected input mode, and operating system display settings all agreeing at once. KTC’s troubleshooting framework explains that a “No Signal” state often means the screen has power but is not receiving valid video, and the same logic applies when the image is partial rather than fully missing video chain.
In hands-on display support, a half-screen symptom often appears after a setup change: a new hub, a shorter charging cable, an operating system update, a laptop battery running low, or a monitor being rotated between landscape and portrait. The panel may look defective, but the smarter first move is to prove whether the monitor can show a full image from another source.
The USB-C Port May Not Support Full Video
A USB-C port can be charge-only, data-only, or full-featured with video output. For portable monitors, the key capability is usually DisplayPort Alt Mode, USB4, or Thunderbolt. If the laptop’s USB-C port does not support video output, the monitor may power on, flicker, show a partial frame, or fail entirely.
Unsupported USB-C video output is a common reason hubs fail to detect monitors, especially when users assume every USB-C port behaves the same DisplayPort Alt Mode. The practical test is simple: check the laptop spec sheet for DisplayPort Alt Mode, Thunderbolt, USB4, or a display icon near the port. If the device has two USB-C ports, test both, because manufacturers often assign different capabilities to each one.
For example, a laptop’s left USB-C port may charge and transfer files, while the right port supports display output. Plugging the portable monitor into the wrong side can produce confusing results because the screen may receive power but not a clean image. If HDMI works but USB-C does not, the panel is probably fine and the USB-C route needs closer inspection.
The Cable Is Charging, But Not Carrying Enough Video
The cable is the highest-value suspect because it is cheap, exposed to travel wear, and often mislabeled. A cell phone charging cable can fit perfectly and still lack the wiring or bandwidth required for video. Even when it carries video, a weak cable can fail at higher resolutions or refresh rates, causing half-screen rendering, brief blackouts, low resolution, or artifacts.
Cable problems are a frequent hardware issue, so use the original monitor cable or a certified cable labeled for 4K video, DP Alt Mode, Thunderbolt 3/4, or high-speed USB-C operation certified cable. For a productivity display running 1080p at 60 Hz, the bandwidth requirement is modest. For a 2K, 4K, OLED, or high-refresh portable gaming monitor, a marginal cable becomes much easier to expose.
Use this performance-minded rule: if the monitor works over HDMI, or works over USB-C only after lowering resolution, the cable or adapter is likely underqualified. For a portable gaming screen, do not troubleshoot at 144 Hz or 300 Hz first. Set the output to 1080p at 60 Hz, confirm full-screen stability, then step back up.
Symptom |
Likely Cable Issue |
Practical Fix |
Half image at 2K or 4K |
Bandwidth limit or poor shielding |
Try a full-feature USB-C or Thunderbolt cable |
Works when touched or angled |
Worn connector or loose plug |
Replace cable and inspect ports |
Powers on but no proper image |
Charge-only cable |
Use the monitor’s original video-capable cable |
Flickers under load |
Weak cable or power instability |
Add external monitor power and retest |
Power Delivery Can Break the Image Before the Panel Fails
Portable monitors often rely on the same USB-C cable for power and video. That is convenient, but it can also create unstable behavior. If the laptop cannot supply enough power, or if a hub is dividing power among storage drives, keyboards, Ethernet, and the monitor, the display may dim, reset, disconnect, or render incorrectly.
KTC notes that power instability can cause blank screens, dimming, or connection drops, especially when a USB-C port cannot provide steady power. A useful troubleshooting benchmark is to give the portable monitor its own dedicated USB-C power source, with 45 W or more suggested for diagnosis and 65 W or higher as a stronger stability example.
For a one-cable desk setup, the clean calculation is not just “does it turn on?” It is “does the laptop, hub, and monitor still have enough stable power after everything else is connected?” If the half-screen issue disappears when the monitor gets separate wall power, the root cause is not the LCD panel. It is the power negotiation path.
The Monitor Input Port May Be the Wrong One
Many portable monitors have more than one USB-C port, and those ports may not do the same job. One port may be for power input only, while another accepts video. This matters because the screen can appear alive, yet still fail to render a full desktop.
Portable monitor troubleshooting advice often emphasizes reseating HDMI or USB-C, choosing the correct input source, and updating graphics or monitor drivers when no-display or unstable display issues appear correct input source. In practice, manually selecting USB-C, HDMI, or DisplayPort in the monitor’s on-screen menu is more reliable than waiting for auto-detect.
This is especially important when switching between a laptop, handheld console, phone, and mini PC. A monitor that last used HDMI may not automatically re-handshake correctly over USB-C. If you see half a desktop, a stretched image, or a black band, open the monitor menu and confirm both input and aspect ratio before replacing hardware.
Resolution, Refresh Rate, and Orientation Can Confuse the Handshake
A portable monitor can display only half the screen when the source is sending a mode the monitor does not handle cleanly. This often happens after changing from landscape to portrait, connecting through a hub, waking from sleep, or using a high-refresh gaming profile.
Current portable monitor testing shows how varied this category has become, from 1080p office displays to 2,560-by-1,600 productivity panels, 4K OLED screens, and 300 Hz gaming models portable monitor testing. That variety is useful, but it also means your laptop, cable, dock, and display settings must match the monitor’s real limits.
A practical reset point is 1920 by 1080 at 60 Hz in landscape mode. If that fills the screen correctly, increase resolution first, then refresh rate. If the problem returns at a specific setting, you have found the compatibility ceiling of the current chain. For office work, a stable 60 Hz full-screen image is usually better than chasing a higher mode through a weak hub. For gaming, use a direct USB-C-to-DisplayPort or high-grade USB-C route when the monitor’s refresh rate is the point of the purchase.
Drivers, Firmware, and Operating System Settings Matter
When the hardware path checks out, the next suspect is software. Operating systems can mis-detect external display size, scaling, orientation, or refresh rate after updates or sleep cycles. Graphics drivers can also affect EDID handling, which is the process where the monitor tells the computer what modes it supports.
When a USB-C hub does not detect a monitor, check display detection, power, cable, hub, and display configuration in system settings. Use the operating system’s display projection controls to choose Extend or Duplicate, then open display settings and force detection. On another computer, open display settings and confirm the portable monitor is not mirrored into an odd scaled mode.
If the issue began right after a driver update, rolling back the graphics driver can be worth testing. If it appeared after weeks of stable use, update the GPU driver, chipset driver, USB controller driver, dock firmware, and monitor firmware where available. That sounds routine, but it is often what restores a clean handshake on premium portable displays.
When a Reset Is the Right Move
A reset is useful after cable, power, input, and display mode checks fail. A soft reset clears minor glitches without erasing your saved settings. A factory reset returns the monitor to defaults and can fix persistent input, scaling, or corrupted setting behavior.
A typical portable monitor reset process includes disconnecting all cables, holding the power button for 10 to 15 seconds, leaving the display unplugged briefly, then reconnecting power before the source device soft reset. That order matters because it lets the monitor restart its power and signal negotiation cleanly.
Use a factory reset only after you have tested another cable and another source device. If the monitor still shows only half the panel across multiple known-good laptops and both HDMI and USB-C, the problem is more likely internal hardware, such as a panel driver board, ribbon connection, or controller failure.
A Reliable Diagnostic Path
Start with the fastest isolation test: connect the portable monitor directly to the laptop with the original USB-C cable, no hub, no dock, no KVM, and no adapter. If it still shows half the screen, lower the output to 1080p at 60 Hz and set orientation to landscape. If the image becomes full, the issue is bandwidth, refresh rate, scaling, or handshake compatibility.
Next, add dedicated power to the monitor. If that fixes the issue, keep separate power for demanding setups or upgrade to a better USB-C power path. If separate power does not help, replace the cable with a certified full-feature USB-C or Thunderbolt cable. If the issue remains, test HDMI plus separate USB power. HDMI working cleanly points back to USB-C capability, cable quality, or port behavior.
Only after those checks should you suspect the monitor. Consumer-focused portable monitor buying advice commonly emphasizes reliable laptop connectivity and stable second-screen positioning because portability adds more cable movement and connection variability than a fixed desktop monitor portable monitors. A panel failure is possible, but it is not the first conclusion.
FAQ
Can a bad USB-C cable really cause only half the screen?
Yes. A weak or charge-only cable can create unstable video, especially at higher resolution or refresh rate. The screen may not simply go black; it can flicker, show artifacts, render at the wrong size, or display only part of the image.
Is USB-C better than HDMI for portable monitors?
USB-C is cleaner because it can carry power and video through one cable when every device in the chain supports it. HDMI is often easier to diagnose because it separates video from power, which makes it a strong fallback when USB-C behavior is inconsistent.
Should I replace the monitor if a reset does not work?
Not immediately. Replace or test the cable, use direct connection, add separate power, try HDMI, lower resolution, and test another computer first. If the same half-screen defect appears across known-good cables, ports, and source devices, then hardware service or replacement becomes the practical next step.
A portable monitor should expand your workspace, not turn setup time into a repair session. Treat the problem like a signal chain: prove the port, cable, power, input, and display mode before blaming the panel, and you will usually find the fix faster and spend less doing it.
