Lock Monitor Picture Mode & Stop Gameplay Changes

Usually not in the way most gamers mean it. Most monitors can lock the menu or buttons, but only some presets lock their own image controls, and that is different from preventing every picture-mode change.

You notice it right after a match starts: brightness is grayed out, colors look different, or the monitor seems to jump to another gaming preset when the signal changes. Support notes across gaming monitors keep pointing to the same causes, including HDR, VRR, refresh-rate changes, per-input memory, and front-panel lock behavior. Here is how to tell what your monitor is actually protecting, what is causing the changes, and what to check before you buy your next display.

What a Monitor Can and Cannot Lock

Most monitors that advertise an OSD lock are only protecting the on-screen menu from stray button presses, not freezing one picture mode forever. On some monitors, that lock is commonly toggled by holding the Menu button for 10 seconds, and the warning message usually says OSD Lock, OSD Lockout, or something similar.

Hand pressing the Menu button on a gaming monitor to activate OSD lock

A front-panel padlock feature works the same way on many monitors. One example used a 15-second hold on the menu-related button to lock or unlock the controls, and users found that a missing signal or the wrong active cable could interrupt the unlock attempt. That matters because a locked button panel can feel like the picture mode is “stuck,” even when the monitor is really just blocking menu access.

What confuses gamers is that picture presets such as sRGB , Rec.709 , FPS , RTS , and HDR often lock brightness, sharpness, gamma behavior, or color temperature on purpose. That is preset behavior, not a universal user lock. In practice, if your high-refresh gaming monitor is sitting in HDR or a factory-calibrated mode, the panel may refuse manual edits even though nothing is broken.

Why Picture Settings Change During Gameplay

Many of the “accidental changes” people notice during gameplay are actually HDR, VRR, low-latency modes, or other gaming features forcing the monitor onto a different image-processing path. When that happens, controls like picture mode, dynamic contrast, input lag options, and color settings can disappear or gray out because the display is protecting timing and tone mapping.

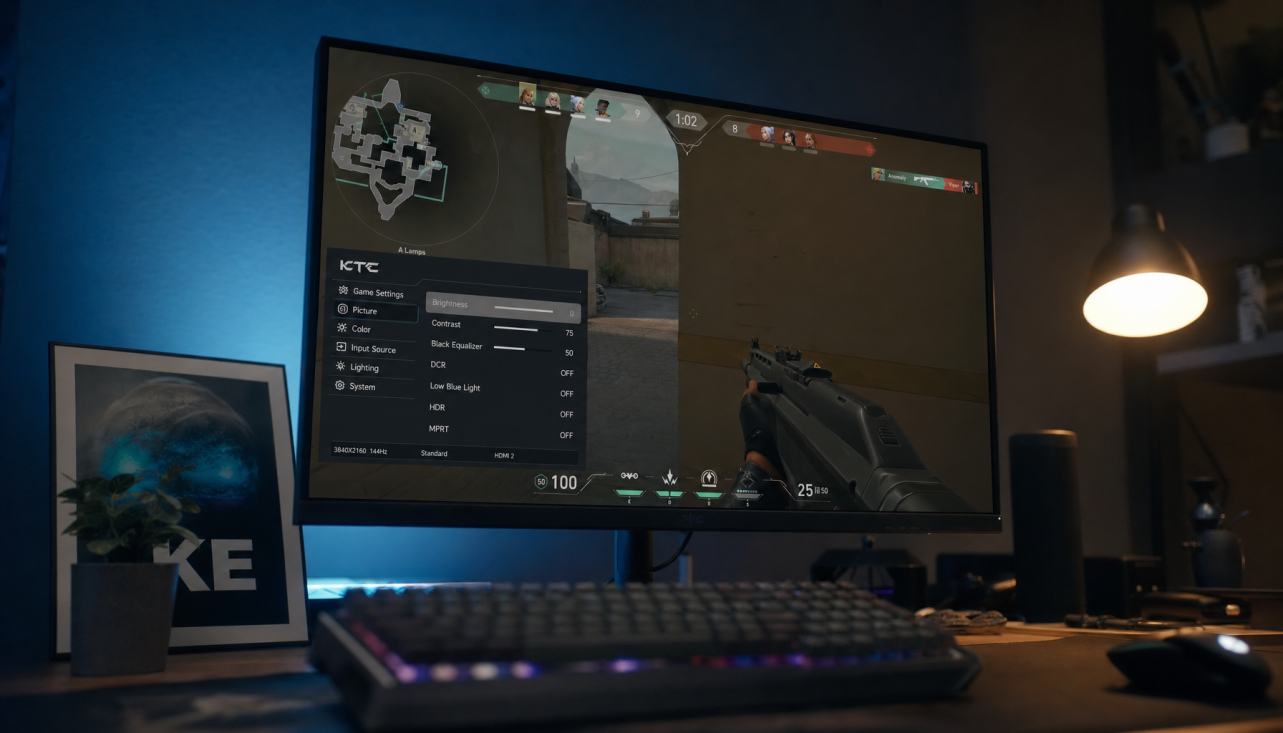

Gaming monitor OSD showing grayed-out picture controls when HDR and VRR are active

Another common cause is that monitors often store picture settings per input. A PC on one input and a console on another may each load a different preset, and auto input switching can move you to the wrong port without you noticing. On an ultrawide monitor used for both gaming and work, that is a fast way to think your settings were “changed,” when the monitor actually loaded a different saved profile for that input.

If the display seems to reset after restart or sleep, the problem is often configuration, signal, or power related rather than panel wear. The same support notes separate OS-side changes like refresh rate, scaling, or layout from monitor-side changes like brightness, color mode, or input source. That is especially common on dual-monitor or mixed-refresh setups, and it is worth remembering that LCD-class monitors are typically estimated around 30,000 to 60,000 hours, so repeated resets are more likely to be setup-related first.

Why High-Refresh Menus Often Look Restricted

A higher refresh rate improves motion clarity, responsiveness, and smoothness, which is why 144 Hz, 165 Hz, and 240 Hz panels are so popular for competitive play. The tradeoff is that gaming monitors often simplify or disable extra image processing at those speeds to keep latency low and timing stable.

That is why Adaptive Sync, VRR, HDR, and high-refresh operation so often gray out picture mode, brightness, color temperature, dynamic contrast, and similar controls. If your monitor suddenly feels “locked” at 240 Hz, the display may be behaving exactly as designed. The fastest path is not always the most flexible path.

You should also check what the operating system is actually sending to the screen. The operating system’s Advanced display settings show the current resolution, current refresh rate, and whether VRR is supported, and some refresh-rate choices marked with an asterisk can change the resolution to match. In real use, that means a game that switches from your desktop timing to another mode can make image options appear and disappear even if you never touched the monitor buttons.

How to Stabilize a Gaming Monitor Before a Match

The most reliable starting point is the recommended troubleshooting order: turn off HDR in the OS, disable VRR or Adaptive Sync, switch from special presets to Standard or Custom, confirm the refresh rate, test another cable, update the GPU driver and monitor firmware, and power-cycle after sleep-related glitches. On most gaming monitors, Custom, User, or Standard is the safest place to build a stable preset.

Some problems are genuine firmware issues rather than user error. In the monitor overdrive case, users reported that OD = Off removed a visible ghosting or corona effect during gameplay, but after standby or a refresh-rate change they had to toggle Normal and back to Off to make Off truly apply again. The company later said a firmware update was available, which is a strong reminder that an OSD can show the setting you want while the panel is not actually applying it correctly.

A repeating lock icon points to a different class of problem. In one lock/unlock case, the menu already showed Unlock, but the monitor kept flashing lock messages until support moved toward factory reset steps and ultimately recommended an exchange. If your gaming monitor keeps showing lock warnings by itself, suspect stuck buttons, faulty hardware, or a bad control board before you assume the picture mode feature is misbehaving.

What to Check Before You Buy

For gaming displays, refresh rate and response time matter, but buyers already think in those terms and often miss the stability features that affect daily use more. If you care about consistent image settings on a gaming monitor, ultrawide monitor, or portable monitor, put menu-lock behavior, per-input memory, User or Custom presets, firmware support, and clear OSD documentation on your shortlist along with 144 Hz or 240 Hz specs.

Person reviewing gaming monitor manual and spec sheet before purchase to check OSD lock and per-input memory features

Because lock and unlock behavior varies by model, the manual matters more than the marketing page. One monitor may use a 10-second Menu hold, another may use a different numbered button and a 15-second hold, and neither may truly lock the active picture mode itself. If the product page does not explain whether the lock blocks buttons only, blocks the whole OSD, or preserves per-input settings, assume you need to verify before buying.

Feature to verify	Why it matters for gameplay	Good sign	Risk if missing
OSD or key lock	Prevents accidental front-button presses	Clear lock/unlock method in the manual	Buttons can be bumped during play
User or Custom preset	Gives you one editable baseline mode	Separate saveable preset	Factory modes may lock brightness or color
Per-input memory	Keeps PC and console settings consistent	Manual explains how each input stores settings	Input switching loads unexpected presets
VRR/HDR behavior	Determines which controls gray out	Support page lists tradeoffs clearly	Settings seem broken at 144 Hz to 240 Hz
Firmware support path	Fixes real monitor-side bugs	Download or service process is documented	Bugs survive restarts and standby
Direct cable compatibility	Affects available refresh rates and modes	Full bandwidth on your target input	Different ports expose different options

For multi-device setups, signal path and input behavior deserve extra attention. If you use a high-refresh ultrawide monitor for both a gaming PC and a console, keep both sources on the same resolution, refresh-rate family, and HDR state when possible, turn off auto input switching, and manually copy your reference brightness, RGB, contrast, and color temperature values to each input after letting the panel warm up for 10 to 15 minutes.

FAQ

These are the three questions that matter most when you are deciding whether a monitor can really “lock” your preferred gaming image.

Q: Can the operating system lock my monitor to one picture mode?

A: No, not usually. The operating system can change resolution, refresh rate, and HDR state, but the monitor’s own picture modes live in the display firmware and OSD. Software can influence them indirectly, but it usually cannot force a permanent lock on one preset.

Q: Does OSD lock stop picture-mode changes during gameplay?

A: Sometimes only partially. OSD lock usually blocks button presses or menu access, which helps prevent accidental changes from the front panel. It does not always stop the monitor from switching behavior when HDR, VRR, another input, or a factory-calibrated preset takes control.

Q: What is the safest setup if I want stable image settings on a gaming monitor?

A: Use Standard, Custom, or User mode, keep HDR off unless you specifically want it, disable VRR while troubleshooting, match the refresh-rate setup in the operating system to what you expect in game, and copy the same settings to every input you use regularly.

Final Takeaway

You usually cannot create a universal “do not change this picture mode” lock on a gaming monitor. What you can usually do is lock the buttons or OSD, avoid special presets that override controls, and reduce the triggers that make the monitor switch image pipelines. For most high-refresh-rate displays, the most dependable approach is a saved Custom or User preset on each input, plus a clean signal path and current firmware.

Use Custom, User, or Standard as your main gaming preset.
Turn off HDR and VRR first if picture controls are grayed out.
Check the operating system’s Advanced display to confirm the active resolution and refresh rate.
Copy the same image values to every input connection you actually use.
Test one direct cable and one source at a time before blaming the monitor.
Update GPU drivers and monitor firmware if a setting looks saved but does not truly apply.
Verify manual lock behavior before buying, especially on ultrawide and portable monitors.
