To confirm your graphics card is outputting the correct resolution, check the monitor’s native resolution, verify the active signal in your operating system, compare it with the monitor’s on-screen display, and make sure the cable, port, refresh rate, and scaling settings are not forcing a lower mode.
Your new gaming monitor is connected, but the desktop looks soft, the ultrawide image feels stretched, or the 240Hz option is missing. A 4K display asks the GPU to render about four times as many pixels per frame as 1080p, so one wrong setting can change both sharpness and gaming performance quickly. This guide shows you how to prove what resolution your monitor is actually receiving and how to fix the most common mismatches.
Start With the Resolution Your Monitor Was Built to Use
Native resolution is the sharpness target
The first number to verify is the monitor’s native resolution: the physical pixel grid the panel was manufactured with. A 27-inch 1440p gaming monitor is usually 2560 x 1440, a 4K monitor is usually 3840 x 2160, and a standard 1080p monitor is 1920 x 1080. Your operating system generally marks the monitor’s native resolution as the Recommended option, and the operating system vendor notes that lower-than-native settings can make text less sharp or cause the image to appear centered, bordered, stretched, or otherwise distorted through display resolution.
This matters most on high-density and ultrawide monitors because a small mismatch is easy to miss at first. For example, a 34-inch ultrawide with a native 3440 x 1440 panel may still show an image at 2560 x 1440, but the desktop can look horizontally stretched or padded with black bars. A 15.6-inch portable monitor may accept 1366 x 768 from a laptop dock even though its panel is 1920 x 1080, leaving text visibly fuzzy.
Resolution, refresh rate, and FPS are linked
Resolution is the number of pixels in each frame, while refresh rate is how many times per second the display updates. A monitor running at 60Hz refreshes 60 times per second, while common gaming targets such as 144Hz and 240Hz update much more often; the operating system vendor describes refresh rate as the display’s update frequency and notes that higher values can improve responsiveness, reduce motion blur, and make motion feel smoother through refresh rate.
The GPU has to feed both dimensions at once. A 4K frame contains about four times as many pixels as a 1080p frame, so a graphics card that easily reaches 180 FPS at 1920 x 1080 may struggle to reach 60 FPS at 3840 x 2160 in the same game. That is why verifying the output resolution is not only a picture-quality check; it also explains why a high-refresh-rate monitor may feel slower than expected.
Check the Active Resolution in Your Operating System
Use Display settings first

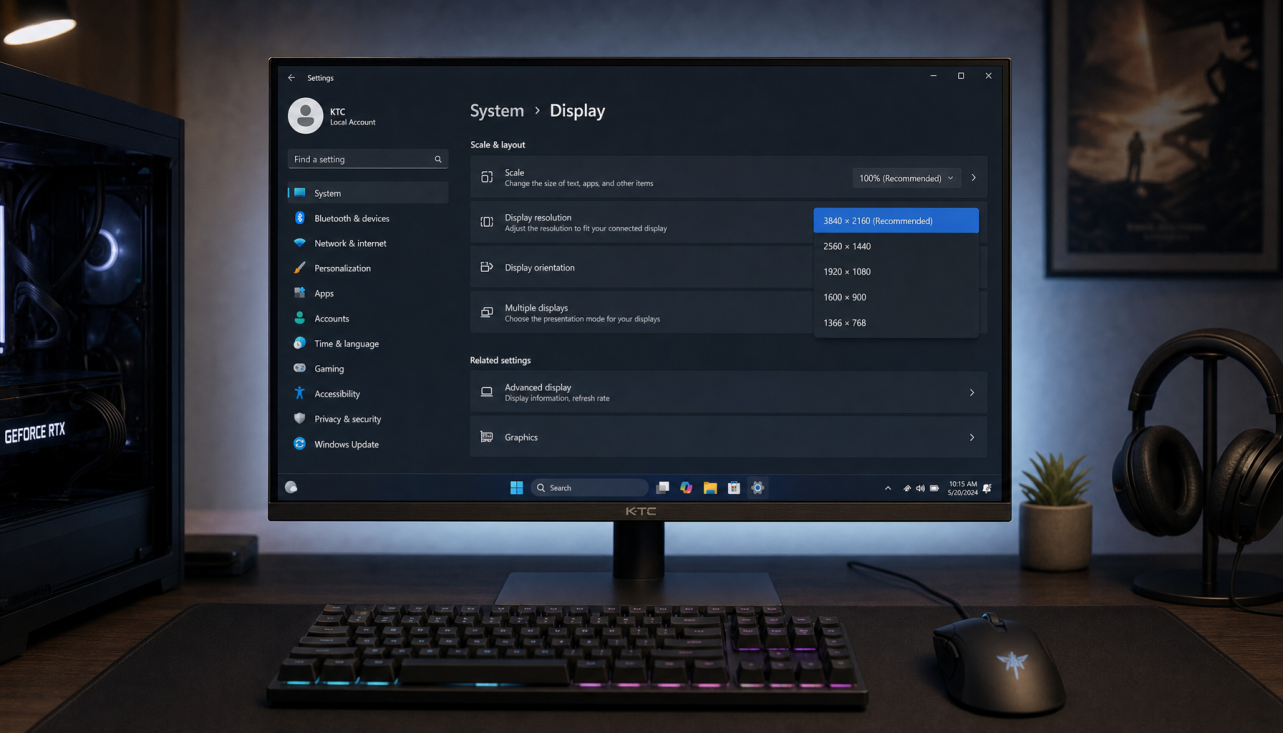

In your operating system, go to Start > Settings > System > Display, select the correct monitor if you have more than one connected, and check Display resolution under Scale & layout. The operating system places screen resolution, scaling, and layout controls in Display settings, and the operating system vendor recommends using the option marked Recommended when available.
Do not skip the display selector at the top of the page. In a dual-monitor setup, it is common to adjust the wrong screen by mistake, especially when a laptop panel, a 27-inch gaming monitor, and a portable display are all connected. Click Identify, note the number shown on the physical monitor, then select that same display before changing resolution, scale, orientation, or refresh rate.
Confirm the signal in Advanced display
Next, open Advanced display from the same Display page. This screen shows the current display, desktop mode, active signal mode, refresh rate, and variable refresh rate support when available. The operating system vendor lists Start > Settings > System > Display > Advanced display as the place to view current resolution and refresh-rate details through Advanced display.
This is where many confusing cases become clear. If Desktop mode says 3840 x 2160 but Active signal mode says 2560 x 1440, the GPU or driver may be scaling the desktop before sending it to the monitor. For a sharp image on a 4K monitor, you generally want both the desktop mode and active signal mode to match 3840 x 2160, with scaling handled as text and UI enlargement rather than as a lower-resolution output.
Compare System Settings, GPU Settings, and the Monitor OSD
Use the monitor’s on-screen display as the receiving-end check
Your operating system tells you what it is trying to send, but the monitor’s on-screen display, often opened with a joystick or button on the back edge, tells you what the monitor is receiving. Many gaming and ultrawide monitors show the active input resolution and refresh rate in an Information, Input, or Status menu. If your operating system reports 2560 x 1440 at 144Hz and the monitor OSD reports the same, your graphics card output and monitor input are aligned.
If the monitor OSD reports a different value, treat that as an important clue. For example, a 4K 144Hz monitor may show 3840 x 2160 at 60Hz if the cable or port cannot carry the higher-refresh signal. A portable monitor may show 1920 x 1080 at 60Hz even when the laptop desktop is scaled to look larger, which is normal as long as the active signal remains native.
Check the graphics control panel when the numbers disagree
Your GPU control panel can add another layer of scaling. GPU control software from a hardware company can expose resolution, refresh rate, color format, and scaling choices. The useful test is simple: the selected resolution in the GPU panel should match the monitor’s native resolution, and scaling should usually be set to preserve aspect ratio or use display scaling unless you intentionally want stretched competitive-game output.
This distinction matters for esports players. A player may intentionally run a competitive game at 1920 x 1080 on a 2560 x 1440 monitor to gain FPS, but the desktop should still return to native resolution afterward. A brand’s gaming monitor notes highlight that lower resolutions such as 1080p or 1440p make it easier for PCs to reach 144 FPS, 240 FPS, or higher in fast games, while a 240Hz monitor running a game at 72 FPS will repeat frames rather than show 240 unique updates through lower resolutions.
Watch for Cable, Port, Dock, and Refresh-Rate Limits
The correct resolution can disappear when bandwidth is limited
If the native resolution or top refresh rate is missing, the graphics card may not be the only issue. The selected cable, GPU port, monitor input, adapter, hub, or dock can limit the available display modes. A brand’s monitor guidance lists selected resolution, cable, port, adapter, dock, GPU, driver, and monitor setting as likely causes when a monitor does not show its highest refresh rate through highest refresh rate.
A practical example: a desktop graphics card may support 2560 x 1440 at 240Hz, and the monitor may support it too, but an older video cable, a basic display dock, or the wrong monitor input may expose only 60Hz or 120Hz. For ultrawide monitors, the same issue can hide the native 3440 x 1440 option or limit the display to a lower refresh rate. Always test with a direct cable from the GPU to the monitor before blaming the panel.
Refresh-rate choices can change resolution
Some refresh-rate options are tied to reduced resolution modes. The operating system vendor notes that available refresh-rate options depend on the display, and options marked with an asterisk may change the current resolution to achieve that refresh rate through refresh-rate options. If you select the highest Hz value and the desktop suddenly looks soft, check whether the operating system silently dropped the active resolution.
This is especially relevant for gaming monitors advertised with multiple headline specs. A monitor may support 4K at 144Hz over one input but only 4K at 60Hz over another. It may also offer a very high refresh mode at 1080p while using a lower maximum refresh rate at 1440p or 4K. The fix is to verify both numbers together every time: resolution first, refresh rate second, and active signal mode last.
Troubleshoot Blurry, Stretched, or Underperforming Displays
If the image is blurry but resolution looks correct
Blurry text does not always mean the GPU is outputting the wrong resolution. If your operating system shows the native resolution and the monitor OSD confirms the same signal, check scaling next. Your operating system lets you adjust text and app size under Scale & layout, and the operating system vendor recommends choosing the scale option marked Recommended when available through Scale & layout.
For a 27-inch 4K monitor, 150% scaling may make text readable while keeping the actual signal at 3840 x 2160. That is different from lowering the display resolution to 2560 x 1440, which forces the monitor or GPU to scale the whole image. On a portable 1080p monitor, 125% scaling can improve readability without sacrificing pixel sharpness.
If the monitor is sharp but games feel slow
A sharp desktop at native resolution can still be the wrong performance choice for a game. A brand’s graphics-card matching guidance notes that a strong GPU paired with a 60Hz monitor can waste performance, while a weak GPU paired with a 4K high-refresh display may deliver poor gameplay at roughly 30 FPS through GPU and monitor. In other words, correct output resolution does not guarantee the best play experience.
A useful buying and setup habit is to search benchmarks using your exact GPU, game, and target resolution. For example, search mid-range GPU game 2560 x 1440 benchmark or high-end GPU game 3440 x 1440 benchmark, then compare the average FPS with your monitor’s refresh rate. If your PC averages 95 FPS on a 165Hz monitor at 4K, dropping to 1440p may feel smoother than keeping the sharper resolution.
Resolution Verification Checklist
Use this checklist whenever a new monitor looks wrong, a refresh-rate option is missing, or a game does not feel as smooth as the monitor spec suggests.
- Find the monitor’s native resolution in its product specs or OSD information screen.
- In your operating system, open Settings > System > Display and select the correct monitor.
- Set Display resolution to the Recommended native option.
- Open Advanced display and compare Desktop mode, Active signal mode, and refresh rate.
- Open the monitor OSD and confirm the received resolution and Hz match your operating system.
- If a mode is missing, test a direct GPU-to-monitor cable and bypass docks, adapters, and hubs.
- If games feel slow at native resolution, compare your average FPS with the monitor’s refresh rate and consider a lower in-game resolution.
Common Resolution and Refresh-Rate Checks
Setup type |
What to verify |
Common mismatch |
Practical fix |
1080p gaming monitor |
1920 x 1080 at 144Hz, 165Hz, or 240Hz |
Monitor runs at 60Hz after setup |
Change refresh rate in Advanced display and confirm the OSD |
1440p gaming monitor |
2560 x 1440 at the monitor’s rated Hz |
Game uses 1920 x 1080 from an old setting |
Set desktop native first, then adjust the game resolution |
4K monitor |
3840 x 2160 active signal |
Desktop mode looks 4K, but active signal is lower |
Disable unintended GPU scaling and choose native output |
Ultrawide monitor |
Native aspect ratio such as 3440 x 1440 |
Stretched 16:9 image or black bars |
Select the ultrawide native mode and preserve aspect ratio |
Portable monitor |
Native 1920 x 1080 or listed panel resolution |
Laptop dock exposes only a lower mode |
Connect directly over a video cable and retest |
Multi-monitor desk |
Each display selected and configured separately |
Settings changed on the wrong monitor |
Use Identify, then configure one screen at a time |
FAQ
Q: Why does my operating system say my resolution is correct, but my monitor still looks blurry?
A: Check Advanced display and compare the desktop mode with the active signal mode. If those match the monitor’s native resolution, the issue is more likely scaling, font rendering, app behavior, or monitor sharpness settings. If active signal mode is lower than native, the GPU or driver is scaling before the monitor receives the image.
Q: Can the wrong cable stop a graphics card from outputting the correct resolution?
A: Yes. The GPU, monitor, cable, port, adapter, and dock all have to support the same resolution and refresh-rate combination. If a 4K or high-refresh mode is missing, test a direct connection from the graphics card to the monitor with the cable that came with the display or another cable rated for the target mode.
Q: Should I always use native resolution for gaming?
A: Use native resolution when image sharpness is the priority. For competitive games, a lower in-game resolution can be reasonable if it helps your GPU produce enough FPS to match a 144Hz, 240Hz, or higher-refresh monitor. Keep the desktop at native resolution, then make game-specific choices inside the game settings.
Key Takeaways
The most reliable way to verify correct graphics-card output is to compare three places: Display settings, Advanced display, and the monitor’s own OSD. If all three show the monitor’s native resolution and expected refresh rate, the signal path is working as intended.
For monitor buying and setup, match the graphics card to the display’s real workload. Entry-level GPUs are usually a better fit for 1080p high-refresh monitors, mid-range GPUs are commonly aimed at 1440p gaming, and 4K high-refresh displays need substantially more GPU performance. Correct resolution is the first check; smooth motion depends on the GPU producing enough frames to make that resolution worthwhile.
