Console HDR usually crushes shadow detail when the console, game, and gaming monitor are not mapping brightness to the same limits. Start with the monitor’s accurate HDR game mode, calibrate the console afterward, then adjust in-game HDR sliders only after checking video signal range and black-level settings.

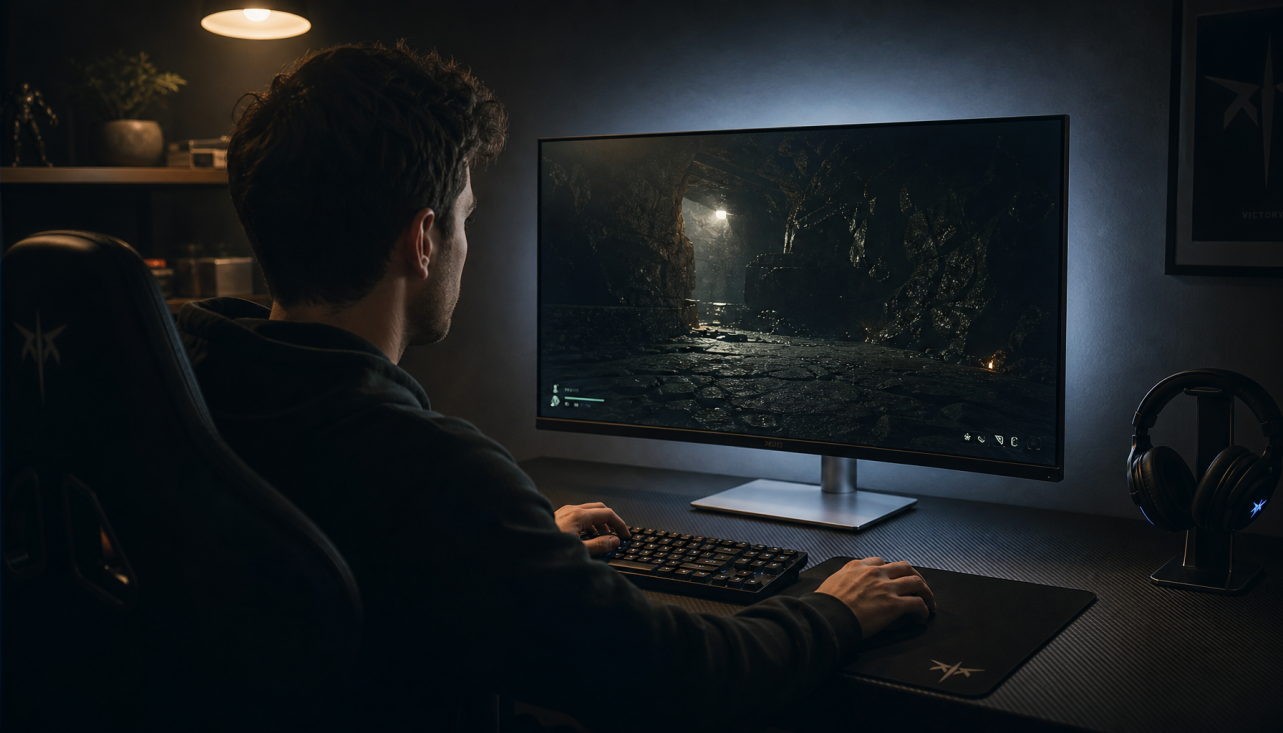

Ever step into a cave, nighttime level, or shadowed hallway and realize enemies, doorways, and texture detail have turned into a solid black wall? On a 400-nit class HDR gaming monitor, a single wrong brightness target or black-level mismatch can make HDR look worse than SDR even though the signal is technically working. This guide shows how to identify whether the problem is calibration, monitor settings, video signal range, game sliders, or the display’s HDR hardware limits.
Why Console HDR Crushes Dark Game Scenes
Console HDR is not a simple “brighter mode.” HDR expands the distance between dark areas and bright highlights, so a scene can have deeper blacks and brighter peaks at the same time; that larger brightness range is why HDR may look darker overall than SDR in some rooms HDR expands dynamic range. If a game expects your display to hit 1,000 nits but your gaming monitor can only produce a few hundred nits in real scenes, the console, game, or monitor has to compress the image.
That compression is tone mapping. Tone mapping reshapes HDR brightness so content mastered for higher light output can fit your monitor’s actual peak brightness, black floor, and contrast behavior tone mapping compresses HDR content. Done well, it preserves detail in clouds, fire, headlights, moonlit terrain, and dark interiors. Done poorly, it can make shadows look muddy, erase near-black texture, or flatten highlights.
The Most Common Cause: Mismatched Brightness Targets
HDR games and video sources are not mastered consistently. One title may target 1,000 nits, another may target 4,000 nits, and a console game may expect tone mapping around the display’s actual peak brightness HDR content is mastered inconsistently. If your console calibration says the monitor can go brighter than it really can, the game may preserve highlights by pushing the rest of the scene too low.
For example, a 350-nit HDR display cannot show a 1,000-nit highlight without compromise. Some displays clip the brightest details to keep the average picture brighter, while others preserve highlight detail by lowering the whole image 350-nit TV must compress. On a gaming monitor, that second behavior often feels like crushed shadow detail because the entire dark scene drops below what you can comfortably see at a desk.
Why Basic HDR Support Is Not Enough
Many gaming monitors can accept an HDR signal but lack the contrast, peak brightness, or local dimming control needed to make dark scenes look correct. Entry-level HDR monitors may raise brightness globally, which turns blacks gray, or they may dim aggressively, which hides low-level shadow information basic HDR displays may accept HDR input. Entry-level HDR certification can be useful as a baseline spec, but it often does not include the dimming hardware needed for convincing HDR contrast in dark scenes.
The practical takeaway: do not judge HDR only by whether your console shows “HDR On.” Judge it by whether near-black objects remain visible without making the whole image look gray.
Set the Correct Order: Monitor First, Console Second, Game Third
The best adjustment order is monitor, console, then game. Choose the monitor’s most accurate HDR game mode first, because that determines the display’s tone mapping, local dimming, latency behavior, brightness ceiling, and black-level handling choose the display’s accurate HDR game mode first. After that, run the console’s HDR calibration so the console learns the monitor’s usable range.
If you calibrate the console first and later switch the monitor from “HDR Standard” to “HDR Game,” you may have changed the peak brightness and black behavior underneath the console’s calibration. That is how you end up with double tone mapping: the console, game, and monitor all try to fix brightness at the same time, often producing flattened highlights and crushed shadows double tone mapping can occur.
Step 1: Pick the Right HDR Picture Mode
Use the monitor’s HDR game mode or its most accurate low-latency HDR preset. Avoid vivid, dynamic, cinema-bright, or showroom-style modes when calibrating, because they may exaggerate contrast or apply extra brightness processing. If the monitor lets you save presets, keep separate SDR, HDR video, and HDR game presets instead of constantly changing one global mode.
On many gaming monitors, the best starting point is not the brightest-looking HDR mode. A brighter image is not automatically more accurate; it may lift midtones, ignore metadata, or trade highlight detail for visibility brighter image is not automatically more accurate. For dark games, accuracy matters because near-black detail depends on a stable brightness curve.
Step 2: Run Console HDR Calibration After the Monitor Is Set
Once the monitor mode is locked in, run your console’s HDR calibration screens. Set the maximum brightness screens so the symbol disappears or nearly disappears as instructed by the console, but avoid pushing beyond the point where the monitor stops showing a visible change. On monitors with aggressive tone mapping, several clicks may look identical near the top; going higher can tell the console the display is brighter than it really is.
For the black-level or minimum brightness step, be conservative. If the test symbol disappears too early, dark scenes can lose fine shadow gradation. If it remains too visible, blacks may look raised and gray. The right setting should let the console show black as black while keeping faint near-black detail visible in real gameplay.
Step 3: Adjust Game HDR Sliders Last
Many games have their own HDR controls, such as peak brightness, paper white, brightness, contrast, or black point. These settings can override or interact with console-level calibration, so treat them as the final tuning layer. Use a dark scene with known objects, not only the game’s calibration logo, and check one bright scene afterward to make sure fire, sky, lamps, or weapon effects are not clipped.
A practical test is to use the same saved location twice: once in HDR and once in SDR. If SDR shows readable texture in a dark corridor but HDR turns the same corridor into flat black, the problem is probably not the game art. It is more likely console calibration, monitor tone mapping, video signal range, or an overactive monitor setting.
Check the Settings That Directly Affect Shadow Detail
Dark-scene HDR problems often come from ordinary monitor controls, not the HDR format itself. Brightness, contrast, black equalizer, dynamic contrast, local dimming, signal range, and color space can all change how much near-black detail reaches your eyes. The goal is not to make every shadow bright; the goal is to keep black areas dark while preserving visible gradation just above black.
Use this comparison table as a starting point when troubleshooting a console connected to a gaming monitor.
Setting or Feature |
What It Changes |
Recommended Starting Point |
Symptom if Wrong |
HDR picture mode |
Tone mapping, color, latency, peak brightness |
Accurate HDR Game mode |
Dim image, clipped highlights, heavy processing |
System-level peak brightness and black floor |
Run after selecting monitor HDR mode |
Crushed shadows or washed-out HDR |
|
In-game HDR peak brightness |
Game engine’s HDR output target |
Match monitor capability when possible |
Fire, sun, UI, or lamps clip or look dull |
Paper white / UI brightness |
Midtone and menu brightness |
Moderate setting, not maximum |
Image looks flat, gray, or too dim |
Brightness / black level |
Near-black visibility |
Default first, then small changes |
Invisible detail or raised gray blacks |
Contrast |
White level and highlight separation |
Default or calibrated HDR preset |
Lost highlight detail or harsh image |
Black equalizer |
Artificially lifts dark areas |
Off or low for calibration |
Easier visibility but inaccurate shadows |
Dynamic contrast |
Scene-by-scene contrast processing |
Off for setup, test later |
Pumping brightness or lost dark detail |
Local dimming |
Backlight zone behavior |
Medium or High, depending on monitor |
Blooming, flicker, or crushed small details |
Signal range |
Video signal black and white range |
Match console and monitor |
Crushed blacks or washed-out image |
Brightness Is Not the Same as Backlight or Peak Luminance
On many displays, the “brightness” control affects black level, not the backlight’s real HDR ceiling. Raising brightness may reveal hidden shadow detail, but it can also lift true black into gray. For HDR that looks too dark in a bright room, increasing backlight or using a brighter HDR preset is usually safer than raising black level too far raise backlight instead of brightness.
Gaming monitors vary widely here. Some lock most controls in HDR mode, while others allow black equalizer, contrast, local dimming, or shadow boost adjustments. If your monitor allows changes, move one control at a time and test both a dark scene and a bright scene before keeping it.
Black Equalizer Can Help Visibility but Hurt HDR Accuracy
Black equalizer, shadow boost, dark stabilizer, and similar controls are designed for competitive visibility. They can make enemies easier to see in dark areas, but they often do this by lifting near-black tones and reducing the intended HDR contrast. That may be useful in a fast multiplayer shooter, but it can make cinematic games look flat.
A good compromise is to save two monitor presets if your display supports it. Keep one accurate HDR game preset for story games, racing games, and visually rich single-player titles. Keep another visibility-focused preset with mild black equalizer for competitive play where spotting movement matters more than preserving the intended tone curve.
Local Dimming Needs Testing, Not Guessing
Local dimming can help HDR by making bright highlights brighter while keeping nearby dark areas darker. OLED does this at the pixel level, while Mini-LED uses many dimming zones and higher sustained brightness to preserve dark-scene contrast OLED uses pixel-level black control. Edge-lit or zone-limited monitors may struggle with small bright objects in dark scenes.
Test local dimming with a dark game menu, a night sky, a cave entrance, and a moving flashlight. Even on a high-brightness Mini LED model such as a Mini LED gaming monitor, local dimming mode is still something to test scene by scene instead of assuming it will fix crushed shadows. If local dimming hides small HUD elements, flickers when the camera moves, or makes dark objects vanish near bright objects, try a lower dimming setting. If turning it off makes the whole image gray, leave it on and adjust the game’s HDR sliders instead.
Fix Signal Range and Black-Level Mismatches
A console and monitor must agree on the signal range. If one device sends full signal range while the other expects limited range, blacks can be crushed or washed out. Crushed blacks happen when near-black values are interpreted as absolute black; washed-out blacks happen when black is displayed too high.
This issue is easy to miss because the image can still look sharp, colorful, and “HDR active.” The giveaway is that no reasonable HDR calibration setting fixes the problem. If every dark game looks wrong, including titles with good HDR implementations, check signal range before assuming the monitor is defective.
Full vs Limited Signal Range: What to Use
For many monitor setups, full signal range is appropriate because monitors are usually built around PC-style full-range signaling. However, some console HDR paths, video input modes, or monitor inputs behave more predictably with automatic or limited range. The correct answer is not universal; the correct answer is matching both ends.
Use this test: set the console signal range and monitor black level to matching options, then open a black-level test screen or a game scene with faint shadow detail. If “Full” on the console makes shadow texture disappear while “Auto” or “Limited” restores it, the display was likely interpreting the signal differently than expected. If “Limited” makes blacks gray and dull, return to matched full range.
Color Space and HDR Format Can Also Interact
A common HDR format uses static metadata, which describes the whole title instead of each scene or frame static HDR metadata. That means a very bright scene and a very dark scene may be guided by the same overall metadata, leaving more work for the game engine and monitor tone mapping.
Dynamic metadata formats can give more scene-aware guidance, but gaming monitors and consoles do not all handle them the same way. Even when dynamic tone mapping is available, the final result still depends on panel type, firmware, local dimming, picture mode, and user settings. If HDR looks inconsistent from game to game, that does not automatically mean your console is broken; it may reflect inconsistent HDR mastering and display-side processing.
Know When the Monitor Hardware Is the Limiting Factor
Some HDR problems can be fixed through calibration. Others are hardware limits. A monitor with low peak brightness, weak native contrast, no meaningful local dimming, or poor HDR tone mapping may never show dark HDR scenes with the depth and detail you expect from a high-end TV or premium gaming monitor.
This matters especially for console players shopping for a desk display. Console HDR quality depends less on refresh rate alone and more on the monitor’s real HDR behavior: peak brightness, black level, contrast ratio, local dimming, panel type, firmware quality, video input bandwidth, and usable HDR game presets. A 120 Hz or 144 Hz monitor can still have weak HDR if the panel cannot control dark and bright areas separately.
Panel Type Matters for Dark Scenes
OLED is the strongest option for black-level control because each pixel can dim independently. This makes it excellent for dark games, starfields, horror titles, and nighttime scenes where shadow separation matters. The tradeoffs are brightness behavior, burn-in considerations, and price.
Mini-LED LCD monitors can also perform very well because they combine high brightness with many dimming zones. They are often a strong fit for console HDR if you want impactful highlights and less risk of static-image wear. Standard edge-lit LCD monitors, including many basic HDR models, can still be fine for SDR and high-refresh gaming, but they usually cannot create the same dark-scene HDR contrast.
HDR Certification Is a Starting Point, Not a Final Answer
Entry-level HDR certification indicates basic HDR capability and may reach 400 nits, but it often lacks local dimming zones for convincing HDR contrast entry-level HDR certification. That does not make the monitor bad; it means expectations should be realistic. It may accept HDR and show wider color or brighter highlights, but dark scenes may still look better in SDR.
When buying a gaming monitor for console HDR, prioritize these traits: strong measured HDR brightness, good native contrast, effective local dimming or OLED pixel control, low-latency HDR game mode, modern high-bandwidth video input support when needed, and reviews that include HDR EOTF tracking or real game testing. Marketing phrases like “HDR ready” or “HDR compatible” are not enough.
Troubleshooting Common Console HDR Symptoms
The fastest way to fix HDR is to identify the symptom first. Do not change ten settings at once. Pick the closest symptom, make one adjustment, and test the same game scene again.
Symptom: Near-Black Objects Disappear
If enemies, doorways, rocks, or floor texture vanish in dark areas, start with signal range and console HDR calibration. Make sure the console and monitor agree on full or limited range, then rerun HDR setup. After that, lower the game’s peak brightness if the game is targeting a level your monitor cannot reach.
If the monitor has black equalizer or shadow boost enabled, turn it off during calibration. Then decide whether to add a small amount back for competitive visibility. Calibrating with black boost already active can make the console and game build their HDR output around an artificial black curve.
Symptom: Blacks Look Gray and Washed Out
Washed-out blacks usually point to the opposite problem: black level is too high, signal range is mismatched, local dimming is off, or the monitor’s HDR mode is globally lifting brightness. Return brightness and contrast to the HDR preset defaults, check video input black level, and enable local dimming if the monitor’s implementation is usable.
If the room is very bright, the issue may also be viewing conditions. HDR is designed to preserve contrast, not make the whole picture brighter. In a sunlit room, SDR can sometimes look more comfortable because many displays push SDR brightness harder across the whole image.
Symptom: Bright Highlights Look Good but the Whole Scene Is Too Dark
This often means the monitor is preserving highlight detail by lowering average picture brightness. Try reducing the game’s peak brightness target, increasing paper white modestly, or using a brighter but still low-latency HDR game preset. Do not immediately raise the monitor’s brightness control, because that may damage black level rather than solve tone mapping.
For example, if a game’s HDR slider is set near a 1,000-nit target but your monitor is closer to a 400-nit class display, the game may place too much emphasis on highlights your screen cannot fully show. Matching the game’s output more closely to the monitor can restore midtone and shadow readability.
Symptom: Local Dimming Flickers or Hides Small Details
If brightness shifts when you pan the camera, or small objects disappear near bright HUD elements, local dimming may be too aggressive. Try a medium setting instead of high. If the monitor has only a few dimming zones, turning local dimming off may stabilize the image, though blacks will likely become less deep.
In games with many HUD elements, maps, subtitles, or health bars, local dimming can behave differently than it does in movies. That is why gaming monitors need to be judged in actual gameplay, not only in HDR demo videos.
Action Checklist for Better HDR Shadow Detail
Use this checklist before replacing your monitor or turning HDR off completely:
- Select the monitor’s accurate HDR Game mode or lowest-latency accurate HDR preset.
- Turn off dynamic contrast, vivid color, black equalizer, and extra shadow boost before calibration.
- Set the console and monitor signal range or black level so both sides match.
- Run the console HDR calibration after the monitor mode is selected.
- Adjust each game’s HDR peak brightness, paper white, and black point using real dark and bright scenes.
- Test local dimming on multiple scenes, then choose the setting that preserves detail without obvious flicker.
- Save separate presets for SDR, cinematic HDR, and competitive HDR if the monitor supports it.
FAQ
Q: Should I turn off HDR if dark scenes look crushed?
A: Not immediately. First check the monitor’s HDR mode, signal range, console HDR calibration, and in-game HDR sliders. If your monitor is an entry-level HDR model with limited brightness and no useful local dimming, SDR may genuinely look clearer in some dark games, especially in a bright room.
Q: Is black equalizer a good fix for crushed HDR shadows?
A: It can help visibility, but it is not a clean calibration fix. Black equalizer lifts dark tones, which may make enemies easier to see but can also flatten HDR contrast and make cinematic scenes look less natural. Use it after calibration, not before.
Q: Why does one console game look great in HDR while another looks too dark?
A: HDR games vary in mastering targets, tone mapping, metadata behavior, and in-game slider design. One title may map well to your monitor’s real peak brightness, while another may assume a brighter display or apply its own tone mapping on top of console calibration.
Final Takeaway
Console HDR shadow detail depends on the whole chain: game output, console calibration, signal range, monitor tone mapping, panel contrast, and local dimming. The most reliable workflow is to set the monitor first, calibrate the console second, and tune each game last.
If your gaming monitor has strong HDR hardware, this process can recover dark-scene texture without washing out blacks. If it is a basic HDR-compatible monitor, the same process will still tell you whether HDR is worth using on that display or whether SDR is the cleaner choice for certain games.
