Why Portable Monitor Touchscreens Lag Over a Single-Cable Connection and How to Fix It

Touch lag on a single-cable portable monitor usually comes from one of five places: the cable, the port, shared bandwidth, unstable power, or the host device’s driver and rendering pipeline.

You tap a button on a portable touchscreen, but the cursor trails your finger or the swipe lands half a beat late. That delay can often be narrowed down in 10 to 15 minutes with a direct single-cable test, a power check, and a simple 240 fps phone-camera recording. Here is how to tell whether the problem is your monitor, laptop, cable, dock, or setup.

Why a Single-Cable Portable Monitor Can Show Video but Still Feel Laggy

The connection is carrying several jobs at once

A single-cable portable touchscreen setup is not just “one cable equals one signal.” In many setups, that single cable may carry video, touch data, and power delivery at the same time. A monitor can display an image normally while the touch layer still feels delayed if the data path, power negotiation, or host-side input handling is unstable.

That is why a single-cable touchscreen can behave differently from a standard portable monitor. The video feed may be healthy, but the finger input still has to travel through the touch digitizer, data controller, operating system, app, graphics rendering queue, display scanout, and panel response. Touch latency is separate from classic monitor input lag and separate from a 1 ms gray-to-gray response-time claim.

A fast panel does not guarantee fast touch

A portable monitor advertised with a low pixel response time can still feel slow when used as a touch display. Pixel response time describes how quickly pixels transition; it does not measure the full finger-to-screen path. In practice, a drawing app, browser, game menu, or operating-system touch keyboard may all feel different on the same monitor because each app has its own event loop and rendering load.

Refresh rate also changes how delay feels. At 60 Hz, the screen refreshes about every 16.67 ms; at 144 Hz, it refreshes about every 6.94 ms. Higher refresh rates do not remove touch-controller or connection delays, but they can make cursor movement, pen strokes, and game UI interactions look more immediate.

The Most Common Causes of Touch Lag Over a Single-Cable Connection

Cable, port, and mode mismatches

The connector shape does not prove that a port supports video, charging, and touch data. Some laptop ports support data only, some support charging but not video, and others support video output with limited power output. For portable monitors, the host port, monitor port, and cable all need to support the active connection mode.

A common real-world case is a monitor that works when connected directly to a laptop’s high-speed full-featured port, then becomes laggy or inconsistent through a cheaper extension cable. Before blaming the monitor or laptop, test with a known compatible replacement cable, such as a brand’s 1.8m Type C display signal cable, and keep the rest of the setup unchanged. Another common case is a portable monitor with two connection ports: one for power and one for full video/data input. Plugging into the wrong port may cause no signal, no touch, or unstable behavior; connection issues are especially common because power, data, and video may share the same physical connector.

Shared bandwidth through hubs and docks

A dock or monitor hub adds another electronics layer between the touchscreen and the computer. If that same path is also carrying video, charging, a keyboard, a mouse, a webcam, external storage, or a headset, the input path becomes more crowded. This does not mean every hub causes noticeable lag, but it does create more places for delay, negotiation problems, or polling conflicts.

Bandwidth numbers help explain the difference. A slower data standard tops out at 480 Mbps, while a faster common data standard supports up to 5 Gbps. A basic mouse polling at 125 Hz updates about every 8 ms, while a 1,000 Hz gaming mouse updates about every 1 ms; touchscreen behavior depends on the monitor’s touch controller, data path, driver, and app response. Shared connection bandwidth can affect responsiveness when video, charging, touch data, and accessories are all routed through one upstream connection.

Insufficient power delivery

Portable monitors are sensitive to power because the display panel, backlight, touch controller, speakers, and connection electronics may all pull from the same cable. Touch lag may appear when brightness is maxed out, speakers are active, the laptop is running on battery, or the monitor is trying to draw more power than the host port can provide. The monitor may not shut off; it may simply become inconsistent.

A useful test is to lower brightness to 50%, disconnect speakers or accessories, and add the monitor’s external power cable if it has one. If touch becomes steadier, the problem is likely power headroom rather than the touch panel itself. For travel setups, this is one reason a portable monitor that works at a desk can feel worse in an airport lounge when powered only by a laptop battery.

Driver mapping, calibration, and edge sensitivity

Touchscreens use a digitizer layer to map finger position to the image on the panel. If the operating system maps touch input to the wrong display, or if calibration drifts, touch may feel delayed, offset, or unreliable. This is especially noticeable in dual-screen laptop setups where an operating system must decide which screen receives the touch event.

Edges can be less forgiving than the center of the panel. Bezels, adhesive layers, case pressure points, privacy filters, screen protectors, folio covers, clip-on stands, oil, moisture, and adhesive residue can reduce touch sensitivity near the border. Edge touch issues often come from calibration drift, accessory interference, weak connection negotiation, driver mapping errors, or digitizer limits.

Quick Comparison: What the Symptoms Usually Mean

How to Test Whether the Monitor, Cable, or Laptop Is Responsible

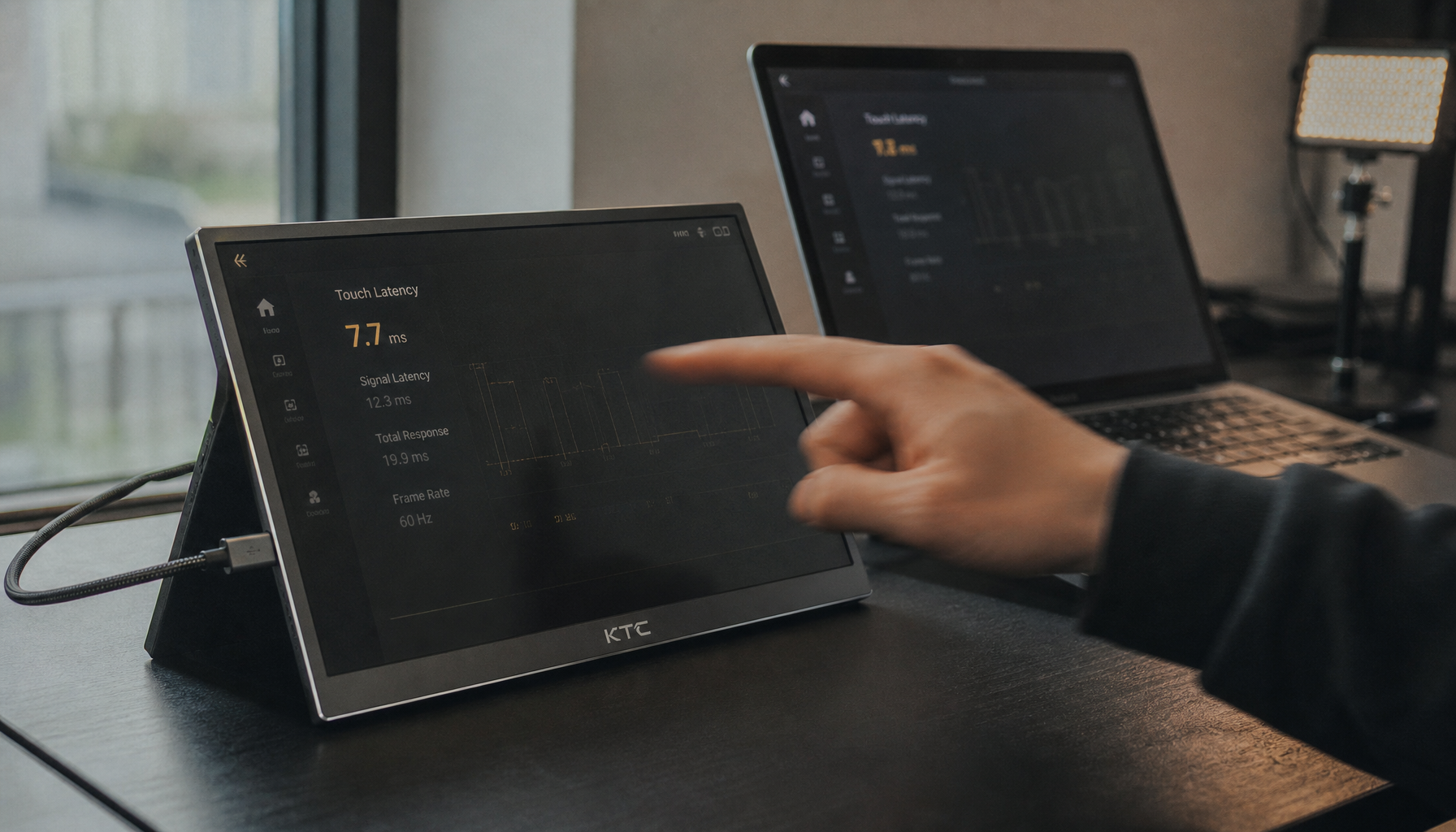

Start with a controlled 240 fps camera test

You do not need lab equipment to compare touch setups. Use a phone that can record at 240 fps, place the portable monitor and your finger in the same frame, then record a simple tap, drag, or drawing stroke. At 240 fps, each video frame is about 4.17 ms; a five-frame gap between finger movement and visible response is about 20.8 ms.

This test measures total visible delay, not monitor-only latency. It includes input polling, operating-system scheduling, app rendering, graphics queues, display scanout, and panel behavior. Still, it is useful because it gives you a repeatable way to compare one cable, port, dock, power source, or laptop against another under the same conditions.

Isolate one variable at a time

To test device-side delay, keep the same monitor, cable, app, brightness level, refresh rate, and touch action, then compare two source devices. If the lag changes sharply between a thin laptop on battery and a desktop-class mini PC, the host system is likely contributing. Device-side delay is easier to spot when the monitor and cable stay constant.

To test monitor-side delay, keep the same laptop and compare the portable touchscreen against another known responsive touch display. If the delay follows one portable monitor across multiple devices and cables, the monitor’s touch controller, firmware, panel processing, or power design may be the bottleneck.

Separate video, power, and touch when needed

If single-cable troubleshooting gets confusing, separate the signals. A dedicated video cable handles video only, so a portable touchscreen setup using that path usually needs a separate data cable for touch input and often separate power as well. This can be less elegant than one-cable operation, but it makes diagnosis clearer because video, power, and touch are no longer competing through one connector.

For example, connect a video cable for video, a data cable for touch, and a dedicated charger for power if the monitor supports that arrangement. If touch improves in this split setup, the one-cable path was likely the problem. If touch still lags, the issue is more likely the source device, driver, app, or monitor hardware.

Fixes to Try Before Replacing the Monitor

Follow a clean troubleshooting order

Touch lag is easier to fix when you avoid changing five things at once. Work from the simplest physical causes toward deeper hardware and software checks. Keep notes on which cable, port, power source, and refresh rate you used so you can spot patterns.

Action checklist:

1. Clean the glass with a screen-safe cloth and remove oil, moisture, dust, and adhesive residue.
2. Remove screen protectors, privacy filters, folio covers, magnetic cases, and clip-on stands, then test all four edges.
3. Connect the monitor directly to the laptop with a short full-featured cable rated for video, data, and power.
4. Add external power to the monitor or use its second power cable if available.
5. Disconnect docks, hubs, webcams, external drives, and other accessories during the test.
6. Confirm the correct display input and operating-system touch mapping, especially in dual-screen mode.
7. Update or reinstall the touch screen driver, graphics driver, and monitor firmware if the manufacturer provides firmware updates.

Tune display settings for perceived responsiveness

Set the portable monitor to its highest stable refresh rate if your cable, port, and graphics hardware support it. A 144 Hz portable gaming monitor can show new frames more than twice as often as a 60 Hz model, which can make touch gestures and game menus look smoother. This will not fix a bad data path, but it can reduce the visible waiting time after the system processes the touch event.

Also check scaling and resolution. A high-resolution portable touchscreen gives sharper detail, but it demands more graphics work and more power than a lower-resolution setup. If a low-power laptop feels laggy at a high resolution, test a lower resolution at the same refresh rate and app load. If responsiveness improves, the source device may be struggling with rendering rather than touch sensing.

Watch for edge-only problems

If only one edge or corner fails, treat it differently from full-screen lag. Remove the case, stand, and protector, then test with a drawing app or touch diagnostic tool from the center outward. If the same edge fails across multiple laptops, cables, and power sources, the digitizer or physical assembly may be at fault.

For portable monitors used in travel bags, edge pressure is a realistic issue. A folio stand that presses into the bezel, a tight laptop sleeve, or a clip-on mount can create pressure points. If the monitor works better outside its case on a desk, the accessory is part of the problem.

What to Check Before Buying a Low-Lag Portable Touch Monitor

Prioritize the right connection specs

For a one-cable setup, look for a port with video output and power delivery support. The product page should clearly state that the port supports video input, touch data, and power behavior; if it only says “single-cable connection,” confirm the details before buying. Video output and power delivery are central specs for portable touchscreen compatibility.

For gaming or fast UI work, also check refresh rate, touch quality, and whether the monitor supports direct single-cable input without a dock. Lower resolution at 15.6 inches is often a practical balance for travel because it is easier on laptop battery and graphics performance than higher-resolution options. A high-resolution portable touchscreen is better for photo editing, dense spreadsheets, and high-resolution creative work, but it needs stronger power and graphics support.

Match the monitor to the job

A portable monitor for office work has different needs than a gaming side screen or drawing display. For spreadsheets, email, and dashboards, stable touch, readable text, and reliable power matter more than a headline refresh rate. For gaming handhelds or laptop gaming, refresh rate, direct connection, and low display processing become more important.

For stylus-style note-taking or design review, check whether the touchscreen is intended for finger input only or supports the pen behavior you expect. Many portable touch monitors are capacitive touch displays for taps, swipes, and basic drawing gestures; they are not always pen displays with pressure sensitivity. If the listing does not clearly describe stylus support, assume basic touch until confirmed.

FAQ

Q: Why does my portable monitor display normally over a single-cable connection, but touch is delayed?

A: Video and touch do not follow the exact same path. The display image may arrive through a video mode while touch input depends on data transfer, the touch controller, operating-system driver, app event loop, graphics rendering, and display scanout. A weak cable, unstable power delivery, overloaded dock, driver issue, or busy laptop can delay touch even when the picture looks normal.

Q: Can a cable really cause touchscreen lag?

A: Yes. A cable can have the right connector shape while still lacking the data, video, or power capability your portable touchscreen needs. Use a short full-featured cable rated for video, data, and power, then test the monitor directly from the laptop without a dock or adapter. If lag disappears, the original cable or hub path was likely the cause.

Q: Is a separate video cable better than a single-cable connection for portable touchscreen monitors?

A: A separate video cable can be easier to diagnose because it separates video from touch data and power, but it alone does not carry touch input. A touchscreen setup over a separate video cable usually needs a separate data cable for touch and often another cable for power. A single-cable connection is cleaner when the laptop, cable, and monitor all support the right modes, but separated video plus data can be more predictable for troubleshooting.

Final Takeaway

The fastest way to reduce single-cable portable monitor touch lag is to simplify the path: direct connection, known-good cable, stable external power, no dock, and a clean screen with accessories removed. Then compare one variable at a time: cable, port, power, refresh rate, source device, and app load.

If lag changes when you switch laptops or close heavy apps, the source device is part of the delay. If lag follows the same monitor across different devices, cables, and power sources, the monitor’s touch controller, firmware, or digitizer is the more likely limit. For a new purchase, choose a portable touchscreen with clearly documented video input, power delivery behavior, reliable touch support, and a refresh rate that fits your work, gaming, or travel setup.
