Can You Run 5K or Ultrawide 5K2K Over DisplayPort 1.4?

Yes, DisplayPort 1.4 can run standard 5K at 60 Hz and ultrawide 5K2K at 60 Hz when the GPU, monitor, cable, and any adapter support the required link mode. Higher refresh rates, HDR, 10-bit color, or USB-C and Thunderbolt display paths may require DSC or a more careful setup.

Your premium monitor is plugged in, but the operating system only offers a lower resolution, the screen blanks during games, or that 5K2K panel refuses to show its full workspace. The practical win is clear: a short, certified DP 1.4 path can unlock 5K-class desktop space without jumping straight to DisplayPort 2.1 hardware. Here is how to know what will work, what may need compromise, and what to check before buying cables or adapters.

The Short Answer for 5K and 5K2K

DisplayPort 1.4 has enough bandwidth for many 5K-class workflows, but “5K” is not one single workload. A 27 in 5120 x 2880 monitor pushes about 14.7 million pixels per frame, while a 5120 x 2160 ultrawide 5K2K display pushes about 11.1 million pixels per frame. That means 5K2K at 60 Hz is usually easier to drive than full 16:9 5K at 60 Hz, assuming similar color settings.

The key specification is usable bandwidth. DisplayPort 1.4 provides 32.4 Gbps raw bandwidth and about 25.92 Gbps effective payload after encoding overhead, and it is commonly described as supporting 5120 x 2880 at 60 Hz or 8K-class modes with compression in DisplayPort 1.4 explainers. In practice, that makes DP 1.4 a strong match for productivity-focused 5K2K panels, creative editing timelines, code-heavy office layouts, and immersive sim or strategy gaming at reasonable refresh rates.

Where buyers get caught is assuming the port label alone guarantees every mode. The whole chain matters: GPU output, monitor input, cable certification, adapter direction, dock bandwidth, firmware, color depth, and whether Display Stream Compression is supported.

What DisplayPort 1.4 Actually Brings

DisplayPort 1.4 is a high-bandwidth PC display connection built for monitors rather than living-room gear. It carries digital video and audio, supports HDR metadata, can use Multi-Stream Transport for multi-display setups, and adds Display Stream Compression, often shortened to DSC.

DSC matters because it is the pressure valve for extreme display modes. It compresses the video stream in a visually lossless way so the link can carry modes that would otherwise exceed raw bandwidth. In practical terms, Display Stream Compression helps DP 1.4 reach higher resolutions and refresh rates than bandwidth alone would suggest.

For a real-world example, a 5120 x 2160 office display at 60 Hz is a very different target from a 5120 x 1440 super-ultrawide gaming monitor at 240 Hz. The first is usually a clean productivity use case for DP 1.4. The second can be far more demanding because refresh rate multiplies bandwidth pressure, and advanced modes may depend on DSC, monitor firmware, and GPU support.

5K2K Is Not the Same as Full 5K

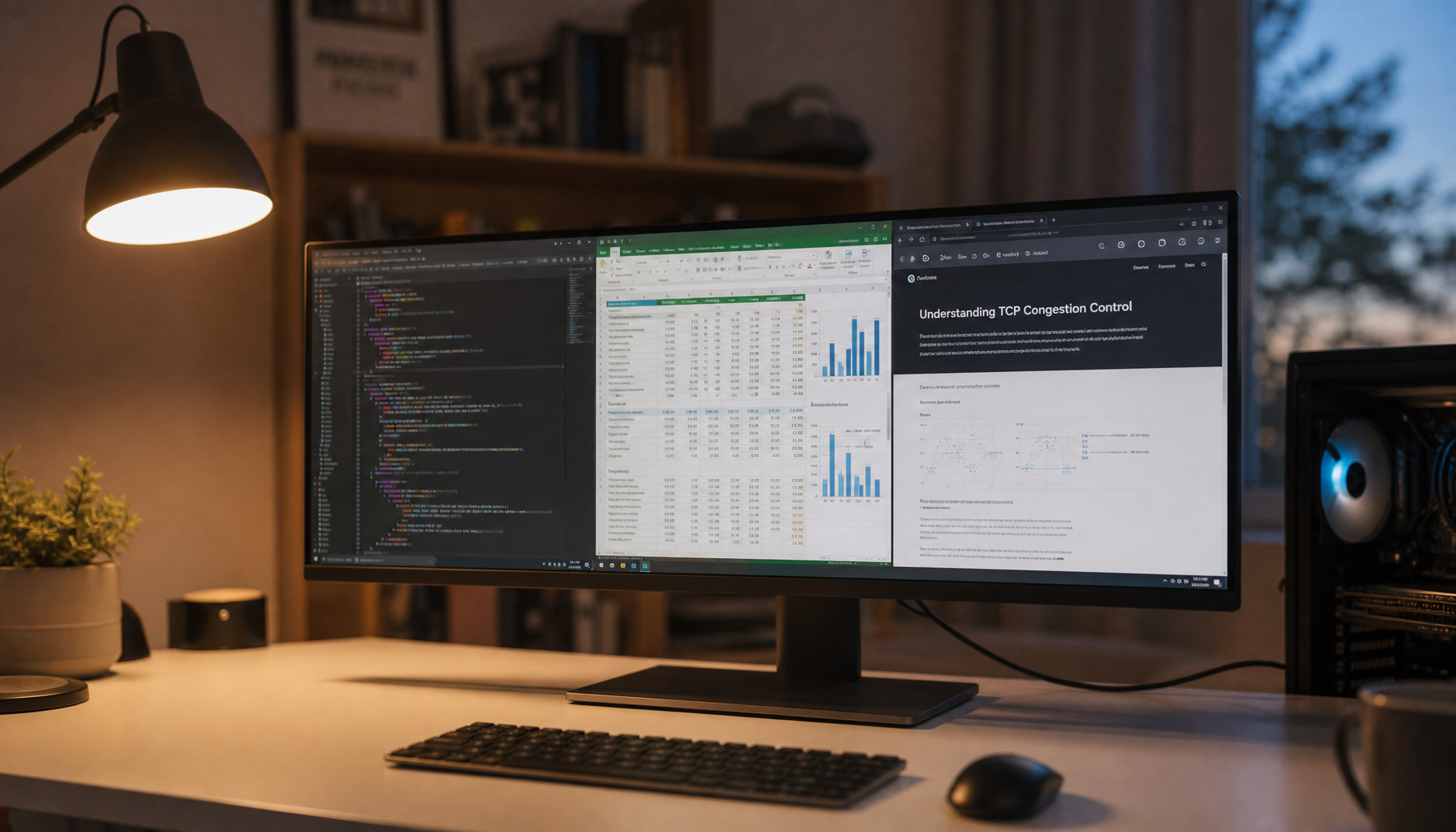

The phrase “5K2K” usually refers to 5120 x 2160, a 21:9 ultrawide format. It gives you the horizontal width of 5K with fewer vertical pixels than 5120 x 2880. For office productivity, that is a powerful layout: a spreadsheet, browser, and chat window can sit side by side without the bezel split of dual monitors.

Full 5K at 5120 x 2880 is sharper and taller. It is excellent for high-DPI design work, photo review, and retina-style scaling, but it asks more from the display link. DisplayPort 1.4 is commonly listed with 25.92 Gbps of effective bandwidth and support for 5K at 60 Hz, which is why DP 1.4 remains relevant even as DP 2.1 arrives.

The practical decision is simple. If you want a clean, reliable, single-monitor command center at 60 Hz, DP 1.4 is often enough. If you want 5K-class resolution plus high refresh, HDR, 10-bit color, and multiple displays through one cable path, DP 2.1 or a more specialized connection plan starts to make more sense.

The USB-C and Thunderbolt Trap

Many 5K displays are not simple DisplayPort monitors. Some USB-C and Thunderbolt displays expect behavior that can confuse PC owners using a graphics card with full-size DisplayPort outputs.

A tested workaround uses a bidirectional DisplayPort 1.4 to USB-C cable, where the GPU’s DisplayPort output feeds a USB-C display input; the key enabler is Display Stream Compression for 5K and even 6K at 60 Hz, depending on the display and cable. The important word is bidirectional. A normal USB-C-to-DisplayPort cable may only work in the opposite direction, from a USB-C computer to a DisplayPort monitor.

There is also a usability tradeoff. A simple DP-to-USB-C cable may carry video only, so the display’s speakers, camera, brightness control, and USB hub may not work. Adapter boxes that combine DisplayPort and USB into USB-C can restore more of those features, but that adds another compatibility point. If the goal is pure image quality for a desktop PC, the one-cable video approach can be a clean value play. If the goal is a full single-cable display experience with accessories, verify accessory support before buying.

Cable Quality Matters, But Expensive Does Not Mean Better

For DP 1.4, the best cable is not the most expensive one; it is the one that reliably carries the required link rate. Certified DisplayPort cables should work for DisplayPort configurations within their capability, and premium pricing does not improve image quality once the digital signal is stable. A bad cable can cause video corruption, audio issues, blanking, or power-up problems.

For 5K and 5K2K, start with a short, certified cable from a reputable maker. If you are using USB-C, confirm direction, DP Alt Mode support, and power behavior. KTC’s cable guidance is especially practical here: missing refresh options, blank screens, and random signal drops are common signs that the cable, adapter, or connection path is the bottleneck, and a short direct connection is the cleanest test for refresh-rate options.

A real-world troubleshooting flow is to connect the GPU directly to the monitor with the shortest certified DP 1.4 cable available, bypass docks and switches, open the monitor’s on-screen menu, confirm its DisplayPort mode is set to the highest available version, then set resolution and refresh in the operating system or GPU control panel. Only after the direct path works should you add a dock, KVM, USB-C adapter, or switch.

When DisplayPort 2.1 Is the Better Buy

DisplayPort 1.4 is still a smart choice for many users because monitors, GPUs, and cables are widely available. It fits 1440p high refresh, 4K productivity, 4K gaming, and many 5K/5K2K 60 Hz workflows. That is the value-oriented sweet spot.

DisplayPort 2.1 is the performance-forward answer when you are planning around 4K 240 Hz, 8K, demanding multi-monitor chains, or long-term headroom. The bandwidth gap is clear: DP 1.4 offers about 25.92 Gbps effective bandwidth, while DP 2.1 can reach about 77.37 Gbps usable bandwidth with newer encoding, and that difference changes what is comfortable for high-refresh gaming. The catch is availability. DP 2.1 support still depends on newer GPUs, newer monitors, and properly rated DP40 or DP80 cables.

For a buyer choosing a 5K2K office display today, DP 1.4 is not automatically outdated. For a buyer building a no-compromise high-end desktop around 5K-class high refresh and HDR, DP 2.1 is the cleaner long-term platform.

Practical Buying and Setup Advice

Choose native DisplayPort 1.4 from the GPU to the monitor whenever the monitor has a full-size DisplayPort input. Avoid adapters unless the display requires them. If you need USB-C, use a cable or adapter explicitly designed for DisplayPort 1.4 in the correct direction, and check whether it carries only video or also USB data.

Do not judge the setup by connector shape. DisplayPort 1.2 and 1.4 can use the same physical connector, and USB-C can carry many different modes. The right question is whether the GPU, monitor, cable, and intermediate hardware all support the mode you want. If a 5K2K monitor only shows 3840 x 2160 or a lower ultrawide resolution, the weak point is often the dock, adapter, cable, or an input setting rather than the monitor panel.

DP 1.4’s strengths are wide hardware support, reasonable cable cost, excellent PC monitor compatibility, HDR and DSC support, and enough bandwidth for 5K-class 60 Hz workflows. Its limits are also real: it has less headroom than DP 2.1, high-refresh 5K-class modes may need DSC, USB-C display paths can be picky, and daisy-chaining multiple high-resolution displays can become bandwidth-limited fast.

FAQ

Can DisplayPort 1.4 run 5120 x 2160 at 60 Hz?

Yes, in a properly supported setup. Since 5120 x 2160 has fewer pixels than 5120 x 2880, and DP 1.4 is commonly cited for 5K at 60 Hz, 5K2K at 60 Hz is a realistic target. Use a direct DP 1.4 connection first, then add adapters only after the base mode works.

Do I need DSC for 5K2K?

Not always at 60 Hz, but DSC may become necessary when you add higher refresh rates, 10-bit color, HDR, or nonstandard timing. If the monitor advertises a mode only with DSC, both the GPU and monitor must support it.

Will any DisplayPort 1.4 cable work?

No. The label is not enough. Use a certified, short, reputable cable, especially for 5K-class displays. If the screen flickers, drops signal, or hides the expected refresh rate, test a shorter direct cable before blaming the monitor.

Can I run a 5K USB-C display from a PC DisplayPort output?

Yes, some setups can work with a bidirectional DisplayPort 1.4 to USB-C cable, but basic cables may provide video only. Camera, speakers, brightness controls, and USB hub features may require a more advanced adapter path.

DisplayPort 1.4 is capable enough for the 5K and 5K2K era when the target is realistic: high-resolution, sharp, productive, and stable at 60 Hz. For extreme refresh rates, HDR-heavy color work, or multi-display expansion, treat DP 2.1 as the premium runway; for most focused desktop builds, DP 1.4 still delivers excellent performance per dollar.
