Set each monitor’s refresh rate from the operating system first, use Extend mode, verify the selected display, and reserve GPU control panels for exceptions. Most conflicts come from duplicated display modes, unsupported cables or docks, automatic refresh features, or trying to force one mirrored signal across mismatched screens.
Does your 240 Hz gaming monitor feel perfect until a 60 Hz side display starts flickering, stuttering, or randomly pulling the setup back to a lower mode? A stable mixed-refresh setup can give your main screen full motion clarity while keeping chat, email, dashboards, and reference windows efficient on a secondary display. This workflow shows how to set each monitor independently, check the hardware path, and prevent the operating system, GPU software, and monitor settings from fighting each other.
Why Mixed Refresh Rates Work
Refresh rate is the number of times per second a display updates its image, so a 60 Hz screen refreshes 60 times per second while a 144 Hz screen refreshes 144 times per second. Modern operating systems support choosing the relevant display first and then changing its rate Advanced display settings, which is the safest starting point because each display exposes only the modes that the monitor, cable, port, and GPU can currently handle.
The performance logic is simple: put refresh rate where motion matters. A 144 Hz, 165 Hz, or 240 Hz center monitor should carry your game, timeline scrubber, fast spreadsheet navigation, or pen input, while a side display at 60 Hz or 75 Hz can handle email, chat, system monitoring, documentation, or a browser. KTC’s mixed-monitor guidance makes the same practical point: different monitors can run different refresh rates when you select the correct screen before changing the setting.

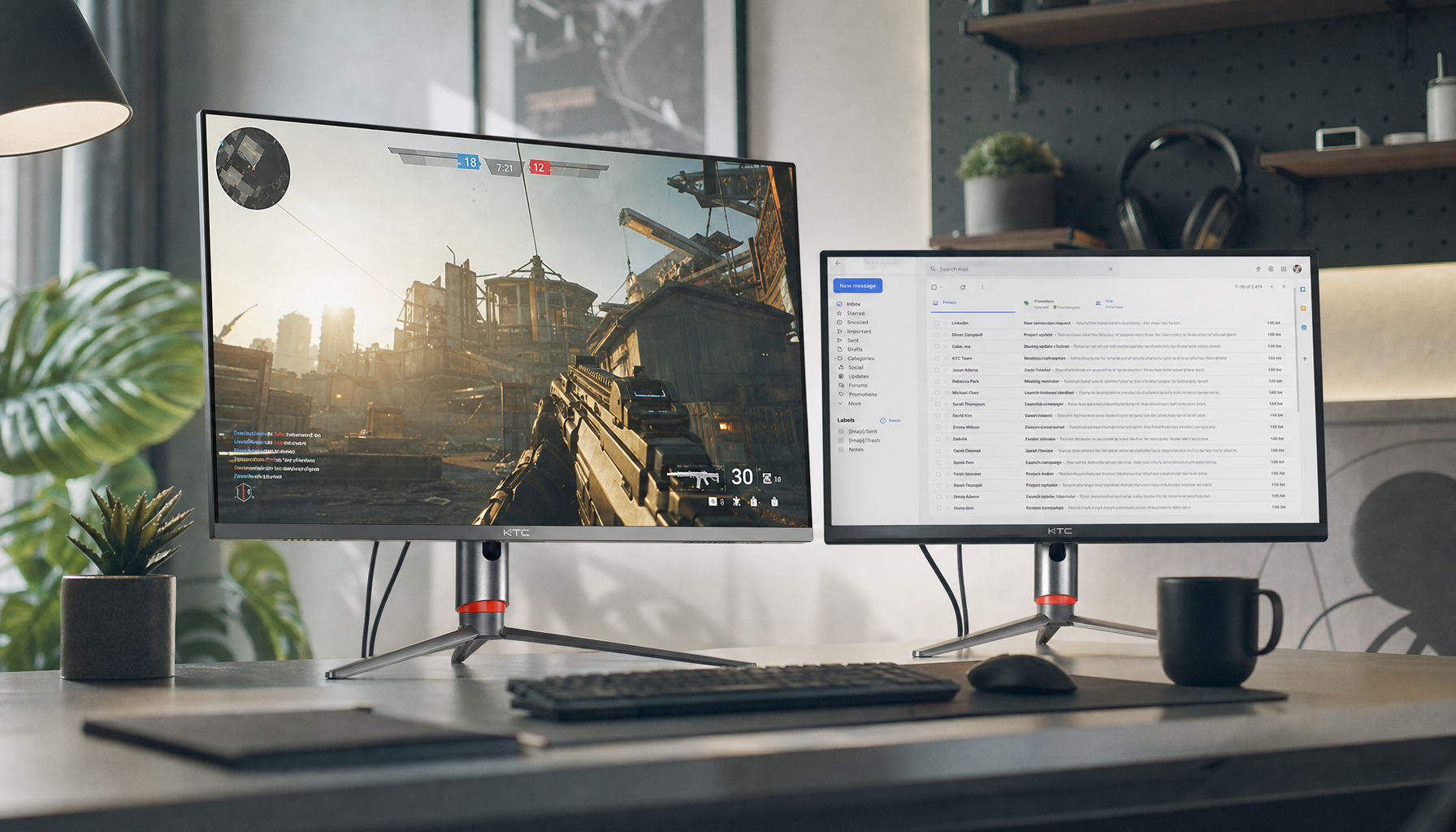

For example, a creator-gamer desk might run a 27-inch 1440p gaming display at 165 Hz over DisplayPort, a 4K editing or document monitor at 60 Hz over HDMI, and a portable smart screen at 60 Hz over USB-C. That is not a downgrade. It is budget allocation: the GPU and cable bandwidth go first to the screen where responsiveness changes the experience.
Start With the Clean Operating System Path
Use Extend, Not Duplicate
The first anti-conflict move is choosing the correct multi-display mode. Common display modes include PC screen only, Duplicate, Extend, and Second screen only, and Extend mode is the right baseline when you want independent behavior across monitors.
Duplicate mode mirrors the same image to more than one display. That can force shared resolution or refresh behavior, especially when one panel is 60 Hz and another is 144 Hz or higher. Extend mode treats the monitors as separate workspace areas, which is why it is better for a performance display plus a productivity display. If you are presenting to a TV or projector, Duplicate may be convenient; if you are tuning a serious desk, it is usually the wrong mode.
Identify Before You Change Anything
The operating system numbers detected displays, and the Identify button shows which physical screen matches each number. This matters because the refresh-rate dropdown changes only the selected display. The multi-monitor setup flow emphasizes Identify, arrangement, and applying the layout so the mouse path matches the desk.
A practical example: if your left 60 Hz monitor is Display 1 and your center 240 Hz monitor is Display 2, changing Display 1 to 60 Hz again does nothing for the gaming panel. Select Display 2, open Advanced display, choose the highest stable refresh rate available, apply it, then repeat for Display 1 and Display 3.
Set Resolution First, Then Refresh Rate
Refresh-rate options depend on the current resolution and hardware path. OS documentation notes that some refresh rates may not support the current resolution, and selecting them can cause the system to change resolution. In practice, lock each monitor to its native resolution first, then choose the refresh rate. A 4K monitor may offer 60 Hz over one cable and 120 Hz over another; a 1440p monitor may expose 165 Hz on DisplayPort but not through an older dock.
This sequence reduces confusion because you are testing one variable at a time. If the screen goes black, flickers, or reverts, you know whether the failure happened after the resolution change or after the refresh-rate change.
Prevent Driver and Control Panel Conflicts
Let One Layer Own the Setting
The cleanest setup uses the operating system’s display settings as the source of truth. GPU software can expose the same display modes, custom resolutions, color depth, scaling, and VRR options. That is useful when the operating system hides a valid mode or when you need game-specific tuning, but it also creates a second place for the same setting to be changed.
A good rule is to make the standard per-monitor refresh choices in the operating system, then use the GPU control panel only for settings the operating system cannot handle well, such as custom mode validation, driver-level frame caps, or advanced scaling. Display calibration advice still maps well to this problem: adjust monitor hardware controls before driver-level changes because driver-level changes add complexity and may behave differently across desktop and video playback.
This is especially important for hybrid desks where one display is tuned for games and another for long reading sessions. If your monitor has its own overclock toggle, adaptive sync switch, response-time mode, or HDMI compatibility setting, set that on the monitor first. Then let the operating system detect the exposed modes. Avoid creating a custom 165 Hz mode in the GPU panel while the monitor’s on-screen menu is still set to a lower compatibility profile.
Watch for Automatic Refresh Features
Some modern systems include Dynamic Refresh Rate, which automatically adjusts refresh rate based on activity to balance smoothness and battery life. That is valuable on laptops and tablets, but it can be confusing when you are trying to clamp a screen to a fixed rate.
A real-world forum case involved a gaming laptop where the display repeatedly changed from 60 Hz to 144 Hz after roughly 10 to 30 minutes, creating visible taskbar artifacts. The user suspected automatic behavior even though no DRR switch appeared. That does not prove every unexplained refresh jump is DRR, but it does show why automatic refresh-rate changes should be treated as a setting conflict first, not as a monitor failure.
If your laptop panel or portable smart screen keeps changing modes, check Advanced display for DRR or VRR status, then check system utilities such as performance mode, battery saver, panel power saver, or gaming mode. On laptops, power profiles can override what looks like a permanent display choice.
Match the Cable to the Refresh Target
Bandwidth Is Usually the Hidden Constraint
Missing refresh-rate options often come from the physical path, not the monitor. KTC’s guidance calls out the monitor, GPU, port, cable, dock, adapter, and resolution as possible limits when a high-refresh mode does not appear. In performance setups, DisplayPort is often the safer connection for high-refresh PC monitors, especially at 1440p or 4K.
Think of it this way: 1080p at 144 Hz is a much lighter signal than 4K at 120 Hz. A cable that works perfectly for a 60 Hz office display may not be suitable for a high-refresh gaming panel. If the refresh option disappears after you move through a dock, USB-C hub, HDMI adapter, or long cable run, test the monitor directly from the GPU output before blaming the operating system.
Symptom |
Likely Cause |
Practical Fix |
144 Hz or 240 Hz is missing |
Cable, port, dock, adapter, or resolution limit |
Try DisplayPort, bypass the dock, or lower resolution temporarily |
Both monitors lock to the same rate |
Duplicate mode or mirrored output |
Switch to Extend mode and set each display separately |
Secondary screen stutters during gaming |
Mixed timing, video playback, or GPU load |
Try 120 Hz and 60 Hz, enable VRR where supported, or match rates for full-screen spanning |
Refresh rate changes by itself |
DRR, system utility, power mode, or driver profile |
Disable automatic refresh features where available and check vendor software |
Screen flashes after applying rate |
Unsupported mode or unstable cable path |
Revert to the last stable rate and test one monitor at a time |
Choose Rates by Use Case, Not Ego
Gaming Main Display With Productivity Side Screen
For a competitive gaming setup, the value stack is clear: use the highest stable refresh rate on the main monitor and keep the side screen practical. A 240 Hz center display with a 60 Hz side monitor is normal if the game stays on the center screen. The side panel does not need 240 Hz to show chat, streaming controls, email, a browser, or a performance overlay.
The exception is immersive multi-monitor gaming, racing, flight simulation, or any full-screen span where the game uses multiple panels as one canvas. In that case, matching refresh rates may be smoother because the GPU is trying to present across displays together. KTC’s guidance specifically notes that matching refresh rates can help when games span multiple monitors or when a secondary display stutters during playback.
Office and Creator Workflows
For office productivity, 60 Hz is usable, 75 Hz feels a little smoother, and 100 Hz can make scrolling and long sessions more comfortable when the hardware supports it. The better move is not always pushing every display to the maximum. A readable, calibrated, correctly placed screen often beats a faster one with eye-searing brightness.
Display comfort is part of performance. Calibration advice warns that many LCDs ship too bright for everyday reading, and a monitor should not be brighter than a well-lit book for text-heavy use. When configuring a mixed-refresh workstation, pair refresh tuning with brightness, contrast, and neutral color balance. A 60 Hz document screen that is comfortable for six hours is doing its job.
Portable Smart Screens and Laptop Docks
Portable displays are often happiest at 60 Hz or 75 Hz because they prioritize simplicity, power draw, and USB-C compatibility. OS documentation also notes that lowering refresh rate can save battery power on laptops and tablets, which matters when a portable smart screen is part of a travel setup. If your laptop drives a 120 Hz internal panel, a 60 Hz portable monitor, and a USB-C dock, do not assume all three should run at the same rate.
A reliable travel profile might be 120 Hz on the laptop screen when plugged in, 60 Hz on the portable display, and 60 Hz on a conference-room TV. That profile keeps motion smooth where you interact most while reducing the chance that a dock or adapter becomes the weak link.
Troubleshooting Without Making the Conflict Worse
When a mixed-refresh setup misbehaves, simplify before you customize. Disconnect all but the main display, set its native resolution and target refresh rate, then add the second display and repeat. If the problem returns only when a dock or adapter is added, the dock path is the suspect. If it returns only after a driver update or gaming utility opens, the software layer is the suspect.
Multi-monitor automation can be useful because workflow triggers can respond to events such as window creation, window focus, desktop unlock, or system idle. That kind of automation can help restore window placement and workflow behavior after monitor changes, but it should not be your first fix for an unstable refresh-rate foundation. Stabilize the operating system settings and cable path first, then automate convenience.
For stacked, side-by-side, and portrait layouts, ergonomics can disguise itself as a technical complaint. One week of stacked monitor testing found that height, tilt, and desk clearance changed comfort dramatically. A mixed-refresh system can be technically correct and still feel bad if the upper display forces your neck upward or the side display sits too far off-axis. Use height adjustment, tilt, and orientation as part of the configuration, not as an afterthought.
FAQ
Can two monitors really run at different refresh rates?
Yes. The operating system can assign refresh rates per display when the monitors are configured independently, the hardware path supports those modes, and the desktop is extended rather than duplicated. Select the exact display in Advanced display settings before changing the rate.
Should I set every monitor to the highest possible refresh rate?
Not always. Use high refresh where motion, aim, scrolling, pen input, or timeline movement matters. A secondary display used for documents, chat, or monitoring can stay at 60 Hz or 75 Hz if it is stable and comfortable.
Why does my 144 Hz option disappear?
The most common causes are the wrong cable, an older HDMI port, a dock bandwidth limit, an adapter, a non-native resolution, or selecting the wrong display. Test the monitor directly from the GPU with a known-capable cable before changing driver settings.
Does lowering monitor refresh rate cap game FPS?
No. Lowering the display from 144 Hz to 120 Hz changes how often the monitor refreshes, but the game may still render above that unless you use an in-game limiter, sync option, or driver-level frame cap.
Final Check
A conflict-free mixed-refresh setup is disciplined, not complicated: Extend mode, correct display selected, native resolution first, stable cable path, operating system display settings as the main control layer, and GPU software only where it adds necessary control. Put the highest refresh rate on the screen that earns it, keep the supporting displays stable, and the whole desk feels faster without becoming fragile.
