How to Confirm Console HDR on Your Gaming Monitor

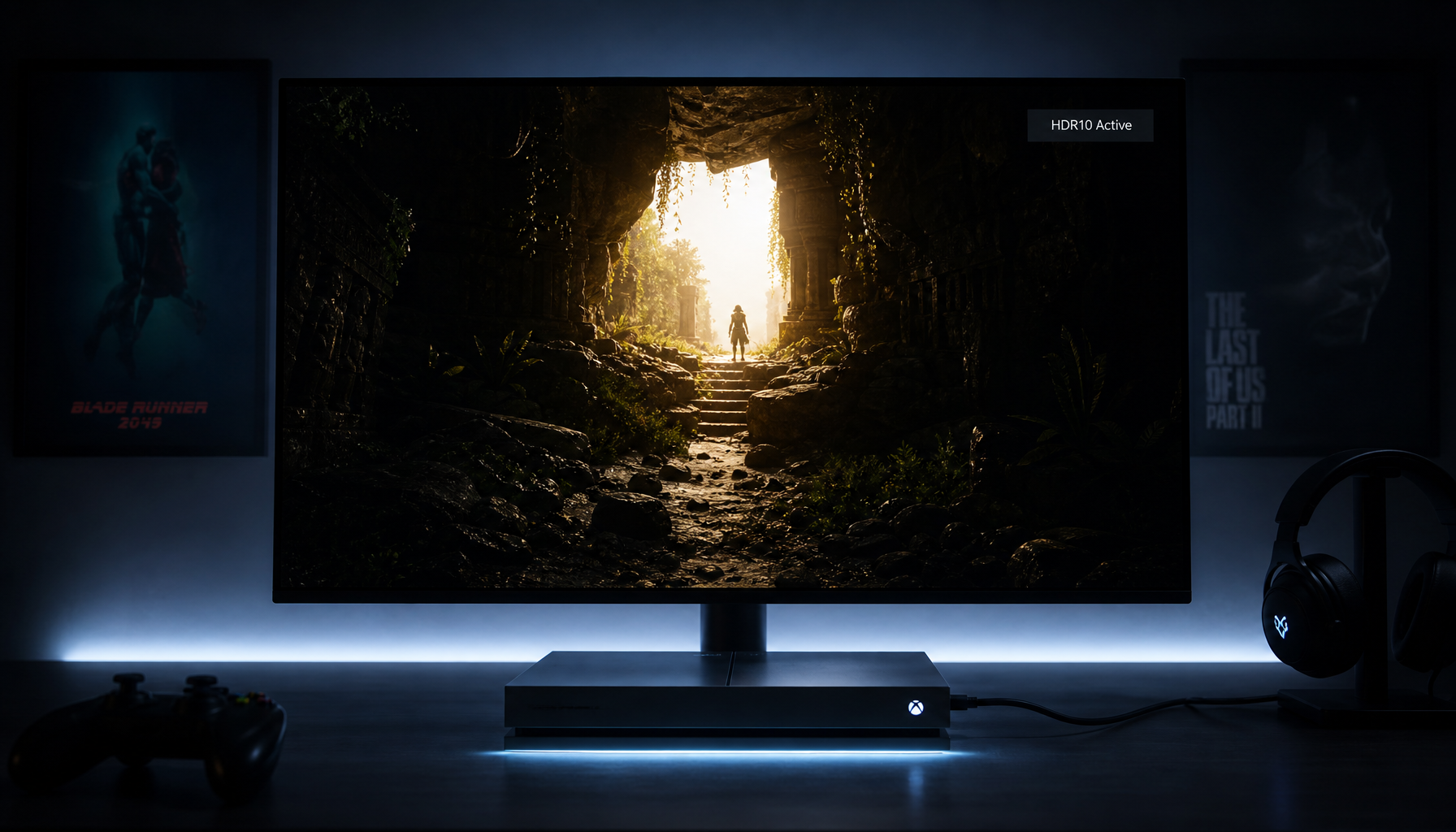

Your gaming monitor is really receiving console HDR only when the console video information screen and the monitor’s own on-screen display both confirm an HDR input signal for the active resolution, refresh rate, bit depth, and color format.

Does your monitor flash an “HDR” badge, but the game still looks flat, gray, or barely different from SDR? In a practical setup check, the fastest proof is not the picture alone; it is matching the console’s HDR output status with the monitor’s input status, then testing with a known HDR game or movie. This guide walks you through the exact checks that separate real console HDR from a misleading preset or weak HDR implementation.

What Has to Be True for Console HDR to Work

A console HDR chain has several links: the console, the game or app, the HDMI cable, the monitor input, the monitor firmware, and the monitor’s HDR picture mode. If any one of those falls back to SDR, your display may still look bright or colorful, but it is not necessarily showing true HDR content. HDR support means a display can accept an HDR signal; it does not prove the panel can produce strong brightness, contrast, color volume, or local dimming performance.

Diagram showing the HDR signal chain from console through HDMI cable to monitor input, firmware, and HDR picture mode

For a gaming monitor, the first decision is whether you are trying to verify signal acceptance or image quality. A monitor can accept HDR10 and still look underwhelming if it has limited peak brightness, no meaningful local dimming, or weak contrast. Entry-level HDR monitors often sit around 300 to 400 nits, while more convincing HDR gaming monitors usually need stronger peak brightness, better black control, and more effective dimming hardware. Even on a Mini LED HDR1400 display such as a 27-inch 4K 160Hz HDR1400 mini-LED gaming monitor, verify HDR through the console video information screen and the monitor OSD rather than judging by the badge alone.

KTC 27-inch 4K HDR1400 mini-LED gaming monitor showing local dimming performance with deep blacks and bright highlights

Real HDR Signal vs. HDR-Like Picture Mode

The monitor’s OSD, or on-screen display, matters more than the label on a preset. A true HDR mode should be triggered by an HDR signal from the console; an “HDR effect,” “HDR emulation,” or “HDR picture enhancement” mode can reshape an SDR image without receiving HDR content. To verify console HDR, first confirm the monitor is in a true HDR mode, not an SDR simulation preset, because a console and monitor must agree on how the HDR signal is interpreted.

A useful real-world test is this: open your console’s video information page, turn on an HDR-supported game, then open the monitor’s input information panel. If the console says HDR is active but the monitor reports SDR, the chain is broken somewhere between output and display interpretation. If both report HDR, you can move on to calibration and image-quality checks.

The Fast Verification Checklist

Gamer checking console HDR output status and monitor OSD input signal confirmation during gaming setup verification

Use this checklist before changing advanced settings. It is designed for console players using gaming monitors, ultrawide monitors with console support, portable monitors, or high-refresh-rate displays.

Connect the console directly to the monitor’s highest-bandwidth HDMI input.
Open the console’s video information screen and confirm HDR is supported and active.
Open the monitor OSD and confirm the active input reports HDR, not SDR or an HDR effect preset.
Check the active mode: resolution, refresh rate, bit depth, and color format.
Launch a known HDR game or HDR movie, not just the console home screen.
Run the console HDR calibration after selecting the monitor’s correct HDR preset.
Inspect bright highlights and dark scenes for clipping, gray blacks, or washed-out midtones.

This direct test is important because signal bandwidth can change when HDR turns on. HDR commonly moves the video path from 8-bit SDR to 10-bit HDR, and that can expose cable, port, dock, adapter, or KVM limitations. If the monitor loses signal when HDR is enabled, the problem is often a bandwidth, cable, port, or display-profile issue rather than a defective panel.

What the Console Should Show

On a console-style HDR setup, the console video screen should report that HDR is available for the selected resolution and refresh rate. If HDR appears available at 60 Hz but disappears at 120 Hz, the active video mode may be too demanding for the cable or monitor input. That is common when a high-refresh-rate monitor supports several features separately but not all at once.

If the console allows color format or transfer-rate adjustments, changing from a heavier RGB or 4:4:4 signal to a lower-bandwidth YCbCr mode may restore HDR stability. The goal is not to chase the largest setting on the page; it is to find the highest-quality mode that remains stable while the monitor still reports HDR.

What the Monitor Should Show

Most gaming monitors include an input-status screen in the OSD. Look for wording such as HDR, HDR10, PQ, 10-bit, 10 bpc, BT.2020, or wide color, depending on the monitor maker. Some monitors also show the active resolution and refresh rate, which is useful when diagnosing whether HDR caused the display to drop from 120 Hz to 60 Hz.

Do not rely only on a temporary “HDR On” pop-up. Open the detailed signal information page after the game is running. The monitor should report HDR while the actual HDR game or media is active, not only during system-menu transitions.

Compare the Key HDR Verification Signals

The table below separates signal proof from image-quality proof. You need both to know whether your monitor is displaying HDR correctly and whether it is displaying HDR well.

Checkpoint	What You Want to See	What It Proves	Common Problem If It Fails
Console video information	HDR supported and active	The console can output HDR to the selected display mode	Console setting, game setting, HDMI input mode, or cable issue
Monitor OSD input status	HDR or HDR10 signal	The monitor is receiving HDR, not just applying an SDR effect	Wrong input, disabled enhanced mode, adapter, dock, or KVM limitation
Bit depth	10 bpc when available	The signal path is carrying higher HDR color precision	Bandwidth fallback or color-format limitation
Color format	RGB, YCbCr 4:4:4, or stable YCbCr HDR mode	The connection can carry the selected HDR format	Too much bandwidth at high resolution and refresh rate
HDR game calibration	Symbols disappear or become barely visible at clipping points	Console HDR output is mapped to the monitor’s brightness range	Highlights clipped, washed-out image, or crushed shadows
High-contrast HDR scene	Bright highlights without gray blacks	The panel has useful HDR hardware, not just HDR compatibility	Low peak brightness, weak contrast, or no meaningful local dimming

A monitor can pass the signal checks and still deliver modest HDR. HDR10 support only confirms that the monitor can interpret the signal; it does not guarantee high brightness, deep blacks, or true local contrast. In budget HDR displays, especially some sub-$500 models, HDR10 support only means the monitor can accept the format, not that it can render premium HDR impact.

Set the Monitor Before You Calibrate the Console

Choose the monitor’s intended HDR gaming preset before running console calibration. If the monitor has separate HDR modes, start with the most accurate HDR or game HDR mode, then enable local dimming if the monitor offers it and if it improves dark-scene contrast without distracting blooming. Running console calibration before selecting the monitor’s final HDR mode can lead to double tone mapping or incorrect clipping points.

Tone mapping is the reason the same HDR game can look different across two monitors. HDR content may be mastered for brightness or color volume beyond what your display can reproduce, so the monitor must compress that signal into its own limits. This affects highlight detail, shadow detail, color saturation, and midtone brightness because tone mapping compresses HDR content to fit the display.

Use the Console Calibration Patterns Correctly

When the console asks you to adjust HDR brightness or black-level symbols, stop when the symbol disappears or is barely visible. Do not raise the slider just because the screen looks more dramatic in the calibration menu. If you push peak brightness too high, clouds, lamps, reflections, snow, and sunlit surfaces can lose texture in actual games.

The most common bad calibration pattern is “brighter but worse.” For example, if a racing game’s headlights become solid white circles or a skybox loses cloud detail, rerun HDR calibration and lower the peak setting. If a horror game loses shadow texture or black areas turn into a gray haze, check both the monitor’s local dimming behavior and the console’s dark-detail setting.

Avoid Double Tone Mapping

Double tone mapping happens when the console, game, and monitor all try to reshape HDR brightness at the same time. The result can be a dim image, muted colors, or highlights that clip earlier than expected. For gaming monitors, use the monitor’s real HDR mode first, then run the console’s system HDR calibration, and finally adjust any in-game HDR sliders only if the game provides its own separate calibration screen.

If the game has an HDR peak-brightness slider, set it near the monitor’s realistic capability rather than the highest value available. A 400-nit monitor cannot show a 1,000-nit highlight the same way a high-end mini-LED or OLED monitor can, so forcing the game to target far beyond the panel’s range often makes the image flatter instead of better.

Fix Washed-Out, Too-Dark, or Unstable HDR

Side-by-side comparison of washed-out uncalibrated HDR versus properly calibrated HDR on a gaming monitor

Washed-out HDR usually comes from one of three causes: the monitor is only accepting HDR without strong HDR hardware, the signal settings are mismatched, or the content is being tone-mapped poorly. If HDR is active but blacks look gray, colors look dull, or the whole image looks dim, weak hardware, settings, or tone-mapping conflicts are likely causes.

Start with a known-good HDR source. Use a game with a proper HDR calibration screen or a reputable HDR movie app on the console. Do not judge HDR from a non-HDR game, an SDR dashboard, or a streaming app that may be outputting SDR because of account tier, app settings, or content availability.

If HDR Looks No Different From SDR

Check whether the game itself supports HDR and whether HDR is enabled in the game menu. Some games use the console system setting automatically; others include their own HDR toggle. If the monitor OSD says HDR but the game looks unchanged, open another HDR title or movie before assuming the monitor is faulty.

Next, compare a bright HDR highlight against an SDR interface element. On a computer, an industry group suggests comparing SDR white from basic desktop apps against HDR white from a test tool, and HDR playback on a video platform should show an HDR label in the quality menu when HDR is active. While consoles do not use the same desktop OS path, the principle is useful: HDR video peak white should have visibly more highlight range than the surrounding SDR interface.

If HDR Looks Too Dark

Dark HDR often means the monitor is tone-mapping aggressively, local dimming is disabled, or the console calibration is set for a brighter display than you actually own. Recalibrate using the monitor’s selected HDR gaming mode and stop at the pattern instructions rather than by preference. Then test a scene with both dark interiors and small bright light sources.

If your monitor has a black equalizer, shadow boost, dynamic contrast, or automatic brightness feature, test with those features off first. They can help in competitive SDR gaming, but they may distort HDR’s intended brightness curve and make calibration less predictable.

If HDR Causes Signal Dropouts

Connect the console directly to the monitor with a known high-quality HDMI cable and remove docks, splitters, capture cards, AV receivers, KVMs, and adapters for the first test. A monitor may support high resolution, high refresh rate, and HDR separately, but not necessarily through every connection path at the same time. If HDR becomes stable after lowering from 120 Hz to 60 Hz, or after reducing color bandwidth, the original mode likely exceeded the stable connection limit.

Portable monitors deserve one extra check. If HDR or high-refresh video over USB-C causes “No Signal,” test HDMI for video plus separate USB power. That isolates whether the USB-C connection is failing because it cannot provide stable video and power at the same time.

Know When the Monitor Is the Limiting Factor

The HDR badge is not the finish line. A display with entry-level HDR certification can accept HDR and still look closer to enhanced SDR because that tier does not require local dimming. A mid-tier HDR certification is a more practical entry point for visible HDR impact because it requires higher peak brightness and local dimming, while better mini-LED models can use hundreds of dimming zones to hold dark areas closer to black while highlights get much brighter.

For monitor buying guidance, prioritize the hardware that determines real HDR performance: peak brightness, full-screen brightness, contrast, black level, color volume, local dimming quality, and clean EOTF tracking. If you are choosing a gaming monitor for console HDR, a spec sheet that says only “HDR10 compatible” is not enough. Look for a credible HDR certification tier, the local dimming zone count, measured brightness reviews, and whether HDMI inputs support your target console mode.

Practical Examples

A 27-inch 1440p gaming monitor that accepts HDR10 but peaks around 350 nits with no local dimming may show the console’s HDR flag correctly while looking gray in dark scenes. In that case, your setup is technically working, but the panel does not have the brightness or contrast range to make HDR look dramatic.

A 32-inch 4K high-refresh monitor with local dimming and much higher peak brightness can show a more obvious HDR difference, especially in scenes with small bright highlights such as neon signs, sparks, muzzle flashes, or sunlight on water. If that monitor looks washed out, the problem is more likely calibration, tone mapping, input mode, or game settings rather than basic panel capability.

FAQ

Q: Can my monitor say HDR even if the game is not really in HDR?

A: Yes. The monitor may show an HDR mode because the console is outputting an HDR container, even if the game itself is SDR or the monitor is applying an HDR-like picture preset. Confirm HDR in the console video information screen, the game’s settings, and the monitor OSD while the game is running.

Q: Is 10-bit required for console HDR?

A: HDR is commonly associated with a 10-bit signal path, and checking for 10 bpc in the monitor or console information screen is a useful verification step. Some displays use internal processing or panel techniques that complicate the spec sheet, so treat 10 bpc as one part of the evidence, not the only proof.

Q: Why does HDR look worse than SDR on my gaming monitor?

A: The monitor may accept HDR but lack the brightness, contrast, local dimming, or color volume needed for strong HDR. It may also be using poor tone mapping, the wrong HDR preset, incorrect console calibration, or a bandwidth-limited color format.

Practical Next Steps

Start with signal proof, then judge image quality. Confirm HDR is active on the console, confirm HDR or HDR10 in the monitor OSD, check the active resolution and refresh rate, and test with a known HDR game or movie. After that, set the monitor’s real HDR gaming mode, enable useful local dimming if available, and rerun console HDR calibration without pushing sliders beyond the point where the test symbols disappear.

If HDR still looks weak after those steps, the monitor may be the limit rather than the console. For your next gaming monitor, treat “HDR compatible” as a baseline input feature and shop for the traits that actually make HDR visible: stronger peak brightness, better contrast, meaningful local dimming, wide color, and stable high-bandwidth HDMI behavior.
