For HDR gaming on a monitor, use 10-bit color when your console, cable, port, refresh rate, and display can support it without forcing a worse tradeoff. If 10-bit drops your refresh rate, weakens chroma detail, or causes handshake problems, 8-bit with proper HDR calibration may look and play better.

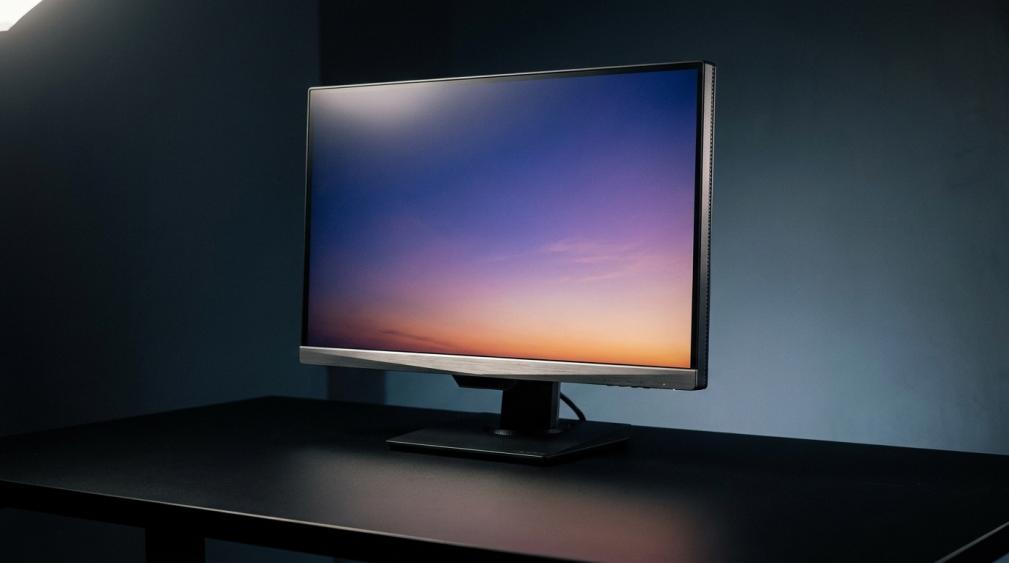

Does your HDR game look bright but strangely striped in skies, smoke, fog, or sunset scenes? The biggest practical benefit of 10-bit output is smoother tonal steps: 8-bit color gives 256 levels per RGB channel, while 10-bit gives 1,024 levels per channel. This guide will help you choose the right console color depth setting for gaming monitors, high-refresh displays, ultrawide screens, and portable monitors without guessing.
What Console Color Depth Actually Changes
Color depth controls how many brightness steps each red, green, and blue channel can use. An 8-bit-per-channel signal has 256 levels for red, 256 for green, and 256 for blue, for about 16.7 million RGB color combinations; a 10-bit signal has 1,024 levels per channel, for about 1.07 billion combinations 10-bit display. That difference is not about making colors more saturated by itself. It is about making transitions between nearby shades finer.
For HDR gaming, those extra steps matter most in scenes with gradual brightness changes. Think open-world skies, racing games at dusk, dim horror hallways, volumetric fog, smoke, water reflections, snowfields, and bright UI highlights over dark backgrounds. If the tonal steps are too coarse, you may see visible bands instead of a smooth gradient.
8-Bit Does Not Mean “Bad”
An 8-bit monitor or console output can still look sharp, fast, and colorful, especially in SDR games, esports titles, menus, and desktop-like console use. Many SDR games and streaming interfaces are still built around 8-bit content, so forcing 10-bit does not automatically improve every screen.
The problem appears when HDR content asks for subtle brightness and color ramps that exceed what native 8-bit output can describe cleanly. Color banding is the visible stepping between color or brightness transitions, and higher bit depth gives the signal more available tonal steps color banding. On a gaming monitor, that usually shows up before you notice it on a TV because you often sit closer to the screen.
10-Bit Does Not Mean “Perfect HDR”
A 10-bit output setting does not guarantee excellent HDR. Your monitor still needs enough peak brightness, usable local dimming or strong contrast, accurate tone mapping, and a good HDR mode. A basic edge-lit monitor that accepts a 10-bit HDR signal may still look washed out compared with a better HDR display.
Also watch for monitor listings that say “10-bit” but mean 8-bit + FRC. Frame rate control simulates extra shades by rapidly alternating nearby tones, and many gaming monitors use it to approximate 10-bit behavior 8-bit + FRC. That can still be useful for HDR, but it is not the same as a native 10-bit panel.
The Best Default Setting for HDR Gaming
For a modern console connected to a capable HDR gaming monitor, the best starting point is 10-bit color with the monitor’s real HDR mode enabled. Consoles tend to use a more controlled HDR path than computers: you run system HDR calibration, set black point and highlight clipping, and many games read those system-level values system HDR calibration. That makes consoles more predictable than a computer desktop where operating system HDR, graphics hardware drivers, browser behavior, overlays, and app-level settings can all interfere.
The practical rule is simple: choose 10-bit if it preserves the resolution, refresh rate, VRR behavior, and image format you actually bought the monitor for. If your 4K 144 Hz monitor drops to 120 Hz with 10-bit but the game runs at 60 FPS or 120 FPS, that tradeoff may be harmless. If your 144 Hz competitive monitor drops to 60 Hz, 8-bit may be the better gaming setting.
Recommended Starting Points by Monitor Type
Display type |
Best starting color depth |
Why it usually works |
Watch for |
4K HDR gaming monitor |
10-bit |
Best match for HDR gradients and console calibration |
Refresh-rate limits, video port capability, chroma changes |
1440p high-refresh monitor |
10-bit if refresh rate stays high |
Good balance for HDR and smooth gameplay |
Some consoles handle 1440p/HDR combinations differently by model and firmware |
1080p esports monitor |
8-bit or 10-bit |
HDR benefit may be limited if the panel has basic HDR |
Input lag, overdrive behavior, washed-out HDR presets |
Console-dependent |
Many consoles do not output true ultrawide gaming formats |
Black bars, scaling, limited HDR modes |
|
8-bit or 10-bit after testing |
Multi-use connector/video input bandwidth and power limits vary widely |
Dim HDR, unstable handshakes, forced lower refresh rates |
|
8-bit + FRC monitor |
10-bit if stable |
Can reduce visible banding versus plain 8-bit output |
FRC artifacts, limited HDR brightness, marketing claims |
When 8-Bit Is the Smarter Choice
Use 8-bit if 10-bit causes obvious penalties: lower refresh rate than your target, disabled VRR, unstable signal dropouts, delayed video handshakes, or blurry-looking text and UI caused by chroma subsampling. The right setting is not the one with the highest number in the menu. It is the one that gives you the cleanest HDR image while preserving the gaming features you can actually feel.
For example, if a high-refresh monitor gives you 10-bit at 120 Hz but 8-bit at 144 Hz, choose based on the game. A cinematic single-player game with HDR skies and dark interiors may benefit from 10-bit at 120 Hz. A competitive shooter where latency and motion clarity matter more may be better at 8-bit and the higher refresh ceiling.
Why 10-Bit Can Affect Refresh Rate, Chroma, and VRR
Color depth consumes bandwidth. So do resolution, refresh rate, HDR metadata, chroma format, and sometimes VRR. At high refresh rates, some display chains reduce chroma detail or bit depth because of cable, port, or bandwidth limits bandwidth limits. This is why changing one console setting can unexpectedly change another.
On monitors, these tradeoffs are more visible than on living-room TVs because the use case is different. You may be sitting 2 ft from a 27-inch or 32-inch screen, reading small UI text, using performance overlays, or switching between 60 FPS and 120 FPS modes. A setting that looks acceptable from a couch may show problems at a desk.
RGB vs. YCbCr Matters
Console video output may use RGB or YCbCr depending on the console, display, and selected mode. RGB is often preferred for monitor use because it keeps computer-style text and UI edges clean, while YCbCr can be useful when bandwidth is tight. However, if the console uses chroma subsampling to fit 10-bit HDR at a high refresh rate, fine colored details may look softer.
This matters most in games with dense HUDs, colored minimaps, small text, and thin UI lines. If 10-bit HDR makes gradients smoother but menu text looks less crisp, check whether the console or monitor changed the color format. On a desk monitor, that tradeoff can be more annoying than mild banding.
Cable and Port Choice Can Change the Answer
A monitor’s best video input may not be every video input. Some displays have one full-featured gaming input and another input with reduced capabilities. Portable monitors can be even more variable because power delivery, alternate display modes, and compact video adapters may restrict available modes.
Use the cable that came with the console or a certified high-bandwidth replacement, then plug into the monitor input labeled for the highest refresh or HDR support. If 10-bit appears unavailable, flickers, or forces a lower mode, the issue may be the cable or port rather than the panel itself.
How to Set and Verify HDR Color Depth
Start with the monitor, not the console. Select the monitor’s true HDR mode first, avoid fake “HDR effect” presets for real HDR games, and reset any extreme contrast or black equalizer settings before calibration. Monitors often ship with showroom-oriented defaults such as overly cool color temperature, excessive contrast, or boosted brightness monitor color settings. Those defaults can make HDR look punchy in a store but inaccurate at home.
Then run the console’s HDR calibration screens. Set the black point and highlight clipping point exactly as instructed, usually stopping when the symbol or pattern is barely visible rather than pushing sliders higher. Overraising HDR sliders can clip bright detail, so clouds, lamps, explosions, and reflections lose texture.
Practical Setup Checklist
- Enable the monitor’s real HDR mode before changing console color settings.
- Set the console to 10-bit color if it preserves your target resolution and refresh rate; on a 4K 160 Hz Mini LED HDR monitor such as a gaming monitor, also verify that it does not soften chroma detail or destabilize VRR.
- Keep RGB/full-range output when available and stable for monitor use.
- If 10-bit causes signal limits, test 8-bit at the higher refresh rate before deciding.
- Run console HDR calibration after changing color depth, HDR mode, or input port.
- Check a sky, fog, smoke, or shadow-heavy scene for banding and crushed detail.
- Save separate monitor presets for HDR gaming and SDR desktop-style use if your display allows it.
Use a Gradient Test, Not Just a Game Menu
A game menu is not a reliable color-depth test because its art style, compression, and post-processing may hide problems. A better method is to use neutral and color gradient tests in full-screen mode. A properly configured monitor should show smooth steps with similar color increments, while misconfigured displays may show uneven steps, color-temperature shifts, or obvious banding dynamic range test.
When checking a monitor, sit at your normal gaming distance and view a neutral gray gradient, then red, green, and blue gradients. You are looking for sudden jumps, tinted bands in a neutral ramp, or sections where the gradient appears to pause and then jump. If switching from 8-bit to 10-bit reduces those artifacts without breaking refresh rate or VRR, keep 10-bit.
Monitor Settings That Matter as Much as Bit Depth
Color depth is only one part of HDR quality. Brightness, contrast, black level, gamma, color temperature, tone mapping, and local dimming behavior can make a bigger visible difference than the 8-bit versus 10-bit toggle on some monitors. Backlight controls overall screen brightness, brightness adjustments can shift black points, and contrast affects how well bright and dark areas separate brightness and contrast.
For SDR use, gamma around 2.2 is commonly treated as a standard baseline. Some gamers prefer a lower gamma range for dark competitive or horror games because it lifts shadow visibility, while higher gamma can make cinematic content feel deeper. For HDR, however, avoid using SDR-style gamma tricks as a substitute for proper HDR calibration.
Avoid Clipping Highlights and Crushing Blacks
If HDR looks dramatic but you cannot see detail in bright clouds or dark corners, the problem may not be color depth. Excess contrast can clip highlights and crush shadow detail. A monitor can receive a 10-bit HDR signal and still hide information if its preset is too aggressive.
A quick field test is to load a game scene with bright sky, shaded interiors, and UI elements visible at the same time. If lowering contrast or rerunning HDR calibration restores cloud texture and shadow detail, that is a calibration issue. If gradients remain striped after calibration, color depth, dithering, panel capability, or bandwidth limits are more likely.
Use SDR Mode for Predictable Non-Gaming Work
HDR mode is not always the best desktop-style mode for a monitor connected to a console or computer. Computer HDR can mix SDR windows, HDR games, browsers, overlays, graphics hardware tone mapping, and monitor profiles in one output path computer HDR variables. Even on consoles, SDR menus and streaming apps may look more predictable in SDR mode.
If your monitor supports separate presets, keep one calibrated HDR preset for console games and one SDR or standard-color-like preset for web, productivity, and older games. This is especially useful for portable monitors and ultrawide displays that may have limited HDR brightness or unusual scaling behavior.
Common Misconceptions About 8-Bit, 10-Bit, and HDR
One common misconception is that 10-bit automatically means wider color. Bit depth and color gamut are related in HDR workflows, but they are not the same thing. Bit depth controls how finely the display steps from dark to bright, while gamut describes the range of colors the display can cover bit depth. A wide-gamut 8-bit image can still band, and a 10-bit signal on a narrow-gamut panel can still look limited.
Another misconception is that “32-bit color” means better HDR than 24-bit color. In common graphics terminology, 24 bits per pixel often means three 8-bit RGB channels, while 32 bits per pixel usually adds an 8-bit alpha channel rather than increasing visible RGB precision 24 bpp color. For console HDR settings, the practical question is usually bits per color channel, not total bits per pixel.
Native 10-Bit vs. 8-Bit + FRC
Native 10-bit panels have true 1,024-step precision per channel. 8-bit + FRC panels approximate intermediate tones by rapidly alternating between nearby shades. Many gaming monitors use 8-bit + FRC because it can improve gradient smoothness while keeping panel cost and speed reasonable.
For buying guidance, do not reject every 8-bit + FRC monitor automatically. Instead, evaluate the whole HDR package: peak brightness, contrast, local dimming, video bandwidth, refresh-rate support, VRR support, and real user-facing HDR modes. A well-tuned 8-bit + FRC gaming monitor can look better than a weak “HDR” monitor with poor brightness and bad tone mapping.
FAQ
Q: Should I always choose 10-bit color for console HDR?
A: Choose 10-bit when it keeps your preferred resolution, refresh rate, VRR, and image clarity intact. If 10-bit forces a major refresh-rate drop, causes flicker, disables VRR, or makes UI text softer through chroma changes, test 8-bit at the better performance mode and compare real game scenes.
Q: Can an 8-bit monitor still display HDR?
A: Yes, some 8-bit or 8-bit + FRC monitors can accept HDR signals, but the quality depends heavily on the panel and HDR implementation. Expect the biggest limitation to appear in gradients, highlights, fog, smoke, and dark shadow ramps rather than in simple colorful scenes.
Q: Why does HDR look different on my console and computer using the same monitor?
A: Consoles usually send a more controlled full-screen HDR signal and rely on system calibration, while computers have more variables, including operating system HDR behavior, graphics hardware settings, color profiles, app behavior, overlays, and full-screen versus borderless modes. That is why the same monitor can look smoother or more consistent from a console than from a computer without careful setup.
Key Takeaways
For most HDR console gaming on a capable gaming monitor, start with 10-bit color, enable the monitor’s real HDR mode, and run the console’s HDR calibration afterward. Keep that setting only if it preserves the resolution, refresh rate, VRR behavior, RGB or acceptable chroma output, and signal stability you need.
If 10-bit causes tradeoffs, do not treat 8-bit as a failure. A clean 8-bit high-refresh signal with good calibration can be better than a compromised 10-bit signal, especially for competitive games. The best setting is the one that produces smoother gradients, preserved highlight and shadow detail, stable gameplay features, and readable monitor-distance UI in the games you actually play.
