Matching your monitor's actual weight without the stand to a monitor arm's rated load range is the single most important step to avoid sagging, nose-diving, or damaging expensive gear. Many buyers rely on screen size or gross shipping weight instead, but those numbers mislead. The real decision starts with the display-only weight, VESA pattern, and—for curved ultrawides—the forward torque created by the curve.
How to Calculate Your Monitor’s Actual Mounting Weight
The only weight that matters for arm selection is the monitor’s weight without the stand. Manufacturers often list three figures: gross weight (with packaging), net weight (with stand), and display-only weight. Using the net or gross number leads to buying either an oversized heavy-duty arm you don’t need or an under-rated arm that will fail.
A simple way to verify is checking the user manual or specifications sheet. If that information is missing, place the monitor on a bathroom scale while subtracting your own weight. For KTC models, published display-only weights are: H49S66 at 24.3 lbs, H34S18S at 12.8 lbs, and H32S25E at 13.0 lbs. These values determine whether a standard arm suffices or a heavy-duty gas-spring model is required.
KTC Monitor Models That Typically Need a Heavy-Duty Arm
Use this as a buying check: compare each KTC model’s weight without stand, VESA pattern, and curvature to see whether a heavy-duty arm is the safer fit.
View chart data
| Model | Weight without stand (lbs) | Curvature | VESA Pattern | Heavy-duty arm recommended |
|---|---|---|---|---|
| H27 Series | ~13.2 | flat or mild | 100x100 | Usually not |
| H32S25E | 13.0 | 1000R | 100x100 | Borderline |
| H34S18S | 12.8 | 1500R | 100x100 | Usually not |
| H49S66 | 24.3 | 1000R | 100x100 | Yes |
This chart helps you quickly see which models cross into heavy-duty territory. Always confirm the exact figure in the latest manual, as internal revisions may occur.
Understanding VESA Standards and Weight Limits
VESA standards classify mounting patterns and weight capacities. The most common for gaming monitors is MIS-D using 75x75 mm or 100x100 mm hole patterns, officially rated to support displays up to 30.8 lbs (14 kg). Larger professional or TV-style screens may use MIS-E or MIS-F patterns with higher weight allowances.
KTC monitors generally follow the MIS-D standard, but many premium models feature a recessed VESA housing. You must use the included standoff spacers to create the proper gap between the monitor back and the arm plate. Forcing a standard plate directly into the recess risks damaging the monitor casing or creating an insecure mount. This VESA FDMI Overview details the official classifications and load limits that manufacturers follow.
The Impact of Curvature and Ultrawide Dimensions on Arm Stability
Curved monitors, especially aggressive 1000R panels like the KTC H49S66, shift the center of gravity forward by roughly 4–6 inches. This creates additional torque on the arm’s tilt mechanism. A 24 lb curved ultrawide can therefore feel closer to a 35–40 lb flat panel in terms of stress on the pivot.
The common result is the “nose-dive” effect where the screen slowly tilts downward despite being within the arm’s stated weight limit. Standard friction or basic tilt pivots often cannot counter this leverage. For 1000R ultrawides over roughly 20 lbs, a heavy-duty pivot (sometimes called an HD or high-torque pivot) becomes necessary. Even when the total weight rating is satisfied, the curvature torque changes the arm choice.
Preparing Your Desk for a Heavy-Duty Monitor Mount
The clamp or grommet of a heavy monitor arm concentrates significant pressure on a small area of the desk. Standard MDF or particleboard tops around 25 mm thick can crack or sag under loads above 15–20 lbs. Solid wood performs better structurally but still benefits from protection against surface crushing.
Steel reinforcement plates spread the load and can reduce point pressure by up to 60 % according to common ergonomic setup guidance. This makes many popular desks usable that would otherwise be marginal. Never mount heavy-duty arms directly to tempered glass without specialized riser kits or frames, as the concentrated force risks shattering the surface.
Our related guide Can You Mount a Monitor Arm to a Glass Desk Without Breaking It? Safety Checks, Risks, and Better Setup Options explores these material risks in more detail.

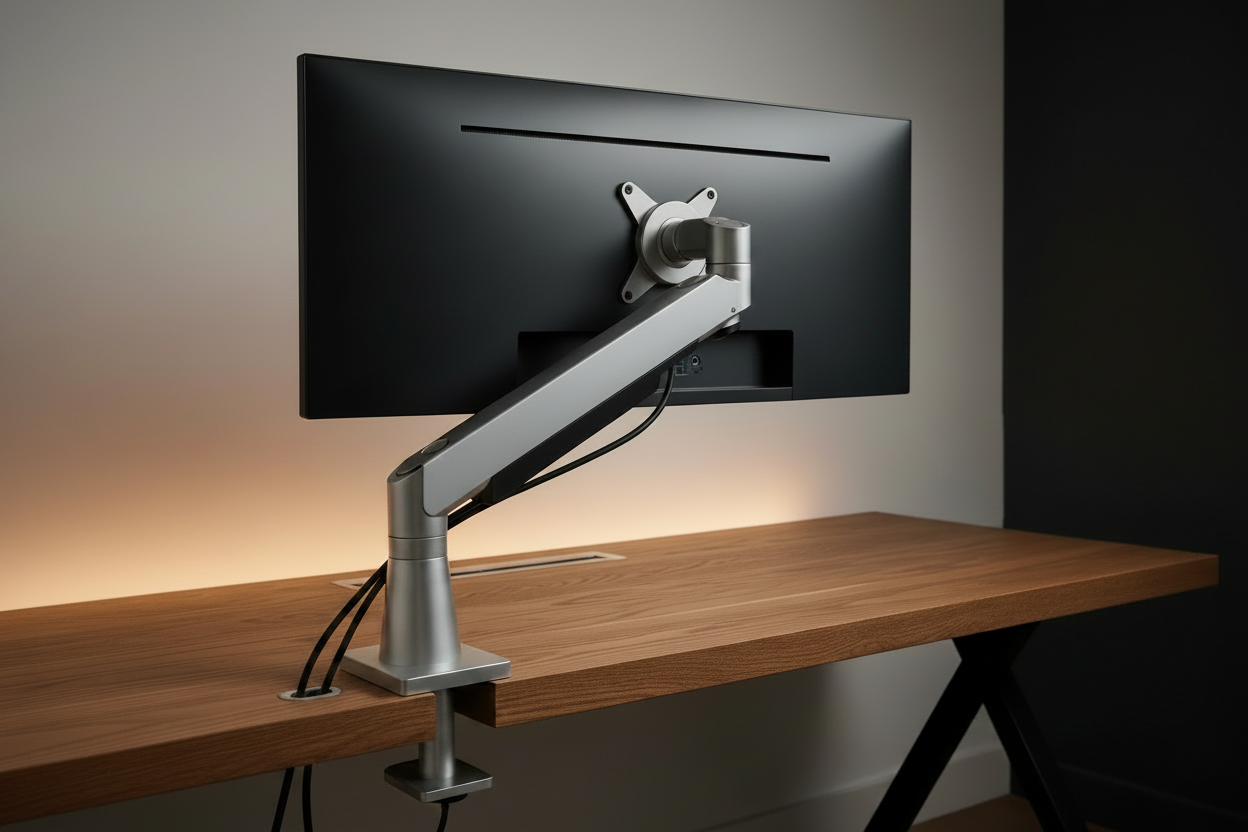

Choosing the Right Arm: Gas Spring vs. Friction-Based Mounts
Gas spring arms are generally the better choice for heavy or ultrawide displays. They allow precise tension adjustment so the monitor “floats” at any height and angle without drifting. Friction-based arms work reliably in static positions but become difficult to reposition when supporting heavier loads.
Pay close attention to the arm’s load range rather than a single maximum weight figure. An arm rated 20–40 lbs may perform poorly with a 13 lb monitor because it lacks sufficient low-end tension. For the KTC H49S66 or similar 24 lb ultrawides, look for arms explicitly rated for curved or heavy-duty use with robust tilt mechanisms.
Premium options such as the Ergotron HX series handle 49-inch curved panels well, while more accessible heavy-duty models suit 32–34 inch setups. Always verify the specific arm’s compatibility with your monitor’s weight, depth, and VESA pattern before purchase.
When building combat-station style setups, also consider how your choice integrates with other ergonomic elements. Our article on Home Office Setup Guide: How to Choose the Right Ergonomic Monitor provides complementary advice on balancing weight, adjustability, and daily comfort.
For gamers seeking immersive curved displays, explore the Curved Monitors collection to match arm requirements with available models. The KTC 49" DQHD 180Hz 1000R Curved Gaming monitor | H49S66 is a prime example of a panel that benefits from heavy-duty mounting solutions.
FAQs
How Much Does a Gaming Monitor Weigh Without the Stand?
Gaming monitors typically range from 8 to 26 lbs without the stand. Compact 27-inch models often sit around 12–14 lbs, while 49-inch ultrawide curved panels like the KTC H49S66 reach 24.3 lbs. Always use the manufacturer’s display-only specification rather than packaged or stand-inclusive weight.
Does Monitor Size Directly Determine the Required Arm Capacity?
No. Two monitors of identical diagonal size can differ by 8–10 lbs depending on panel technology, curvature, and chassis design. Weight without stand combined with curvature torque provides the accurate compatibility metric, not screen size alone.
Can a Standard Monitor Arm Safely Hold a 1000R Curved Ultrawide?
Many standard arms cannot. The forward center-of-gravity shift in 1000R panels often causes tilt flop even when total weight is within limits. Heavy-duty gas-spring arms with reinforced tilt pivots or add-on HD pivot kits are usually required for reliable long-term stability.
Why Does My Monitor Sag or Tilt Down Even Though It Is Under the Arm’s Weight Rating?
The rating usually assumes a flat panel with centered gravity. Curvature moves the mass forward, creating leverage that standard tilt joints cannot counteract. This torque effect is why many users need a higher-spec pivot mechanism than the raw poundage suggests.
Should I Use a Steel Plate When Mounting a Heavy Monitor Arm on an IKEA Desk?
Yes for most MDF or particleboard IKEA desks. The concentrated clamp pressure can exceed the material’s safe PSI limit. A steel plate distributes force and prevents cracking or compression damage. Honeycomb-core models such as the Linnmon should be avoided entirely with heavy arms.
What VESA Pattern Do Most KTC Gaming Monitors Use?
The majority use the 100x100 mm MIS-D pattern. This standard supports up to 30.8 lbs, covering nearly all current KTC gaming and ultrawide models. Confirm the exact pattern and any recessed housing requirements in the product manual before selecting an arm.
Is a Gas Spring Arm Always Better Than a Friction Arm for Heavy Monitors?
For monitors over approximately 15 lbs or with significant curvature, gas spring designs usually provide easier adjustment and more stable floating behavior. Friction arms remain viable for lighter, static setups but require more effort to reposition heavier displays over time.
