A dual gaming monitor setup succeeds only when VESA compatibility, desk load capacity, and precise alignment are treated as a single architectural plan rather than separate purchases.
Verifying VESA Compatibility and Mounting Standards
Most 27-inch gaming monitors follow the VESA MIS-D standard, which defines either a 75x75 mm or 100x100 mm square hole pattern using M4 screws with a typical 10 mm thread depth. The VESA Flat Display Mounting Interface overview confirms these dimensions as the common interface for displays between 12 and 30 inches.
Some gaming panels, including certain KTC models with circular or recessed VESA housings, sit deeper than the mount plate. In these cases standard plates sit unevenly unless plastic spacers or standoffs are inserted to create a flush contact surface. Using screws longer than the specified depth can bottom out inside the housing and damage the panel or strip threads.
The chart below shows the three most common VESA patterns and the monitor sizes they typically support.
Common VESA Patterns for 27-Inch Gaming Monitors
Choose the pattern that matches your monitor's rear mounting holes before buying an arm.
View table
| Pattern | Typical Size Range | Screw Size |
|---|---|---|
| MIS-D 75 mm | Up to 24 in | M4 x 10 mm |
| MIS-D 100 mm | 24–30 in | M4 x 10 mm |
| MIS-E 200 mm | 32+ in | M4 or M6 x 12 mm |
Desk Integrity: Preventing Sag, Drift, and Clamp Failure
A dual-arm clamp exerts concentrated pressure at one point on the desk edge. Solid hardwood tolerates this load directly, but MDF, particleboard, and hollow-core desks compress over time, causing the arm to tilt forward and the monitors to drift out of alignment.
Steel reinforcement plates spread the pinch force across a larger area and are considered mandatory for any non-solid-wood surface. Without them, visible sag can appear within months and the desk surface may crack under sustained weight.
Users should also verify at least 2 inches of flat edge clearance behind the clamp and confirm the desk thickness meets the mount manufacturer's minimum rating before installation.
The Symmetry Protocol: Mastering Vertical and Horizontal Alignment

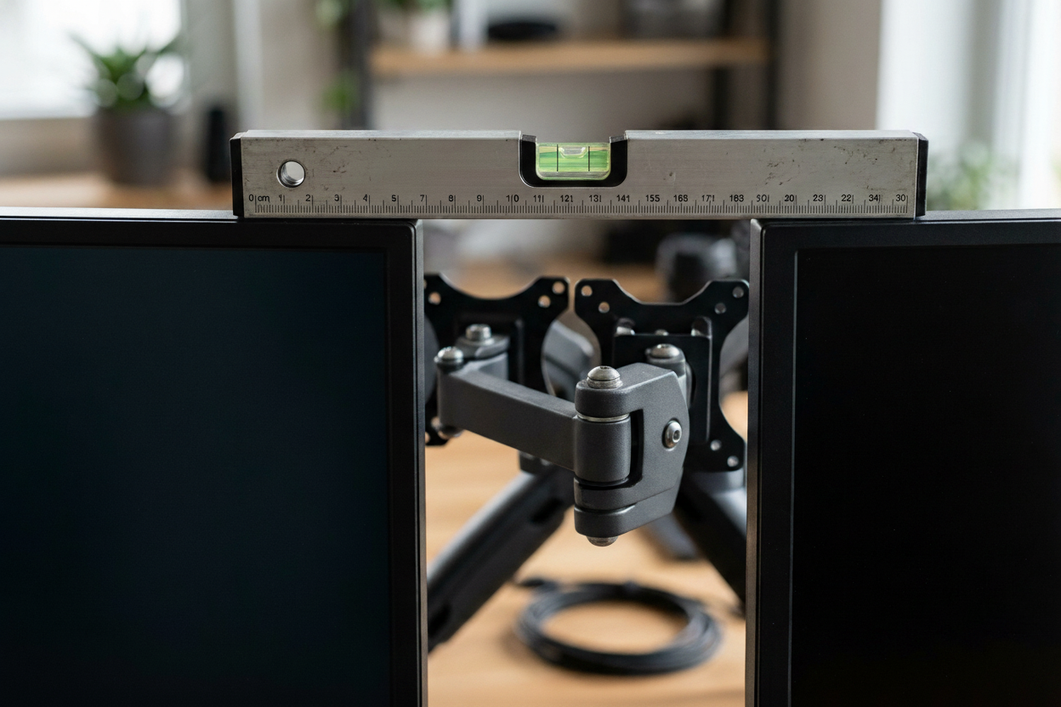

Top-edge alignment produces the most consistent visual horizon because bottom bezels and chin depths vary between models. Place a spirit level across the top frames of both monitors and adjust height until the level reads true before tightening any joints.
Center the mount pole on the desk midpoint so each panel sits equidistant from the user's primary gaze line. Once vertical position is locked, pivot the side monitors inward 15–30 degrees to form a gentle V-shape that keeps the entire screen surface within comfortable peripheral vision without excessive neck rotation.
Symmetrical dual-monitor VESA setup guidance provides a practical three-step checklist that reinforces this top-down reference system.
Beyond Thin Bezels: Planning for Visual Continuity
Thin-bezel marketing can mislead buyers into expecting zero visible gaps. Every LCD panel contains an internal black matrix border that remains even when the outer frame is narrow. The resulting active-to-active gap creates a thin dark band that can interrupt fast-motion gaming or side-by-side spreadsheets.
One effective physical workaround is the overlap method: position the secondary monitor slightly behind the primary so its outer bezel tucks under the primary's edge, shrinking the visible dead zone. GPU drivers such as NVIDIA Surround or AMD Eyefinity can then compensate for the remaining millimeter gap with software bezel correction, restoring image continuity.
KTC's thin-bezel designs reduce the starting gap and make overlap or software correction more effective for users who want the closest approximation to a single large canvas.
Setup Validation: The Stability and Cable Routing Checklist
Before final use, perform a pre-flight tension check on every joint, verify that the clamp fingers remain flush against the desk, and confirm cable slack prevents tension from tugging monitors out of position. Route cables along the arm channels or use Velcro ties to keep excess length from creating drift over weeks of use.
Common post-install issues include arm sag from under-tensioned gas springs and bezel clipping in multi-monitor software; both are usually resolved by re-leveling the top edges and adjusting driver bezel compensation values.
Frequently Asked Questions
What VESA Size Do Most 27-Inch Gaming Monitors Use?
The majority of current 27-inch gaming panels use the 100 x 100 mm MIS-D pattern. Always measure the hole spacing on the rear of your specific model before ordering an arm.
Do I Need Reinforcement Plates for an MDF Desk?
Yes. MDF and particleboard crush under the concentrated pressure of a dual-arm clamp. Steel plates are the standard solution to distribute force and prevent long-term surface damage.
Should I Align Monitors by the Top or Bottom Edge?
Align by the top edge. Manufacturing differences in the lower bezel area make bottom-edge alignment unreliable and visually uneven.
How Much Inward Angle Is Best for Dual Monitors?
A 15–30 degree inward V-shape keeps both screens within natural peripheral vision while minimizing neck strain for most seated users.
Can Thin Bezels Eliminate the Gap Between Two Monitors?
No. Internal black matrix borders still exist. Thin outer frames reduce but do not remove the visible gap; software compensation or slight physical overlap is required for the closest result.
