To fully unlock the PS5 and Xbox Series X capabilities, choose a monitor that reliably delivers 4K resolution at 120 Hz along with VRR, ALLM, and usable HDR. The key is verifying actual HDMI 2.1 bandwidth, panel brightness, and local-dimming performance rather than relying on marketing labels alone.
Technical Requirements for Next-Gen Console Gaming
The PlayStation 5 supports HDMI 2.1, enabling 4K resolution at 120 Hz, Variable Refresh Rate (VRR), and Auto Low Latency Mode (ALLM). Xbox Series X requires an HDMI 2.1-compliant display and an Ultra High Speed HDMI cable for the same 4K 120 Hz output. Both consoles also benefit from VRR to reduce screen tearing and stutter when frame rates fluctuate.
For a 27- to 32-inch screen, 4K resolution matches the pixel density consoles were designed to deliver. Lower resolutions remain viable for some players, yet they leave console output underutilized on modern displays.
The HDMI 2.1 Checklist: Bandwidth and Cables
Not every monitor labeled HDMI 2.1 performs the same. Ports rated at 24 Gbps often force chroma subsampling on the PS5 at 4K 120 Hz because the console lacks Display Stream Compression. Monitors using 40 Gbps or higher controllers maintain fuller 4:2:2 or 4:4:4 chroma at the same settings.
The HDMI 2.1b Specification standardizes 48 Gbps bandwidth to support uncompressed 4K, VRR, and ALLM. Pair any qualifying monitor with a certified Ultra High Speed HDMI cable to avoid bandwidth bottlenecks.
HDMI 2.1 Bandwidth Impact on Console Output
Comparison of port bandwidth versus achievable 4K 120 Hz quality on PS5 and Xbox Series X
Show table
| Port Bandwidth | PS5 4K 120 Hz Chroma | Xbox 4K 120 Hz Chroma |
|---|---|---|
| 24 Gbps | 4:2:0 (noticeable in UI) | 4:2:2 with DSC |
| 32-40 Gbps | 4:2:2 | 4:4:4 with DSC |
| 48 Gbps | 4:4:4 | 4:4:4 |
HDR Gaming: Marketing vs. Reality
Entry-level HDR400 certification meets basic brightness targets yet provides limited contrast because it lacks local dimming zones. Higher-tier certifications such as DisplayHDR 1000 or 1400 require hundreds of dimming zones and peak brightness above 1000 nits to deliver noticeable highlight pop in games like Spider-Man or Forza.
The VESA DisplayHDR performance criteria explain why HDR400 monitors often appear washed out next to Mini-LED models rated HDR1000 or HDR1400. In bright rooms, the extra luminance helps overcome ambient light; in darker rooms, local dimming becomes the larger factor for perceived quality.
Choosing Your Panel: Mini-LED vs. OLED for Consoles
Mini-LED panels reach 1400 nits peak brightness and resist burn-in from static HUDs, making them practical for long RPG or simulation sessions. OLED panels deliver near-instant response times and perfect black levels but can show raised blacks under direct window glare.
Budget Mini-LED models may exhibit backlight flicker during 30 fps or 60 fps cinematic content. OLED users trading brightness for motion clarity should verify warranty coverage for burn-in before committing to marathon single-player campaigns.
4K vs. 1440p: Finding the Value Sweet Spot
Both the PS5 and Xbox Series X now output 1440p with VRR, allowing 120 Hz or higher refresh rates on compatible displays. The sharper pixel density of 4K remains preferable when screen size reaches 27 inches or larger and when future console titles emphasize visual fidelity.
Players prioritizing maximum frame rates in competitive titles may accept 1440p for smoother motion, while those replacing a living-room TV often prefer the added detail of native 4K.
The Best KTC Monitors for PS5 and Xbox Series X in 2026

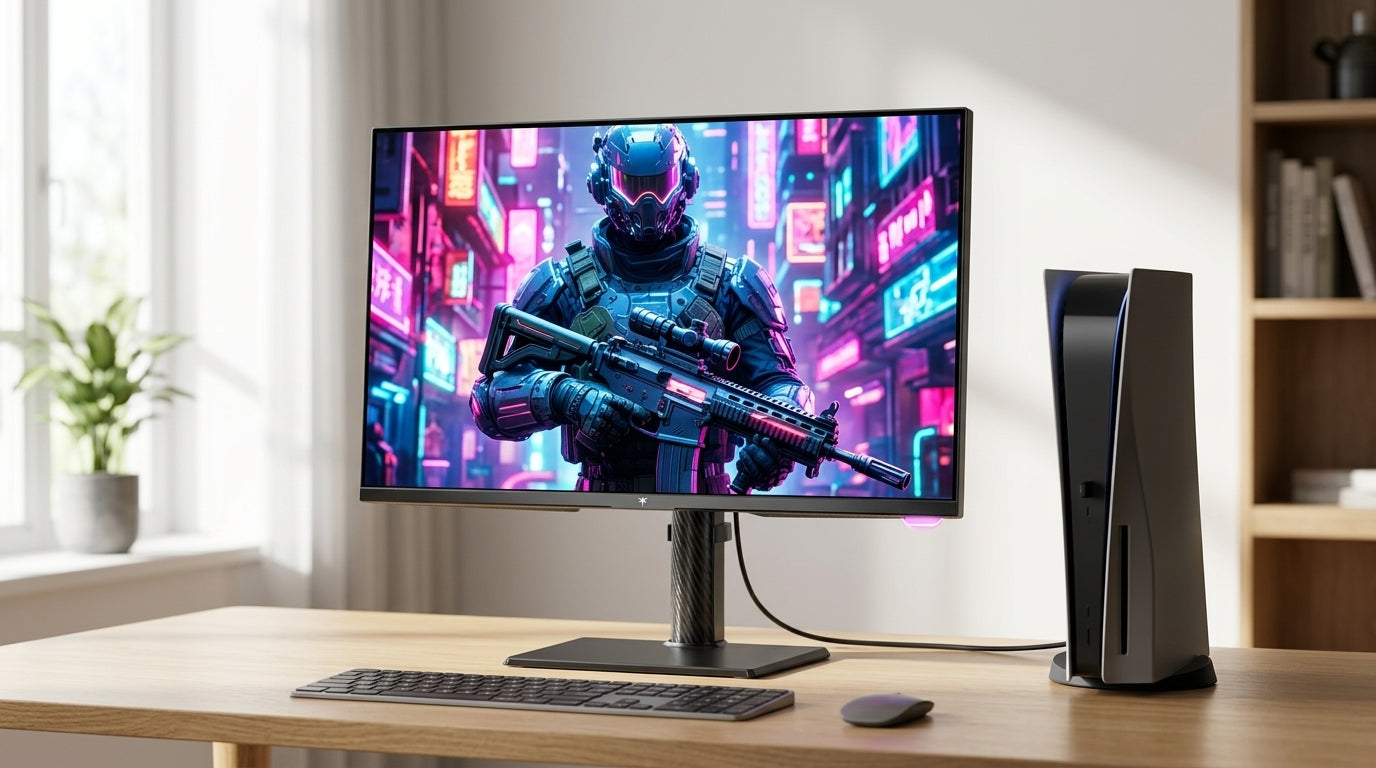

The M27P6 uses Mini-LED backlighting with 1152 dimming zones to reach HDR1400 brightness while maintaining full 4K 160 Hz HDMI 2.1 support. It suits bright-room setups where highlight intensity matters most.
The H27P6 offers dual-mode operation, switching between native 4K 160 Hz and 1080p 320 Hz on the same panel. This flexibility appeals to gamers who alternate between console sessions and competitive PC play.
The H27P22S delivers 4K 160 Hz with HDR400 at a lower price point for users who accept entry-level HDR performance. For larger desks, the H32P22P provides a 32-inch 4K 165 Hz canvas with height-adjustable ergonomics.
When selecting between these models, first confirm room lighting, preferred screen size, and whether static HUD burn-in risk is a concern. The Gaming Monitor collection lists current stock and detailed specifications for each option.
Common Questions About Console Gaming Monitors
Does Every HDMI 2.1 Monitor Support Full 4K 120 Hz on PS5?
No. Only ports rated above 32 Gbps typically avoid chroma subsampling on the PS5. Check the monitor specifications for the exact bandwidth rating before purchase.
Is HDR400 Bright Enough for a Bright Living Room?
HDR400 meets minimum certification but often lacks the contrast and peak luminance needed to overcome daylight glare. Mini-LED models rated HDR1000 or higher maintain better image impact in sunlit spaces.
Can I Use a Standard HDMI Cable for 4K 120 Hz?
Standard cables usually max out at HDMI 2.0 speeds. An Ultra High Speed certified cable rated for 48 Gbps is required to maintain full bandwidth on either console.
Will an OLED Monitor Show Burn-In With Console HUDs?
Static elements such as health bars or minimaps can create image retention over hundreds of hours. Many manufacturers now offer burn-in warranties, yet the risk remains higher than on Mini-LED or LCD panels.
Should I Choose 1440p or 4K for a 27-Inch Console Setup?
At 27 inches, 4K provides noticeably sharper detail that matches console output. If maximum refresh rate above 120 Hz is the priority, 1440p remains a reasonable compromise on current-generation hardware.
