A reliable USB-C KVM setup is usually about matching the whole signal chain, not just finding a monitor with USB-C. If your laptop, desktop, cables, and KVM do not agree on video, USB, and charging, you can still end up with blank screens, USB dropouts, or slower refresh rates.
Check Compatibility Before You Buy
Start with the three layers that matter most: the monitor input path, the KVM switching path, and the host port on each computer. A port labeled USB-C does not automatically carry video, data, and charging in the same way on every device, so the first check is whether each host actually supports the function you need.
On the laptop side, USB-C DisplayPort Alt Mode can trade data bandwidth for video bandwidth. In practical terms, USB-C dock limits often show up when the port or dock has to share lanes between video and USB data. Newnex's DisplayPort Alt Mode over USB-C explanation is useful here: one setup may still pass video but drop USB speed, while another may keep USB 3.x and limit video headroom.
For a hybrid desk, that means video, peripherals, and charging need separate verification. A laptop may charge but not output display over the same USB-C port. A desktop may be better off going straight in through DisplayPort or HDMI, even if the monitor also accepts USB-C. That split is normal.
The topology choice matters too. What is a KVM switch explains the basic trade-off: a built-in KVM can simplify cable management, while an external KVM can be easier to trust when display state needs to stay consistent across switches. In plain language, built-in KVM is often the cleaner desk, while an external KVM is often the safer choice when preserving display state matters more than cable simplicity.
That is why a USB-C KVM for work laptop and gaming PC is not a single universal recipe. If you want the fewest visible cables, built-in KVM can make sense. If you care more about predictable switching, an external KVM is often the better fit. The choice flips when your desk is sensitive to re-detection, icon rearrangement, or source hopping.
Before you buy, check the host-port spec first, then match the cable path to the display target. That is the difference between a reliable USB-C KVM setup with PD and a setup that only looks compatible on paper.

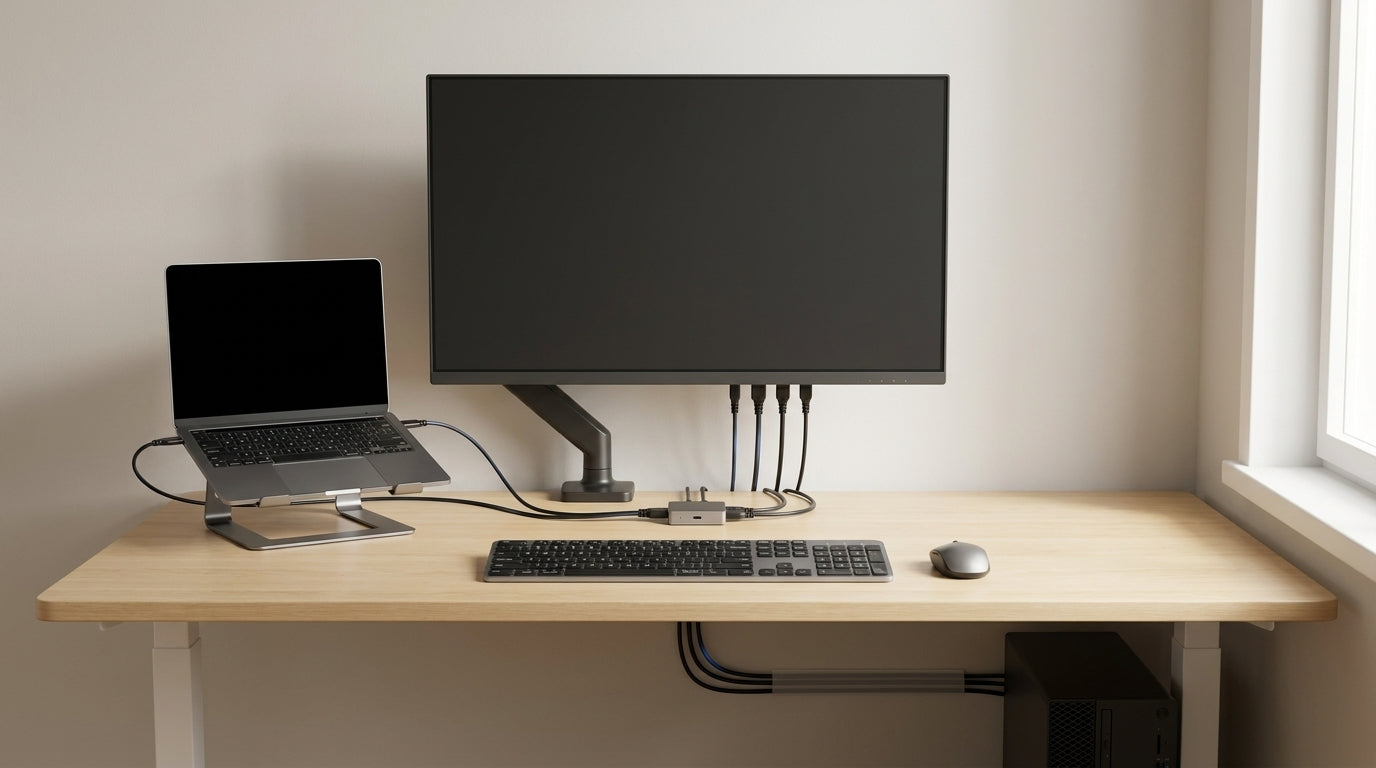

Wire the Hybrid Desk in the Right Order
Use a simple order so you can see where the failure starts. First connect the display path, then the USB path, then laptop charging. If you add everything at once, it becomes hard to tell whether the problem is the monitor input, the KVM, the host port, or the cable.
- Connect the monitor directly to one computer with the shortest known-good video cable you have.
- Confirm the monitor sees a stable image before turning on KVM switching.
- Add keyboard and mouse USB routing next, then test that they follow the active computer.
- Add USB-C power delivery last, after the display path is already stable.
- Only then add docks, adapters, or extension cables if they are truly needed.
For the first pass, known-good cables matter more than fancy cable bundles. The signal cables page is a useful place to check matching HDMI, DisplayPort, and USB-C options if you want a cleaner one-cable or two-cable path. A cable can still be the weak link even when the monitor and KVM are fine.
A common mistake is assuming every adapter adds only convenience. In reality, each extra hop can add another point of failure, especially when the laptop path uses USB-C and the desktop uses DisplayPort or HDMI. Keep the first build boring.
Set the Monitor for Stable Switching
For most hybrid desks, start at a stable baseline before you chase the highest refresh setting. The H27P6's manual guidance uses 1920 x 1080 at 60Hz as a safe first test when a signal is unstable, and that is a good diagnostic habit even if your final goal is much higher refresh.
That does not mean 60Hz is the goal. It means you are proving the path first. Once the picture is stable, you can raise resolution and refresh one step at a time. If the image disappears as soon as you raise the mode, the bottleneck is usually in the path, not the panel spec.
A higher-refresh monitor makes the most sense when the desktop side is the performance priority and the laptop only needs a reliable work path. The 4K 160Hz/320Hz monitor is a natural fit example for that kind of hybrid desk because it combines 4K productivity with a higher-speed gaming mode and 90W USB-C PD. That said, those top modes still depend on the host GPU, the cable, and the exact input path.
The other end of the spectrum is a wide desktop-first setup like the 49-inch super ultrawide, which includes USB-C PD 90W and built-in KVM. That kind of display can suit multitasking-heavy desks, but it is not automatically the right answer if your laptop port, desk depth, or cable routing is limited.
This is where the recommendation flips. If you want a cleaner laptop dock-like experience, a USB-C PD monitor can be a strong fit. If you want the display state to stay steadier during switching, you may prefer a separate KVM and a more direct video path.
Fix the Usual Failure Points
When a USB-C KVM misbehaves, fix the layers in the order they tend to fail.
- No signal after switching usually means the display path or active input is wrong. Check the monitor input first, then reconnect the direct video path before blaming the KVM.
- USB keyboard or mouse drops out while the image stays stable often points to USB power management. Puget Systems notes that USB selective suspend can power down the hub in a KVM path, so this is one of the first fixes worth testing.
- The monitor keeps hopping inputs can be a monitor auto-select issue rather than a broken KVM. In that case, disable auto source detection or auto input switch in the monitor menu and test again. monitor input switching issues are often signal-detection problems, not a true hardware fault.
- The desktop layout resets or the screen comes back black may point to EDID behavior. EDID detection is worth checking when the display identity seems to change every time you switch computers.
- Refresh falls back lower than expected often means the path cannot carry the full mode you asked for. That can happen because of bandwidth limits, cable quality, or a port mismatch.
A useful decision sentence here is simple: if video is stable but peripherals are not, treat it as a USB issue; if peripherals are stable but the screen is not, treat it as a video issue; if both fail after switching, suspect the handshake or input path first.
Use This Buying Checklist
Before you choose a USB-C KVM setup, verify these five things:
- Laptop USB-C capability: confirm whether the port supports video output, charging, or both.
- Desktop video path: decide whether the desktop should use HDMI, DisplayPort, or USB-C.
- Monitor switching method: choose built-in KVM for simplicity or external KVM for more predictable switching.
- Cable quality and length: start with known-good cables and keep the first build as direct as possible.
- Your real priority: decide whether the desk leans more toward gaming speed, office stability, or a balance of both.
If your main goal is work-first stability, browse office monitor options. If you want to compare higher-refresh panels for a gaming-leaning desk, gaming monitor options are the better browse path. For buyers comparing price-sensitive choices, current deals can be a reasonable final step once the required ports and modes are already clear.
The practical rule is this: do not buy for the advertised refresh number alone. Buy for the exact host-port mix, the cable path, and the way you want the desk to switch. That is what separates a clean USB-C KVM from a setup that keeps needing another round of troubleshooting.
FAQs
How Do I Know Whether My Laptop USB-C Port Supports Video and Charging?
Check the laptop's port spec separately for display output and power delivery. USB-C can mean charging only, data only, or video plus charging, depending on the device. If the spec is unclear, assume nothing and verify before buying a KVM or monitor.
What Causes a USB-C KVM to Show No Signal After Switching?
The most common causes are the wrong input, a weak cable, an inactive host output, or a handshake problem after switching. Start by reconnecting one direct video path and confirming the monitor sees that source before adding the USB and charging paths back in.
Can One USB-C Cable Handle Video, Charging, and Peripherals at the Same Time?
Sometimes, but not always. The answer depends on the laptop port, the monitor or KVM design, and the cable. If one part of the chain does not support the function, the setup may still work partially but not as a true single-cable hybrid desk.
Why Does High Refresh Rate Drop to 60Hz Through a KVM?
Usually because the path cannot carry the full mode, or the host and cable do not agree on it. A lower refresh setting is often a sign that you should check the input path, cable type, and port support before assuming the monitor is at fault.
Can a Built-In KVM Be More Reliable Than an External KVM?
It can be simpler, but not automatically more reliable. Built-in KVM can reduce cable clutter, while external KVM can be easier to trust when switching stability and display-state consistency matter more than a cleaner back panel.
What Is the Safest First Test If My New Setup Is Unstable?
Use a direct connection and a conservative baseline such as 1920 x 1080 at 60Hz, then add the KVM and higher modes one step at a time. That keeps the failure layer visible and prevents you from changing too many variables at once.
Final Takeaway
The best USB-C KVM setup is the one that matches your host ports, your cable path, and your real desk priority. If you want the cleanest desk, built-in KVM can work well. If you want the most predictable switching, external KVM and direct video paths are often safer. Start simple, verify each layer, and only then tune for higher refresh or single-cable convenience.
