How to Reduce HDMI Handshake Delay When Switching Inputs on Multi-Console Setups

The fastest way to reduce HDMI handshake delay is to keep the video signal consistent, simplify the HDMI chain, and use hardware that preserves EDID correctly. For multi-console desks and entertainment setups, that usually means fixed resolution and refresh settings, certified cables, stable switchers, updated firmware, and fewer unnecessary format changes.

Is your screen going black for 5 to 15 seconds every time you jump from one console to another, a handheld console, or a gaming PC? In real setups, the biggest practical win is reducing the number of times your monitor or TV has to resync to a new video format. This guide explains the settings, wiring choices, and tradeoffs that can cut switching delays without hurting image quality.

What HDMI Handshake Delay Really Is

An HDMI handshake is the startup conversation between your console, switcher, receiver, and display. During that exchange, devices confirm supported video formats, audio formats, and copy-protection requirements; when that negotiation stalls, you can see a black screen, flicker, no sound, or repeated reconnects because the HDMI handshake has not settled cleanly.

In a single-console setup, the handshake path is simple: console to display. In a multi-console setup, the path may be console to HDMI switch, switch to capture card, capture card to AV receiver, and receiver to monitor or TV. Every extra device adds another point where EDID, HDCP, bandwidth, or timing can go wrong.

EDID, or Extended Display Identification Data, tells the source what the display can handle. HDCP, or High-bandwidth Digital Content Protection, verifies protected content rights. When an HDMI switch or receiver reports EDID poorly, or when one device supports HDCP 2.2 while another behaves reliably only with older protection modes, the source may renegotiate, fall back, or fail.

The Main Cause: Too Many Signal Changes

Handshake delay is not always a bad-cable problem. A common cause is the display resyncing because the incoming signal changed. Resolution, refresh rate, SDR, HDR, VRR, and color format changes can all force a new sync; experienced users often point out that fixed output can reduce many display resyncs while native output tends to trigger more of them.

Here is the practical example. If one console dashboard is 4K 60Hz SDR, a game launches in 4K 120Hz HDR with VRR, and your monitor’s other input was last used by a handheld console at 1080p 60Hz, the display may need to renegotiate format, refresh behavior, and HDR mode every time. That delay feels like input switching lag, but it is really repeated format negotiation.

The most reliable fix is to reduce unnecessary mode changes. Set each console to the highest common format your display handles well, then avoid automatic switching features that create unstable combinations. For a 4K 120Hz gaming monitor, that may mean enabling 4K 120Hz on compatible consoles, configuring HDR consistently, and using VRR only if the display supports it cleanly across the HDMI port you are using.

Fixed Output vs Native Output

Fixed output is the performance-driven choice when switching speed matters. Native output is the purist choice when you want the source to pass each game or app in its original format.

For gaming monitors, fixed output usually feels better because the display stays in a predictable mode. For projectors, the improvement can be even more noticeable because projector resync can take far longer than many flat-panel displays; users report projector delays in the rough range of 10 to 15 seconds or more when formats change.

Build a Shorter, Cleaner HDMI Chain

A multi-console setup should be wired like a performance path, not a maze. The fewer devices between console and display, the fewer chances you have for EDID corruption, HDCP mismatch, or timing failure. Troubleshooting advice often emphasizes understanding the full signal flow before applying fixes because similar symptoms can come from different parts of the HDMI chain.

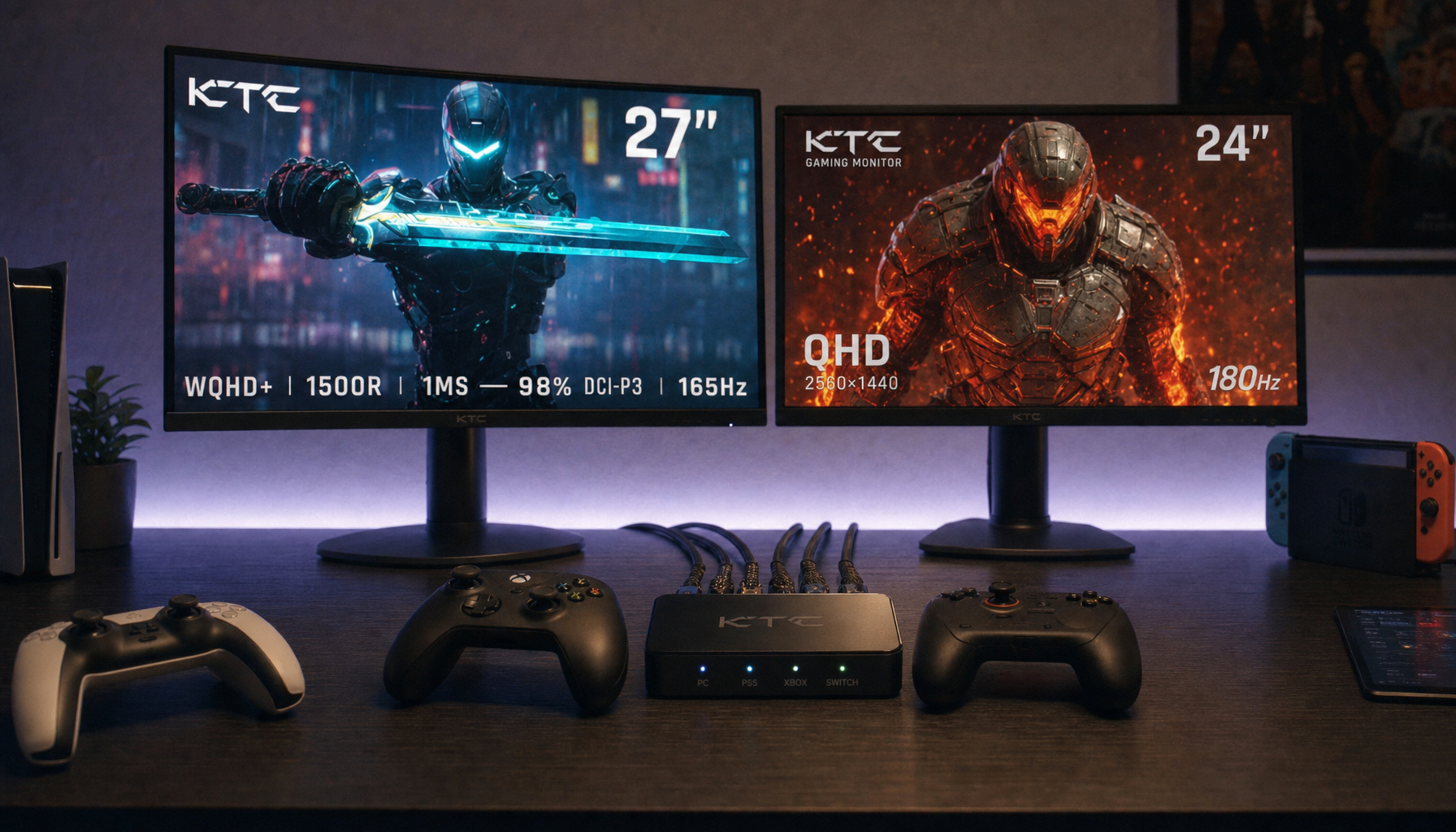

For a desk setup, the cleanest path is console to HDMI switch to monitor. If you stream or record, console to HDMI switch to capture card to monitor can work, but the capture card must support the same resolution, refresh rate, HDR, VRR, and HDCP behavior you expect. If it does not, it becomes the weakest link.

For a living room setup, source to AVR to TV can be more stable than routing everything into the TV and sending audio back through ARC or eARC. A direct forward HDMI path can simplify timing and handshakes, while ARC/eARC adds a return path that may create extra negotiation in some systems; a direct forward HDMI path is strongest when audio performance and sync matter.

Choose Switchers With EDID Control

Cheap HDMI switches often work fine at 1080p 60Hz, then struggle when you ask for 4K 120Hz, HDR, or mixed console behavior. A better switch does more than change ports. It maintains stable EDID, supports the bandwidth you need, and avoids making your console think the display disappeared every time you switch away.

If your gaming PC rearranges windows when you change inputs, or your console drops HDR until you reboot it, the switch may not be preserving display identity correctly. In those cases, an HDMI switch, splitter, or EDID emulator with selectable EDID can stabilize the setup. Real-world troubleshooting notes describe using an HDMI splitter with EDID management to work around handshake instability caused by a difficult device combination, making EDID mismatches a credible suspect when symptoms follow the chain rather than one console.

The downside is cost and complexity. EDID control hardware adds another box, another power adapter, and another setup screen. The upside is reliability, especially if you are mixing consoles, a PC, a capture card, and a TV or projector.

Use the Right Cable, But Do Not Over-Blame the Cable

Cables matter most when the signal is demanding. 4K, HDR, high refresh rates, and longer runs expose weak HDMI cables quickly. Troubleshooting guidance notes that older or low-bandwidth cables can fail with modern formats and recommends certified HDMI 2.1 or Premium High Speed cables for modern formats such as 4K, HDR, and gaming setups.

For a monitor arm or console shelf, a 6 ft certified cable is usually smarter than a random 15 ft cable coiled behind a cabinet. For longer runs, HDMI problems can begin once cable length gets beyond roughly 15 to 25 ft, especially at higher bandwidth. If your display is across the room, consider an active HDMI cable, HDMI extender, or AV-over-IP solution instead of stretching a passive cable to its limit.

Still, a cable will not fix every handshake delay. If the black screen happens only when HDR turns on, or only when switching from 60Hz to 120Hz, the root cause is probably format negotiation, not simple cable failure. Swap the cable as a test, but do not stop there.

Set Consoles and Displays for Stability

Start with the display. Enable Game Mode or the monitor’s low-latency mode, because extra image processing can add delay after the signal arrives. TV input lag comes from acquisition, processing, and display stages, and Game Mode often cuts processing delay by reducing enhancements such as scaling or motion processing in the display pipeline.

Then tune each console. On current-generation consoles, match the resolution and refresh rate to your display’s real capabilities. If the monitor is a 1440p 120Hz panel, do not force a 4K signal through a switch that barely handles it. If your TV has one HDMI 2.1 port and several older HDMI ports, plug the high-refresh console into the correct one.

For HDR, decide whether the better experience is automatic accuracy or faster switching. Automatic HDR modes can look excellent, but they may trigger extra resyncs. If you mainly play competitive titles, a stable 120Hz SDR or calibrated HDR mode may be more useful than constantly waiting for the screen to renegotiate.

Power Order and Firmware Still Matter

Handshake timing can fail when devices wake up out of order. Power and timing issues can occur when devices boot out of sync, causing negotiation to start too early and mismatch. In practice, that means your switch may wake before the display is ready, or a console may read incomplete EDID from a receiver that is still booting.

A reliable power sequence is display first, then switcher or AVR, then console. If you use smart plugs or a power strip, avoid powering the whole stack at the exact same instant. Give the display a few seconds to become ready before waking the console.

Firmware is also worth checking. Update firmware across the signal chain, starting with the source, then intermediate electronics, then the display, because handshake issues can come from outdated timing or compatibility behavior in distribution hardware.

A Practical Troubleshooting Method

Do not troubleshoot everything at once. Connect one console directly to the display with a certified short cable and test switching modes. Then add the HDMI switch. Then add the capture card, AVR, splitter, or extender one piece at a time. When the delay returns, you have found the section that deserves attention.

If lowering the output from 4K 120Hz HDR to 1080p 60Hz makes the problem disappear, the chain is probably bandwidth-limited or format-limited. If the problem follows one console across every port and cable, inspect that console’s video settings. If the problem appears only through the AVR or eARC port, the issue may be that intermediate device or return-audio behavior rather than the console.

FAQ

Can an HDMI switch be truly instant?

Usually no. A switch can be fast, but the display may still need to authenticate HDCP, read EDID, and resync to the incoming format. The best goal is not zero delay, but predictable switching with fewer full black-screen renegotiations.

Does HDMI 2.1 automatically reduce handshake delay?

Not by itself. HDMI 2.1 gives more bandwidth for 4K 120Hz, VRR, and other advanced features, but delay still depends on cable quality, EDID handling, display processing, firmware, and how often the signal format changes.

Should I disable CEC?

If devices power on unexpectedly, switch inputs by themselves, or become unstable, disabling CEC is a reasonable test. HDMI-CEC can contribute to flickering or signal drops in some setups, so it is useful convenience technology, not mandatory performance technology.

Final Word

For a multi-console setup that feels premium, make the HDMI path predictable: stable formats, short certified cables, capable switches, updated firmware, and fewer devices in the middle. The less your screen has to renegotiate, the faster you get back to the match, the menu, or the next console without staring at a black screen.
